How to contribute to main toolbar using Eclipse 4? [message #1781324]

Tue, 06 February 2018 05:53

Jash Dave

Messages: 2
Registered: February 2018

Junior Member

How to add toolitem to main toolbar (eclipses toolbar) using Eclipse 4 (Application.e4xmi/Fragment.e4xmi)?

I am trying to add a toolbar button using Eclipse 4 but I cannot figure out how to do it. I searched a lot and I could only find examples on RCP toolbar.

I tried many combinations of Extended Element ID (org.eclipse.ui.main.toolbar, org.eclipse.e4.legacy.ide.application) and Feature (children, menuContributions), also tried giving parent ID to Menu Contribution but nothing works. Can anybody please help me? Thanks in advance.

I am using Version: Neon.3 (4.6.3) Build id: M20170301-0400

In eclipse 3 I did it with
<extension
point="org.eclipse.ui.menus">
<menuContribution
allPopups="false"
locationURI="toolbar:org.eclipse.ui.main.toolbar">
<toolbar
id="com.example.toolbar">
<command
commandId="com.example.mycommand"
icon="src/main/resources/icons/toolbar.png"
style="push"
tooltip="MyToolTip">
</command>
</toolbar>
</menuContribution>
</extension>

Report message to a moderator

Re: How to contribute to main toolbar using Eclipse 4? [message #1834154 is a reply to message #1781324]

Wed, 04 November 2020 00:47

Wim Jongman

Messages: 463
Registered: July 2009

Senior Member

It is easy and straightforward.

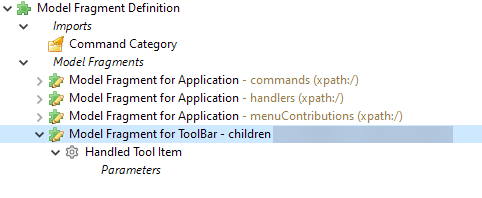

In the fragment add a model fragment for Toolbar, set as parent the id of the toolbar in the part and add a handled toolitem

Attachment: eclipse_qjvOSaxbzH.png
(Size: 13.63KB, Downloaded 45 times)

Report message to a moderator
