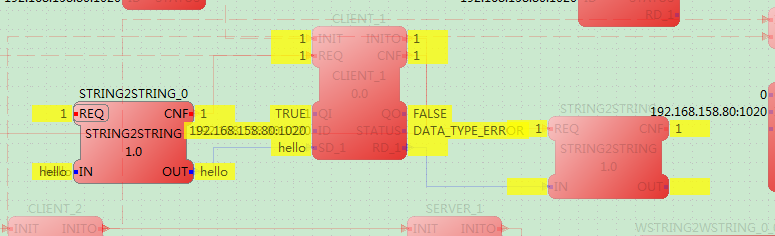

hi, I have a problem in using CLIENT and SERVER FBs. Both of them can send msg successfully , however, when I sent msg to them they always appear DATA_TYPE_ERROR as followed picture. The data type of RD_1 is ANY.
So what should the msg received like? or how to solve this problem?
thankyou!

Attachment: server-client datatypeError.png
(Size: 55.75KB, Downloaded 78 times)

Report message to a moderator

Re: problems in using client and server [message #1779958 is a reply to message #1779957]

Tue, 16 January 2018 08:31

Martin Melik-Merkumians

Messages: 103
Registered: March 2016

Senior Member

You need to typify ANY outputs, because the FB does not now which type the ANY out will have. The solution is therefore to connect a TYPE2TYPE FB of the desired type at the outputs of the SERVER and CLIENT FBs

Cheers,
Martin

Report message to a moderator

Re: problems in using client and server [message #1779959 is a reply to message #1779958]

Tue, 16 January 2018 08:36

Barry wan

Messages: 40
Registered: July 2017

Member

Martin,
thank you for your reply in time.
it works now.

Report message to a moderator

Re: problems in using client and server [message #1779960 is a reply to message #1779957]

Tue, 16 January 2018 08:36

Jose Maria Jesus Cabral Lassalle

Messages: 199
Registered: February 2016

Senior Member

You need to connect some FB with a defined type (not something that has "any") to your RD_* and SD_* to let the runtime know what type it should use.

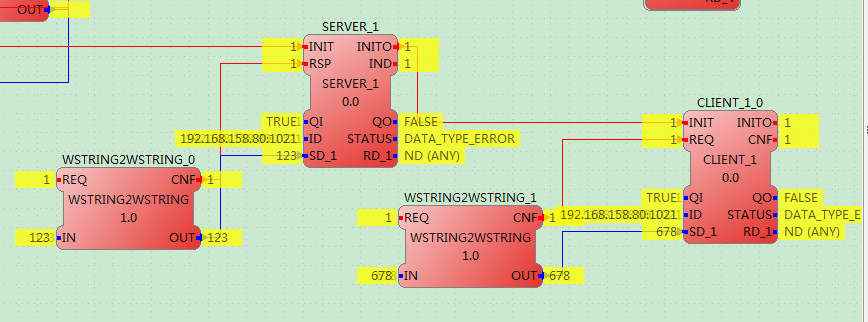

In your case, it looks like you are testing the client and server FBs. I would recommend to put another WSTRING2WSTRING FB for each RD_1 (one for the client, and one for the server) and then connect the RD_1 to the IN data input of the corresponding WSTRING2WSTRING. You could also connect the IND to the REQ to see the value also in the WSTRING2WSTRING.

Report message to a moderator

Re: problems in using client and server [message #1779963 is a reply to message #1779960]

Tue, 16 January 2018 08:53

Barry wan

Messages: 40
Registered: July 2017

Member

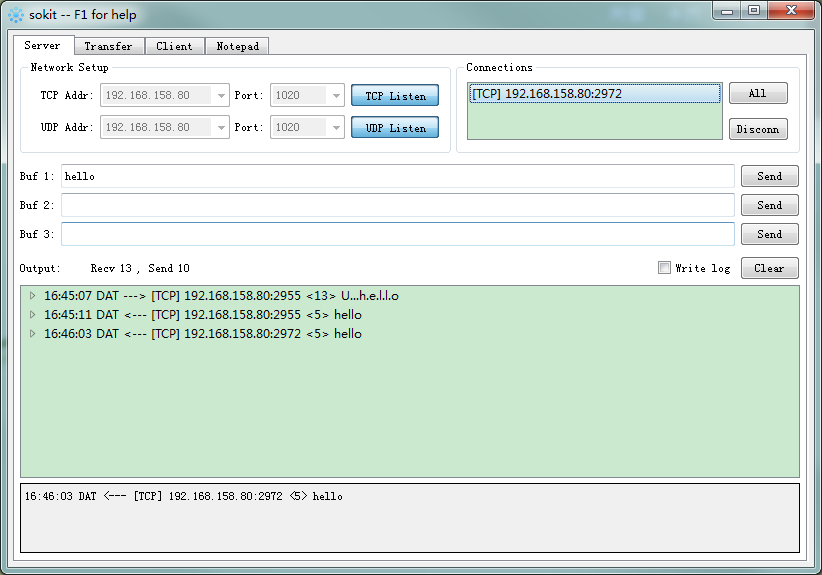

Thank you for your help, it is worked both server and client are used in 4diac environment . But when I use the third socket test tools as server, clientFB in 4diac as client, the same Error appears as followed.
client in 4diac send "hello" and the server can recieve, however, the client can not.

Attachment: 4diacClient.png
(Size: 46.65KB, Downloaded 89 times)
Attachment: sockTester.png
(Size: 41.50KB, Downloaded 73 times)

Report message to a moderator

Re: problems in using client and server [message #1779989 is a reply to message #1779963]

Tue, 16 January 2018 12:12

Alois Zoitl

Messages: 1224
Registered: January 2014

Senior Member

The problem is that the packet you are responding does not conform to the Compliance Profile for Feasibility Demonstration's ASN.1 format [1]. Please have a look there on how a packet needs to be structured.

[1] http://www.holobloc.com/doc/ita/index.htm

Report message to a moderator
