Home » Eclipse Projects » Sirius » Widget: Text(How can I get the value Expression)

Wed, 15 November 2017 09:12

Eclipse User

Hi,

I would like to work more with the "open Dialog" in a Table representation.

Specially with the widget "Text". Therefor I want to use the value I enter in the TextBox, to set the value of a certain cell from there.

For now I work with the JOptionPane.showInputDialog() to set the value of the cell via the (JavaCode) Service. (which doesnt look that good)

My Problem is, I dont know how to handle/adress the "value" of the "Text".

I would like to have somthing like:

TextBox ( value: This is the Text I enter)

Button(click me)
begin
Change context (var:self)
set ( Feature column: Name
Value Expression: THE TEXT I ENTERED EARLIER)

how can I do that?

Thanks a lot

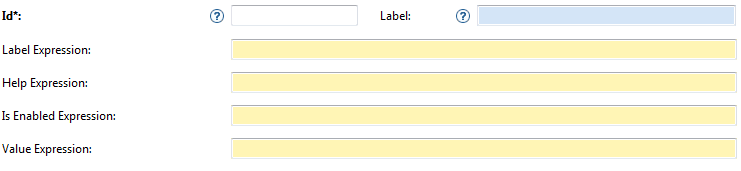

Attachment: 2017-11-15 15_01_24-.png
(Size: 10.52KB, Downloaded 131 times)
Attachment: 2017-11-15 15_06_08-runtime-EclipseApplication - SafetyTool.design_description_SafetyTool.odesign - .png
(Size: 4.59KB, Downloaded 145 times)

Re: Widget: Text [message #1776354 is a reply to message #1776348]

Wed, 15 November 2017 10:36

Eclipse User

Hello,

The value entered in the text widget is set in a variable "newValue". Therefore under the "Change Context" operation, you need to add a set operation where value expression is "newValue". You can find more information about Text widgets here: https://www.eclipse.org/sirius/doc/specifier/properties/Properties_View_Description.html#text

Regards,
Steve

Re: Widget: Text [message #1776405 is a reply to message #1776354]

Thu, 16 November 2017 03:32

Eclipse User

Perfect, thanks a lot :)
