Home » Modeling » Papyrus » Multiplicities and Navigability package diagram sysml(Mutliplicities and Navigability in package diagram)
Multiplicities and Navigability package diagram sysml [message #1774763] Thu, 19 October 2017 12:55 Go to next message
Maxime Defrances is currently offline Maxime DefrancesFriend
Messages: 5
Registered: October 2017
Junior Member
Hello,
I'm am trying to set multiplicities and navigabilities between my packages in my packages diagram.

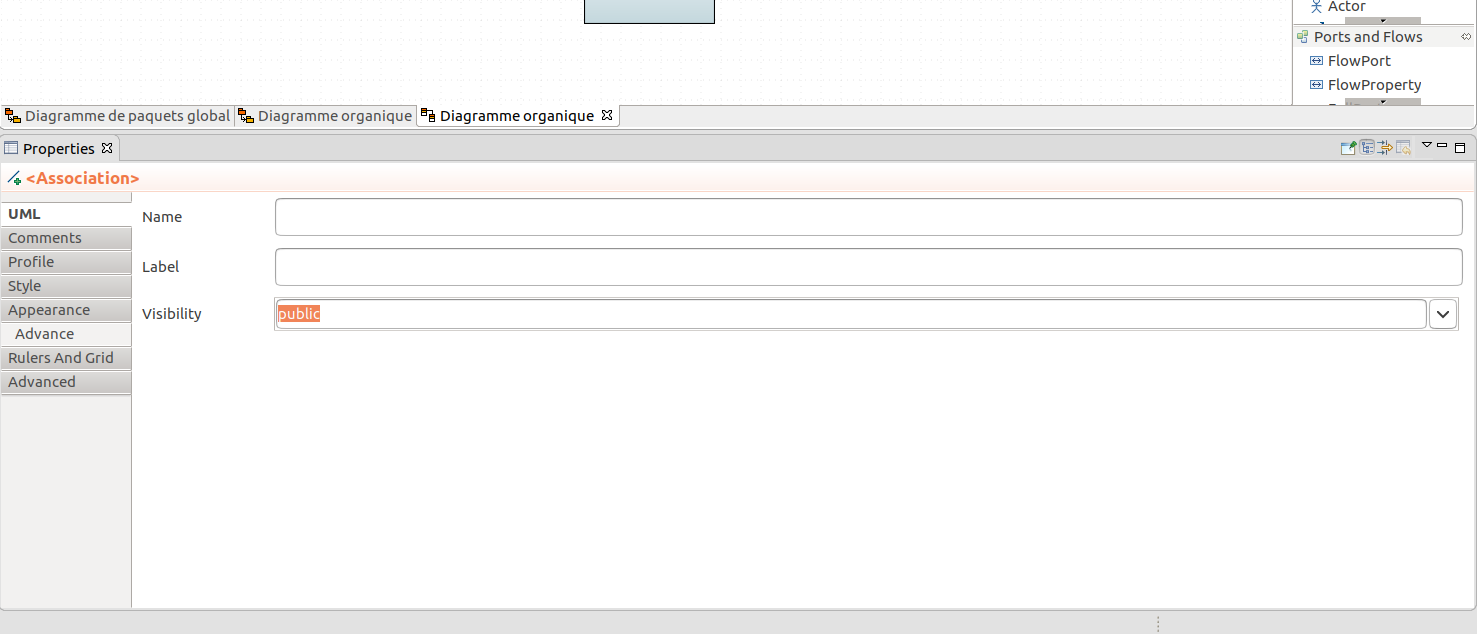

I looked on other topics, some people could set multiplicities in the properties ("UML" tab)
I don't have this parameter, I looked for it but I couldn't find it.

I'm running Papyrus RCP Oxygen (3.2.0) nightly () on Ubuntu 17.04

Thanks for reading

[Updated on: Thu, 19 October 2017 13:27]

Report message to a moderator

Re: Multiplicities and Navigability package diagram sysml [message #1774827 is a reply to message #1774763] Fri, 20 October 2017 07:37 Go to previous message
Benoit Maggi is currently offline Benoit MaggiFriend
Messages: 129
Registered: March 2013
Location: Bordeaux, France
Senior Member
Hi,

Properties for multiplicity should be present.
My guess, your association is missing proper member ends.
(your model should be invalid)

My advice, don't use nightly but prefer stable versions.

Regards,
Benoit
