Home » Modeling » Papyrus » Using 2 different Papyrus statemachines with the spring-statemachine project(I'm trying to use 2 different Papyrus statemachines with the spring-statemachine project)
Using 2 different Papyrus statemachines with the spring-statemachine project [message #1772804] Fri, 15 September 2017 13:19 Go to next message
Joerg L is currently offline Joerg LFriend
Messages: 2
Registered: September 2017
Junior Member

Link to the project on github for testing
The Payprus Files are here in the github projcect

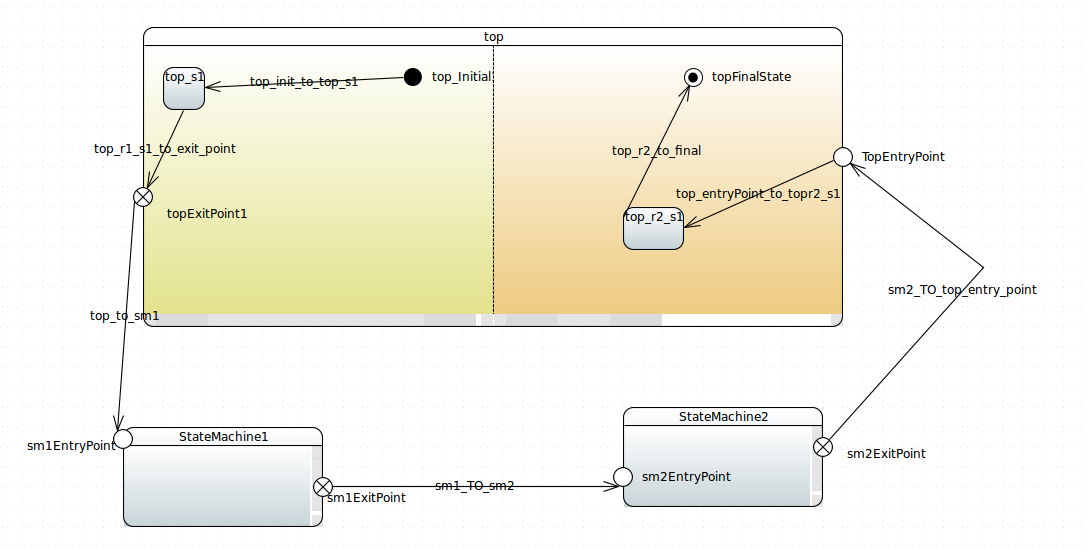

I'm trying to make a State-Machine with Papyrus. The State Machine should combine two single state-machines to one, as you can see in the first image:
index.php/fa/30754/0/

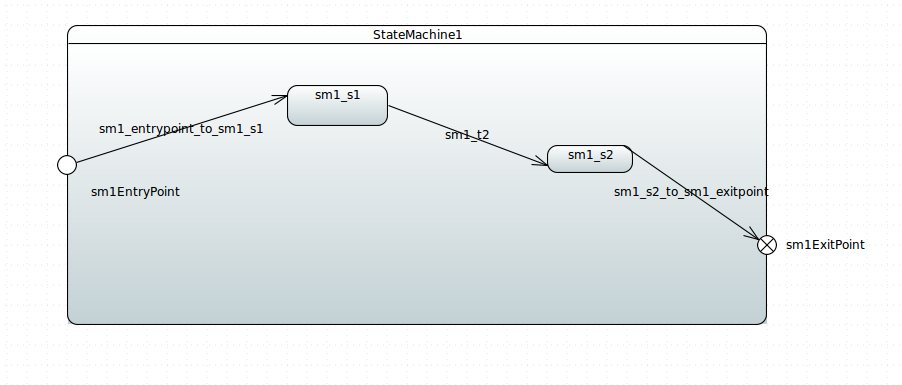

State Machine 1 and State Machine 2 are looking similar but everything beginning with SM2_ instead of SM1_
index.php/fa/30758/0/
https://i.stack.imgur.com/ecp5d.png
I'm consuming the UML with my spring application (scroll down for code)

I tried this with a real simple single state machine (so only something like state machine 1 but with initial and final point) and it worked perfectly, the `System.out.println()` was writing the whole code.

But with this 2 state machines, the machine starts in the TOP at the top_inital point and goes then to top_s1. This was expected and working

Than i expected to go over the topExitPoint1 to the sm1EntryPoint -> entering the StateMachine1 -> than to StateMachine2 -> back to top and so on.

But unfortunately the only state in my machine which was used has been the one in top -> the top_s1 state.
The console log only shows me this:

2017-09-14 17:41:42.002  INFO 25414 --- [           main] o.s.j.e.a.AnnotationMBeanExporter        : Registering beans for JMX exposure on startup
    2017-09-14 17:41:42.008  INFO 25414 --- [           main] o.s.c.support.DefaultLifecycleProcessor  : Starting beans in phase 0
    State change to top_s1
    2017-09-14 17:41:42.070  INFO 25414 --- [           main] o.s.s.support.LifecycleObjectSupport     : started org.springframework.statemachine.support.DefaultStateMachineExecutor@4afd21c6
    2017-09-14 17:41:42.070  INFO 25414 --- [           main] o.s.s.support.LifecycleObjectSupport     : started top_s1 topFinalState top_r2_s1 top_s2 top_FinalState1 sm2_s1 sm2_s2 sm1_s2 sm1_s1  / top_s1 / uuid=e3a76fb9-5d3f-46b2-9c01-17d23eabedea / id=null
    2017-09-14 17:41:42.071  INFO 25414 --- [           main] d.j.u.UmlSpringStateMachineApplication   : Started UmlSpringStateMachineApplication in 2.584 seconds (JVM running for 2.85)
    2017-09-14 17:41:42.073  INFO 25414 --- [       Thread-3] s.c.a.AnnotationConfigApplicationContext : Closing org.springframework.context.annotation.AnnotationConfigApplicationContext@1e4a7dd4: startup date [Thu Sep 14 17:41:39 CEST 2017]; root of context hierarchy
    2017-09-14 17:41:42.076  INFO 25414 --- [       Thread-3] o.s.c.support.DefaultLifecycleProcessor  : Stopping beans in phase 0
    2017-09-14 17:41:42.077  INFO 25414 --- [       Thread-3] o.s.s.support.LifecycleObjectSupport     : stopped org.springframework.statemachine.support.DefaultStateMachineExecutor@4afd21c6
    2017-09-14 17:41:42.078  INFO 25414 --- [       Thread-3] o.s.s.support.LifecycleObjectSupport     : stopped top_s1 topFinalState top_r2_s1 top_s2 top_FinalState1 sm2_s1 sm2_s2 sm1_s2 sm1_s1  /  / uuid=e3a76fb9-5d3f-46b2-9c01-17d23eabedea / id=null
    2017-09-14 17:41:42.078  INFO 25414 --- [       Thread-3] o.s.j.e.a.AnnotationMBeanExporter        : Unregistering JMX-exposed beans on shutdown
    2017-09-14 17:41:42.079  INFO 25414 --- [       Thread-3] o.s.s.support.LifecycleObjectSupport     : destroy called


I tried so many things in Papyrus to change this behaviour, but nothing changes.
Would be cool, if someone can have a look to it, and maybe knows how to help.


Here is the Java Code: My `UmlSpringStateMachineApplication`
    package de.joergi.umlspringstatemachine;

    import org.springframework.beans.factory.annotation.Autowired;
    import org.springframework.boot.CommandLineRunner;
    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import org.springframework.statemachine.StateMachine;

    @SpringBootApplication
    public class UmlSpringStateMachineApplication implements CommandLineRunner {

    	@Autowired
    	private StateMachine<String, String> stateMachine;

    	public static void main(String[] args) {
    		SpringApplication.run(UmlSpringStateMachineApplication.class, args);
    	}

    	@Override
    	public void run(String... args) throws Exception {
    		stateMachine.start();
    	}
    }


and my `StateMachineConfig` looks like this:
    package de.joergi.umlspringstatemachine;

    import org.springframework.context.annotation.Bean;
    import org.springframework.context.annotation.Configuration;
    import org.springframework.statemachine.config.EnableStateMachine;
    import org.springframework.statemachine.config.StateMachineConfigurerAdapter;
    import org.springframework.statemachine.config.builders.StateMachineConfigurationConfigurer;
    import org.springframework.statemachine.config.builders.StateMachineModelConfigurer;
    import org.springframework.statemachine.config.model.StateMachineModelFactory;
    import org.springframework.statemachine.listener.StateMachineListener;
    import org.springframework.statemachine.listener.StateMachineListenerAdapter;
    import org.springframework.statemachine.state.State;
    import org.springframework.statemachine.uml.UmlStateMachineModelFactory;

    @Configuration
    @EnableStateMachine
    public class StateMachineConfig extends StateMachineConfigurerAdapter<String, String> {

        @Override
        public void configure(StateMachineConfigurationConfigurer<String, String> config) throws Exception {
            config.withConfiguration().autoStartup(false).listener(listener());
        }

        @Override
        public void configure(StateMachineModelConfigurer<String, String> model) throws Exception {
            model.
                withModel().factory(modelFactoryStateMachine());
        }

        @Bean
        public StateMachineModelFactory<String, String> modelFactoryStateMachine() {
            return new UmlStateMachineModelFactory("classpath:papyrus/new_test.uml");
        }

        @Bean
        public StateMachineListener<String, String> listener() {
            return new StateMachineListenerAdapter<String, String>() {
                @Override
                public void stateChanged(State<String, String> from, State<String, String> to) {
                    System.out.println("State change to " + to.getId());
                }
            };
        }
    }



If you want to see how the model explorer looks like:
https://i.stack.imgur.com/mlkfb.png


P.S. this is also posted on Stack Overflow, but with no answers yet
  • Attachment: top.png
    (Size: 57.83KB, Downloaded 193 times)
  • Attachment: new_test.di
    (Size: 0.27KB, Downloaded 15 times)
  • Attachment: new_test.notation
    (Size: 51.66KB, Downloaded 24 times)
  • Attachment: new_test.uml
    (Size: 4.88KB, Downloaded 16 times)
  • Attachment: sm1.png
    (Size: 23.21KB, Downloaded 211 times)

[Updated on: Fri, 15 September 2017 13:23]

Report message to a moderator

Re: Using 2 different Papyrus statemachines with the spring-statemachine project [message #1773422 is a reply to message #1772804] Wed, 27 September 2017 16:48 Go to previous message
Joerg L is currently offline Joerg LFriend
Messages: 2
Registered: September 2017
Junior Member

So, i fixed this, with building two separate State-Machines together in one project and connecting them https://github.com/joergi/uml-spring-state-machine/ see the new push to master

[Updated on: Wed, 27 September 2017 16:48]

Report message to a moderator
