Home » Modeling » Papyrus » How to creat Block Instance(Problem of finding a proper way to creat Block Instance in the Block Definition Diagram)
How to creat Block Instance [message #1772564] Tue, 12 September 2017 13:39
Qi Nie is currently offline Qi NieFriend
Messages: 1
Registered: September 2017
Junior Member
Hello,

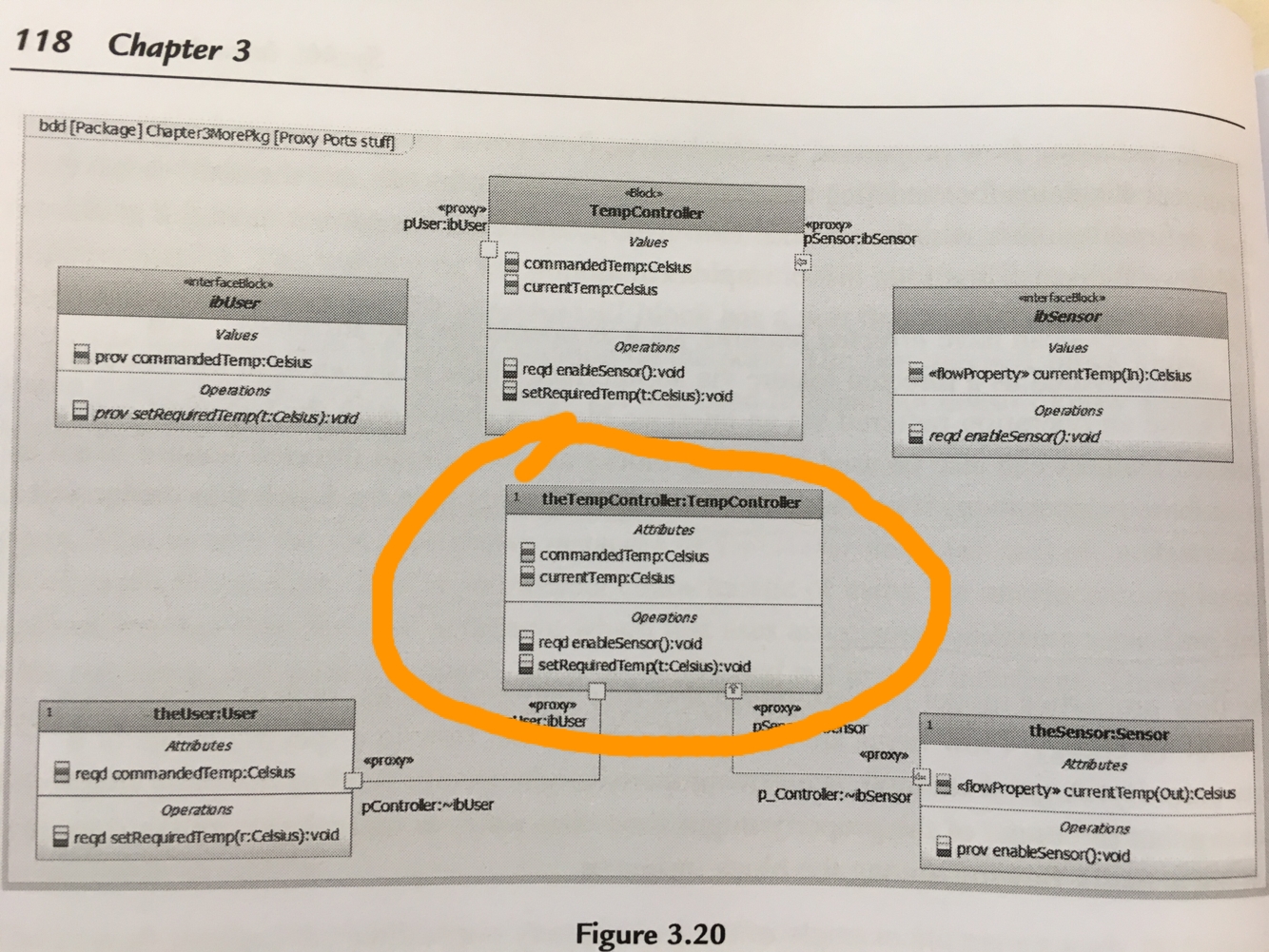

I am a beginner of System Engineering and i have a problem when i want to creat Block Instances in the Block Definition Diagram (BDD). I use BDD als the fundation of different Sequence Diagrams. I have searched the Nodes but i can only find Block and Interface Block. There is not a proper choice for creating the Block Instance. I would like to create a BDD like the following figure.
index.php/fa/30704/0/

thanks
Qi



  • Attachment: 1.png
    (Size: 831.22KB, Downloaded 251 times)
