How to Control Display of Custom Stereotype Attributes? [message #1772445]

Sat, 09 September 2017 21:34

Eclipse User

I have done the following:

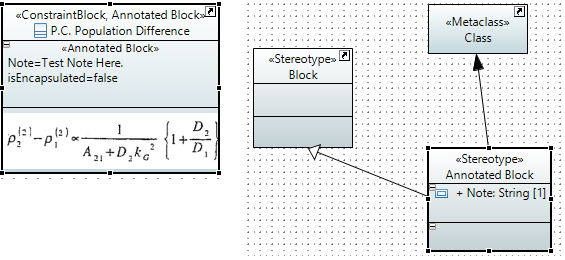

Create Profile which contains a custom stereotype called Annotated Block. I've then applied that stereotype to a block in a model, and displayed the compartment that displays the Annotated Block attributes. But...I only want to see some of the attributes. Referencing the attached image, I want to display "Note=...", but not display "isEncapsulated=...". The usual trick of Right Click -> Filters -> Show/Hide Contents doesn't seem to work here. Any suggestions?

Thanks a bunch!

Attachment: Stereotype Attribute Display.png
(Size: 19.07KB, Downloaded 143 times)

Re: How to Control Display of Custom Stereotype Attributes? [message #1772470 is a reply to message #1772445]

Mon, 11 September 2017 03:00

Eclipse User

Hello brad,
could you please telle me which version of Eclipse and papyrus are you using?
it seems you have the right way to display it.
Thanks

Re: How to Control Display of Custom Stereotype Attributes? [message #1772472 is a reply to message #1772470]

Mon, 11 September 2017 03:53

Eclipse User

Hi,

I fear that Show/Hide isn't working for stereotype compartment.
You may achieve that using custom css

Example for Requirement

Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] {
    visible:true;
    showTitle:false;
}

Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] > [property="derived"],
Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] > [property="derivedFrom"],
Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] > [property="satisfiedBy"],
Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] > [property="refinedBy"],
Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] > [property="tracedTo"],
Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] > [property="verifiedBy"],
Class[appliedStereotypes~="Requirement"] > Compartment[type=StereotypeCompartment] > [property="master"]{
	visible:false;
}

Regards,
Benoit

Re: How to Control Display of Custom Stereotype Attributes? [message #1772493 is a reply to message #1772472]

Mon, 11 September 2017 09:59

Eclipse User

Thanks guys! Sorry for not giving my version in the original post; it is:

Version: Neon (4.6.0)
Build id: 2017-01-10T18:00:02Z

I'll have a look at the CSS solution. It's about time I taught myself how to use that functionality anyow.
