Save Diagram as Image File, PDF, gives incorrect fill gradients [message #1770606]

Mon, 14 August 2017 23:08

Brad Crochet

Messages: 32
Registered: July 2017

Member

Version: Neon (4.6.0)
Build id: 2017-01-10T18:00:02Z

When I save a diagram image, the fill gradients for the diagram elements are wrong (compare the attached PNG and PDF). Is there something I should be doing differently?

Thanks!

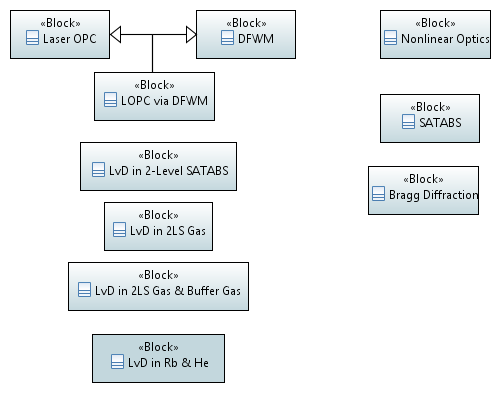

Attachment: model.png
(Size: 20.52KB, Downloaded 191 times)
Attachment: model.pdf
(Size: 34.79KB, Downloaded 100 times)

Report message to a moderator

Re: Save Diagram as Image File, PDF, gives incorrect fill gradients [message #1771178 is a reply to message #1770606]

Tue, 22 August 2017 15:58

Ansgar Radermacher

Messages: 246
Registered: March 2011
Location: Paris Saclay, France

Senior Member

I can reproduce this issue. It is likely caused by an issue in GMF, eventually similar to bug 327267.

Report message to a moderator

Re: Save Diagram as Image File, PDF, gives incorrect fill gradients [message #1773117 is a reply to message #1771178]

Thu, 21 September 2017 19:48

Brad Crochet

Messages: 32
Registered: July 2017

Member

I'm only just now getting to return to this issue, but I can at this point attest to it being a consistent issue with the exportation of diagrams to PDF...and only PDF. I've attached more examples to prove the point.

I looked at the bug report, but couldn't quite trace the connection to this behavior (may well have been over my head). Am I the only person seeing this behavior?

Attachment: Gradient Issue in PDF.pdf
(Size: 74.58KB, Downloaded 59 times)
Attachment: No Gradient Issue in SVG.svg
(Size: 49.06KB, Downloaded 145 times)

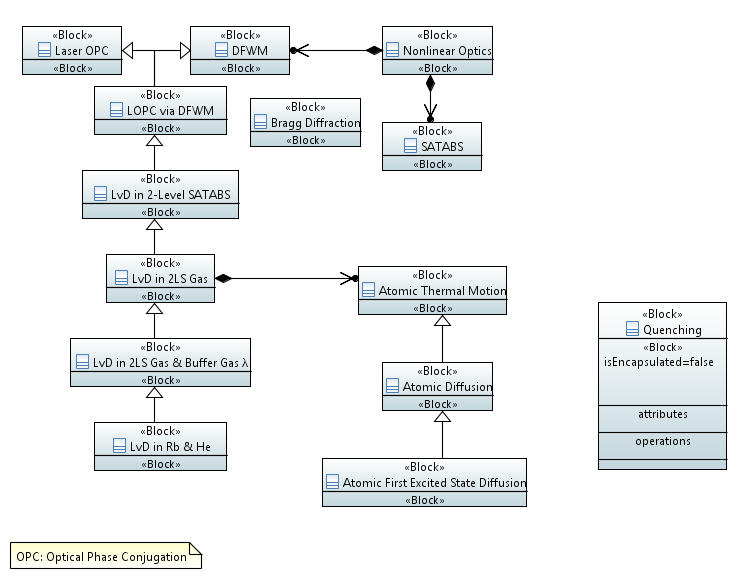

Attachment: No Gradient Issue in PNG.png
(Size: 47.21KB, Downloaded 95 times)

Report message to a moderator

Re: Save Diagram as Image File, PDF, gives incorrect fill gradients [message #1773118 is a reply to message #1773117]

Thu, 21 September 2017 20:03

Brad Crochet

Messages: 32
Registered: July 2017

Member

Just to add to the fun, I have experimented some with changing the gradient settings on just one or another Block in the diagram.

--Horizontal Gradients seems to export just fine.

--A color change on a bottom Block gave the block a solid color, but no Gradient.

--A color change on a top Block did not show up at all in the exported image.

--Changing to Horizontal Gradient in a top Block works fine, but has no effect on the rest of the image.

Attachment: Horizontal Gradient on Bottom Left Block.pdf
(Size: 74.58KB, Downloaded 51 times)
Attachment: Vertical Gradient Bottom-Left Block but Different Color.pdf
(Size: 74.87KB, Downloaded 45 times)
Attachment: Color Change on Top-Left Block.pdf
(Size: 74.85KB, Downloaded 47 times)
Attachment: Horizontal Gradient on Top-Left Block.pdf
(Size: 74.58KB, Downloaded 51 times)
