Selected element overlaps others. [message #1770117]

Tue, 08 August 2017 09:34

Eclipse User

Hello!

I have the next question:

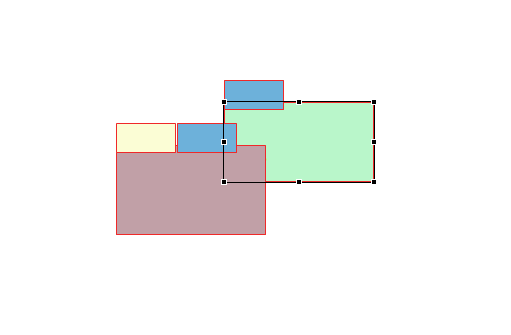

f there is any way to overlap selected element(a green one node on the picture) in front of others on diagram representation? In my case when I select overlapped element(a green one)
I can see only edges of selected element(a green one node) but it doesn't overlap unselected element(a brown one node).

Thank you in advance!
Roman.

Attachment: overlap_example.png
(Size: 2.51KB, Downloaded 80 times)

[Updated on: Tue, 08 August 2017 09:38] by Moderator

Re: Selected element overlaps others. [message #1770118 is a reply to message #1770117]

Tue, 08 August 2017 09:50

Eclipse User

Hi,

If I understand the question correctly, you can use the context-menu on the selected (green element) and then chose 'Format > Order > Bring to front'. It should be stable afterwards, but there is no way to make this automatically on element selection (technically, this implies changing the underlying model, so it would mean making the editor/session dirty almost on every selection).

Regards,

Re: Selected element overlaps others. [message #1770124 is a reply to message #1770118]

Tue, 08 August 2017 10:09

Eclipse User

Thank you for the quick answer!

Best regards, Roman.
