South Position of Child in GEF [message #1768741] Sun, 23 July 2017 09:28
asma Sendesni is currently offline asma SendesniFriend
Messages: 3
Registered: July 2017
Junior Member
Helle there,

i'm trying to draw combinedFragment of UML with a child InteractionOpernd,

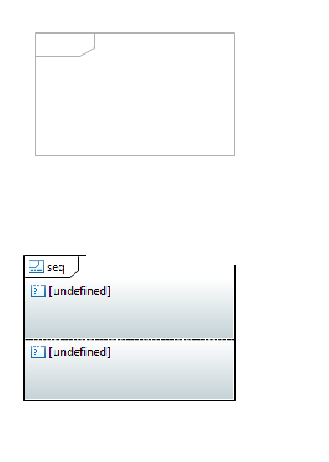

by now i achieve only drawing combinedFragment as shown in the figure bellow

but i want to place the child in the south of the first figure, i've tried several solution but they didn't work for me

Any more solutions please :)
  • Attachment: Capture2.PNG
    (Size: 6.35KB, Downloaded 197 times)
