Dear all,

could you be kind to clarify something about Palette customization of Papyrus.
I added my configuration in plugin.xml:

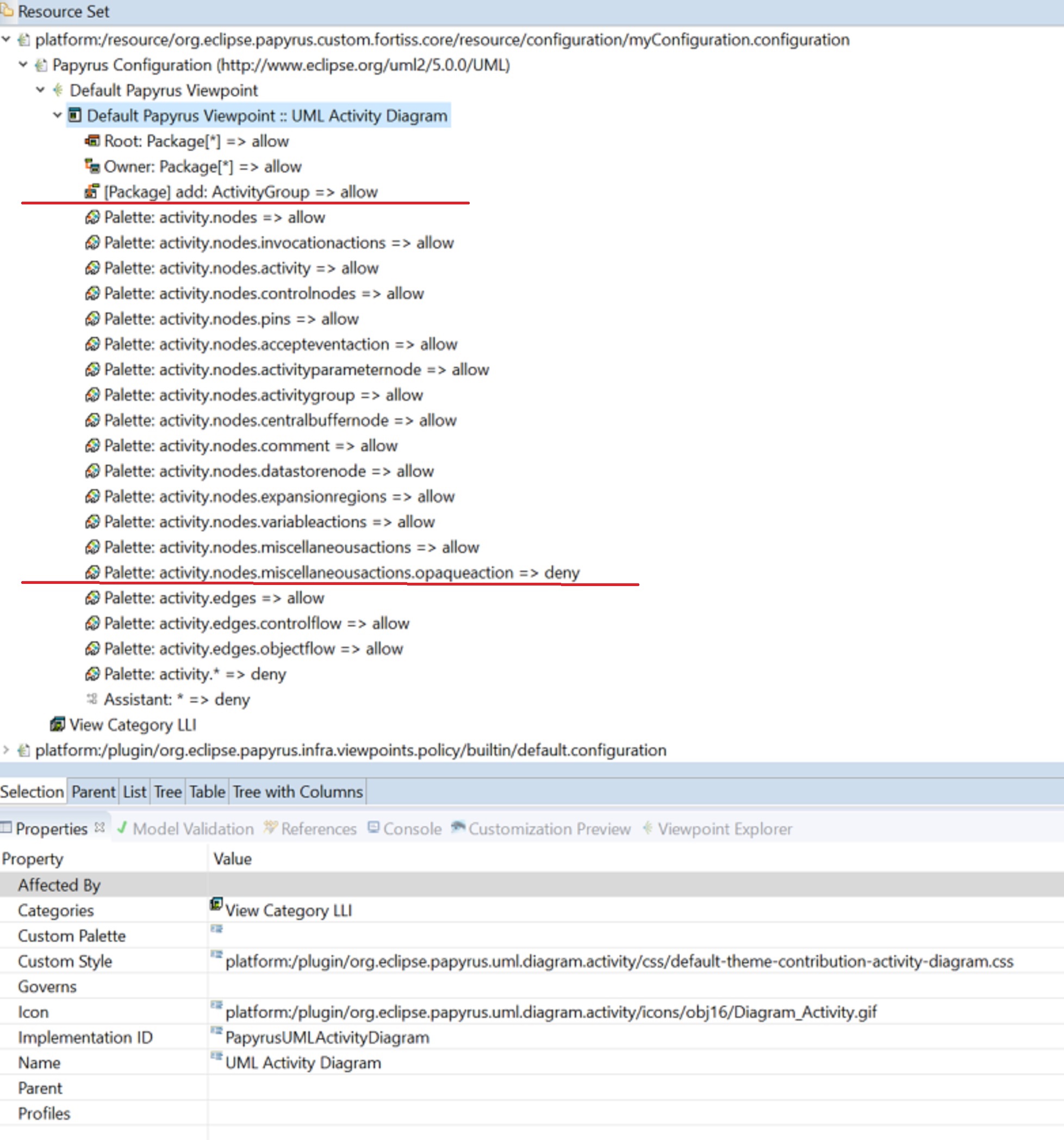

Than added Activity Diagram into extended Default Papyrus Viewpoint and created Palette rules (please see attached).

1. I tried to hide "Opaque Action" model element in the Palette using Palette rule: activity.nodes.miscellaneousactions.opaqueaction=> deny.
2. I added a type of the model elements begin dropped in the context menu of the Model Explorer using "Chiled rules" Element: "ActivityGroup NamedElement,ActivityContent", Origin: "Package Namespace, PackagebaleElement, TemplateableElement".

However, Papyrus doesn't react on these rules:

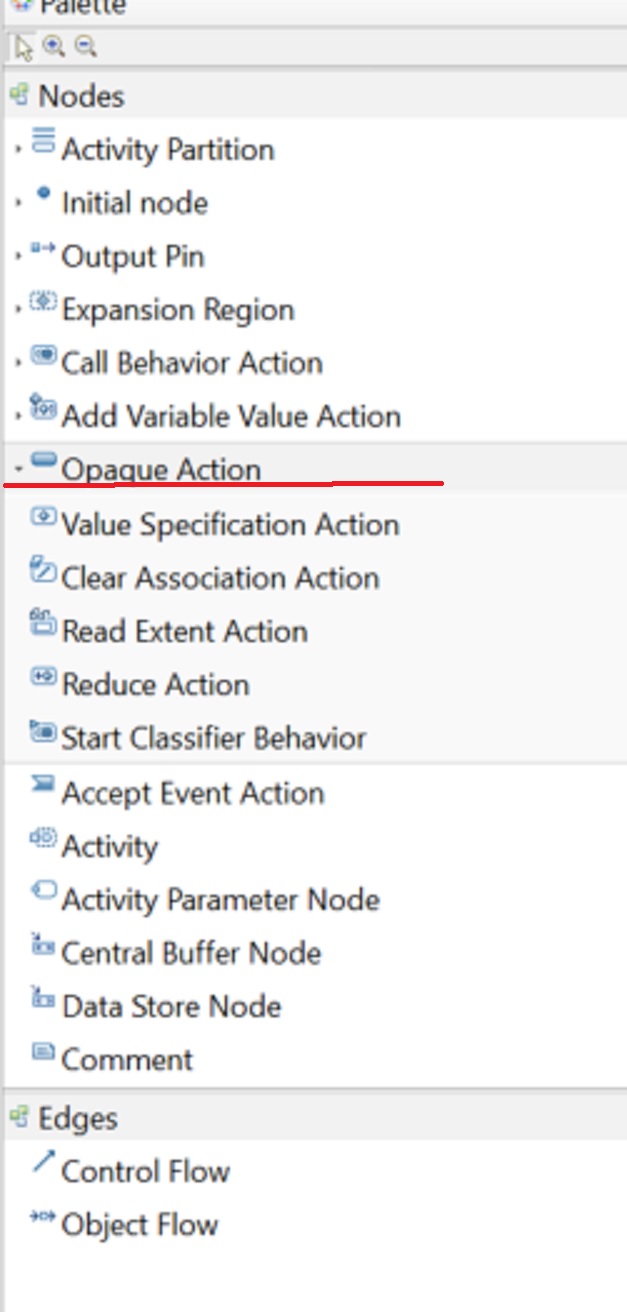

1. "Opaque Action" is still in the Palette.

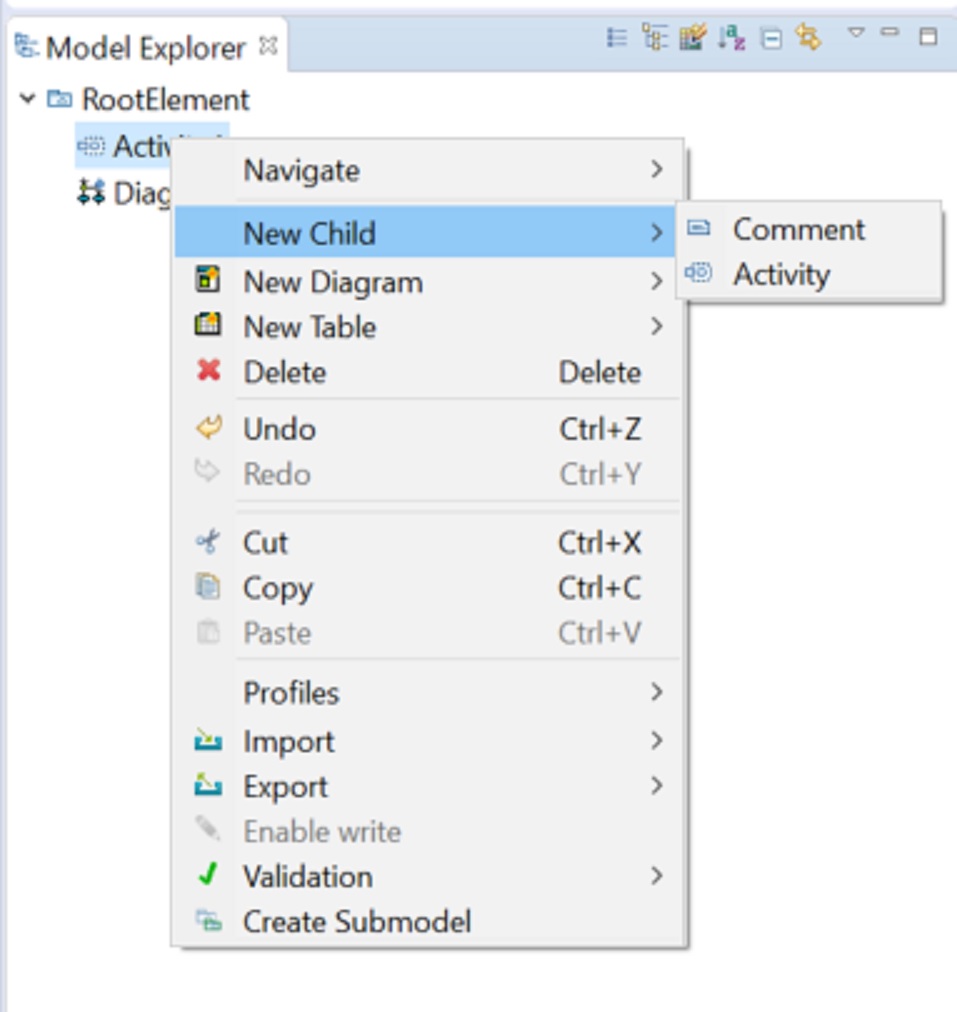

2. When I choose "Activity" element in Model Explorer and open "New Child" menu there are only 2 model elements : Activity and Comment.


Could you please explain, what I'm doing wrong or it is a Papyrus problem.

Thank you in advance!
