Home » Eclipse Projects » BPMN 2.0 Modeler » BPMN Element Labels
BPMN Element Labels [message #1754342] Thu, 16 February 2017 14:32 Go to next message
Umut Kazan is currently offline Umut KazanFriend
Messages: 26
Registered: February 2017
Junior Member
Hello,

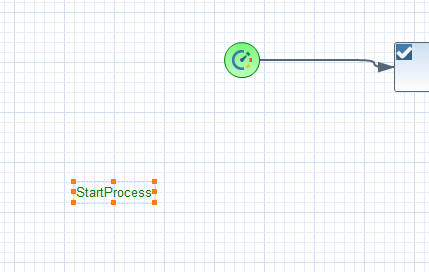

Attached image show that i located element label somewhere else in the diagram but after i execute the model, the label goes back right under its element. What can i do to stop labels to go their elements?
  • Attachment: forumec.png
    (Size: 6.19KB, Downloaded 83 times)
Re: BPMN Element Labels [message #1755192 is a reply to message #1754342] Tue, 28 February 2017 22:02 Go to previous messageGo to next message
Ralph Soika is currently offline Ralph SoikaFriend
Messages: 146
Registered: July 2009
Senior Member
Hi,
have you checked the BPMN2 Preferences - BPMN2->Editor->Apperiance->Shapes->Labels
and BPMN2->Save BPMNLabel Elements

But as I tested this settings a little bit, I was unable to move a label away from the shape as shown in your example. Which version von BPMN2 Plugin did you use?

===
Ralph
Re: BPMN Element Labels [message #1756138 is a reply to message #1755192] Mon, 13 March 2017 05:47 Go to previous message
Umut Kazan is currently offline Umut KazanFriend
Messages: 26
Registered: February 2017
Junior Member
Sorry Ralph i am junior member of this project and may not understand your question very well. We are not using plugin. We are using bpmn2 projects, codes, extend them etc.

Umut

[Updated on: Mon, 13 March 2017 05:50]
