Get and create SysML subprofiles (SysML 1.4 Memtamodel) [message #1753455]

Mon, 06 February 2017 11:35

Eclipse User

Hi,
Hi,

how can I get/create Profile Application for SysML subprofiles (Blocks, Allocations, ...) with SysML 1.4 metamodel. To sum up, what is the associated java code to acces and get for example Blocks profile application :

  <profileApplication xmi:type="uml:ProfileApplication" xmi:id="_8Dbu0eR0EeaKr774zLalDA">
    <eAnnotations xmi:type="ecore:EAnnotation" xmi:id="_8Dbu0uR0EeaKr774zLalDA" source="http://www.eclipse.org/uml2/2.0.0/UML">
      <references xmi:type="ecore:EPackage" href="http://www.eclipse.org/papyrus/sysml/1.4/SysML#//blocks"/>
    </eAnnotations>
    <appliedProfile xmi:type="uml:Profile" href="pathmap://SysML14_PROFILES/SysML.profile.uml#SysML.package_packagedElement_Blocks"/>
  </profileApplication>

The topic started here and it seems like the code That I've tried doesnt work with the metamodel sysml 1.4
Link here :

https://www.eclipse.org/forums/index.php/m/1753454/#msg_1753454

Best kinds,
Nesrine.

Re: Get and create SysML subprofiles (SysML 1.4 Memtamodel) [message #1753457 is a reply to message #1753455]

Mon, 06 February 2017 12:16

Eclipse User

Hi Nesrine,

There was a change in 0.10.0 in order to improve performances.

Basically, You have to reapply the profile and the sub profiles.

https://www.eclipse.org/papyrus/components/sysml/0.10.0/changes-report.html

Performance: change Package to Profile in the SysML 1.4 OMG profile :warning: The profile needs to be re-apply: - Open your Model - Select the root in the Model Explorer - Select Profile Properties view - SysML 1.4 profile is applied - Re-apply SysML 1.4 profile => All SysML 1.4 sub profile should also be applied Fixes 501077.

Please find attached an "empty" sysml.uml example, you will see that all sub profile have to be applied now. You should be able to copy/paste the text directly or re apply the profile using Papyrus.

Regards,
Benoit

Attachment: sysml14.uml
(Size: 5.76KB, Downloaded 220 times)

Re: Get and create SysML subprofiles (SysML 1.4 Memtamodel) [message #1753513 is a reply to message #1753457]

Tue, 07 February 2017 06:12

Eclipse User

Hi Benoit,

Thank you for the answer. So what I understand is that "programatically" I'm not able to get or apply à profile?
Let me give an example:
I'm java programing a Model to Model transformer from a model A to à target SysML 1.4 model. I want to transform a port element from model A to a FullPort port in the target SysML1.4 model. To do so, I need to create a port using UMLFactory, get the applicable stereotypes to acces the "Full port" stereotype. So, how can I transform and create a full port programatically ? I'm not supposed to do it on Papyrus IDE for instance. This is the same for the reste of SysML elements "allocation", "activities" , etc, etc, ...
Don't hesitate to ask for more specific details.
Regards,
Nesrine.

Re: Get and create SysML subprofiles (SysML 1.4 Memtamodel) [message #1753535 is a reply to message #1753513]

Tue, 07 February 2017 10:04

Eclipse User

If you already managed to apply the profile with 0.9.0, it should be straightforward for 0.10.0 : you apply all the sub profiles.

Are you trying to avoid only Papyrus IDE or also the eclipse osgi Platform?
What is your source model? meta-model?

Re: Get and create SysML subprofiles (SysML 1.4 Memtamodel) [message #1754766 is a reply to message #1753535]

Wed, 22 February 2017 03:37

Eclipse User

Hi Benoit,

I will try to be more specific in this posusing the code in charge of loading SysML 1.4 profile and subprofiles.
I'm using the attached SysmlResourcesUtilitites to load the profiles from the resource set etc...
In the calling class, I'm calling the load sysml profile and sub profiles as follow (the example is focused on the activities profile):

		/*
		 * Create the model
		 */
		Model model = SysmlResourcesUtilities.createSysmlModel();


		/*
		 * Create ResourceSet and load sysml profile
		 */
		ResourceSet set 			= new ResourceSetImpl();
		Profile sysmlProfile 		= SysmlResourcesUtilities.init(set);
		Profile requirementsProfile = (Profile) sysmlProfile.getNestedPackage("Activities");

(Profile) sysmlProfile.getNestedPackage("Activities"); throws a cast exception, as the getNestedPackage return a Package, not a profile.

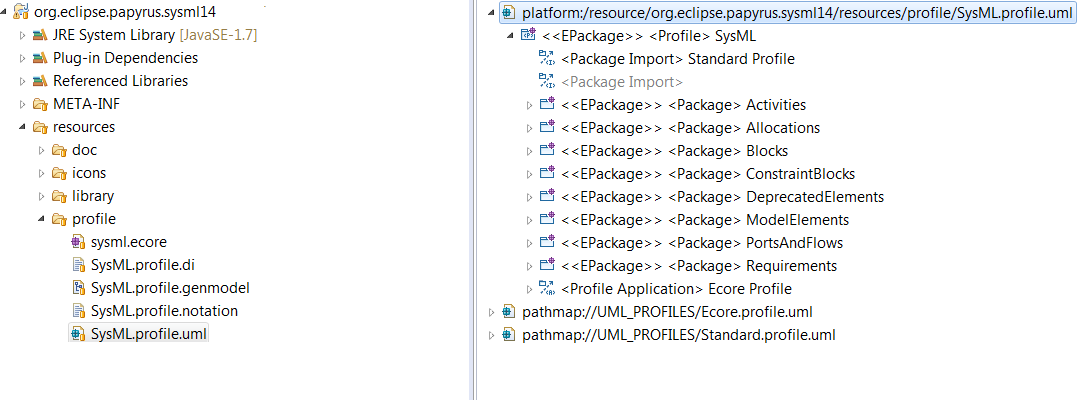

If I check the SysML.profile.uml for SysML14, I can see that SysML14 subprofiles are absolutly not profiles (see attached image).
What is the right way to get the subprofiles ?
Don't hesitate if you have any question.

Regards,
Nesrine.

Attachment: SysML14ResourcesUtilities.java
(Size: 7.74KB, Downloaded 151 times)
Attachment: SysMLprofileuml.png
(Size: 37.74KB, Downloaded 149 times)

[Updated on: Wed, 22 February 2017 03:38] by Moderator

Re: Get and create SysML subprofiles (SysML 1.4 Memtamodel) [message #1783229 is a reply to message #1754766]

Fri, 09 March 2018 07:29

Eclipse User

Have you been able to make your "SysML14ResourcesUtilities.java" work? I'm trying to use Acceleros with SysML and as it seems in this context, such a functionality has been missing for many years now. Amazing that it still has not been implemented yet, as it seems. I'm trying to get this running but could use some help here.
