Multiple Instances Embedded SubProcess Input Instance Parameter Problem [message #1748564]

Thu, 24 November 2016 12:28

Robert Georges

Messages: 1
Registered: November 2016

Junior Member

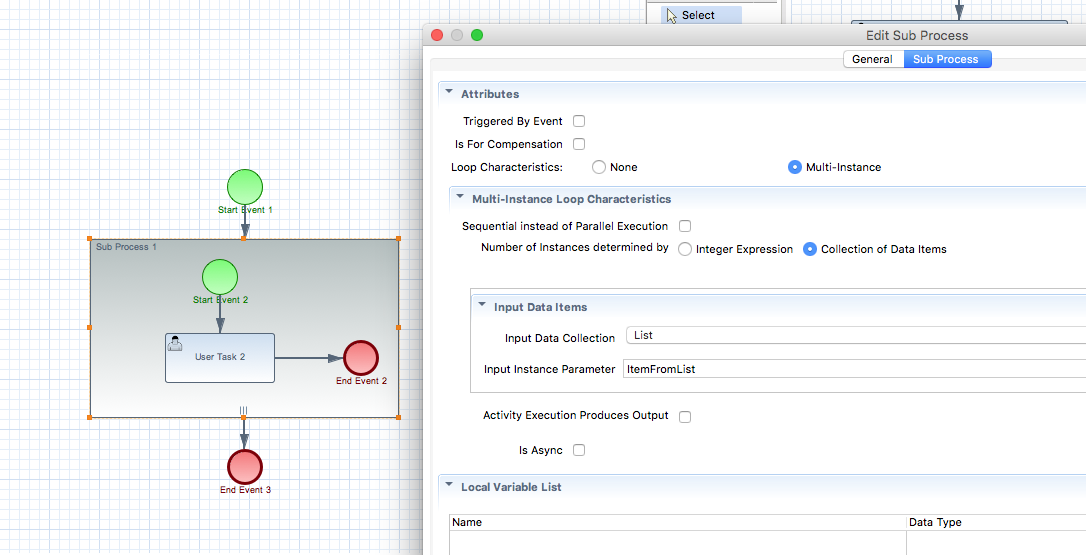

I am trying to design a simple Multiple Instances Embedded SubProcess. It should iterate a given list and pass the list items to the embedded activity.
index.php/fa/27694/0/

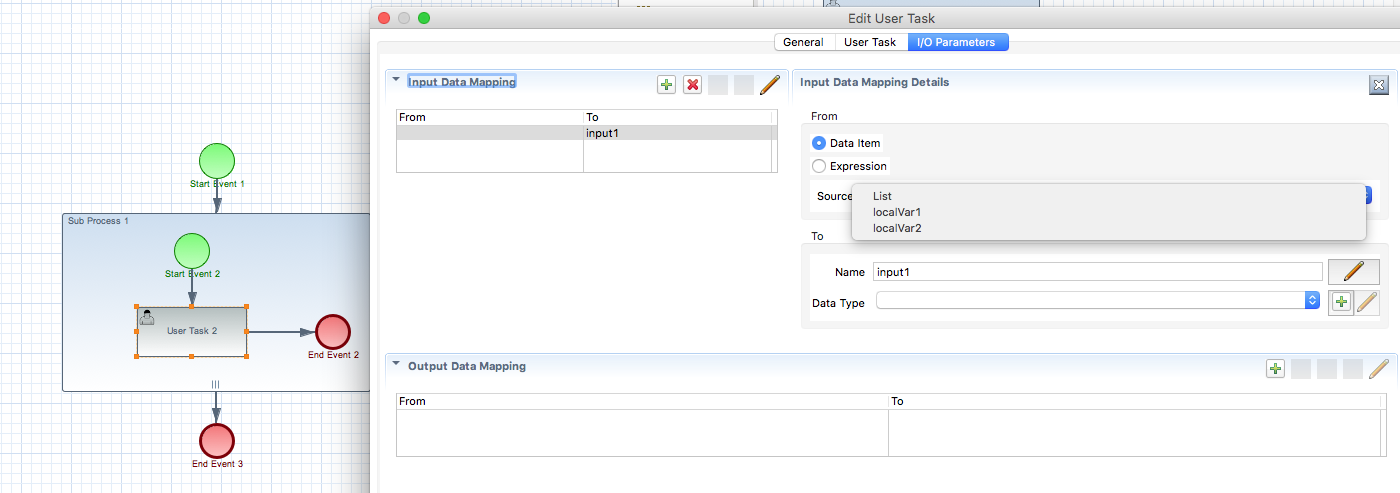

The problem is, that the Input Instance Parameter is not available in the dropdown box for the User Tasks I/O Parameter Input Data Mapping.
index.php/fa/27695/0/

Is there something else I need to do?

I am using
BPMN2 Modeler - Diagram Editor 1.3.1.Final-v20160914-1606-B56
with
BPMN2 Modeler - jBPM Runtime Extension Feature 1.3.1.Final-v20160914-1606-B56

Attachment: multipleInstanceSubProcess.png
(Size: 110.01KB, Downloaded 893 times)
Attachment: InputDataMappingEmbeddedUserTask.png
(Size: 98.96KB, Downloaded 744 times)
