Hi,
for (m in UML!Model) {
for (v in UML!Device.all){
var d = v.selectOne(a|a.name = "Device1");

var A : new UML!Artifact;
A.name="New-Artifact";
A.filename="New-Artifact.file";
d.deployment.deployedArtifact.add(A);

I am trying to add artifact to device but i couldnt find the name of the relationship that connect them together .The UML standard is so complex and confusing.Can you please help me.

Thanks,
Taghreed

Re: Change UMl model [message #1747928 is a reply to message #1747924]

Wed, 16 November 2016 16:02

Eclipse User

Hi Taghreed,

The reference you're looking for seems to be "nestedClassifiers" i.e. the following should work:

var d : new Device;
var a : new Artifact;
d.nestedClassifiers.add(a);

The UML tree editor is very useful for finding valid ways in which UML elements can connect to each other.

Cheers,
Dimitris

Re: Change UMl model [message #1747932 is a reply to message #1747928]

Wed, 16 November 2016 17:07

Eclipse User

i do really thank you because i didn't know how to read that tree .

Re: Change UMl model [message #1748284 is a reply to message #1747928]

Mon, 21 November 2016 14:52

Eclipse User

Hi,

How can I use a stereotype from MARTE profile and apply it to new device or new artifact which I created using EOL :
var d : new Device;
var a : new Artifact;
d.nestedClassifiers.add(a);

I am using interactive EOL programme so I am wondering if I can browse MARTE stereotypes using EOL and then ask the user to choose one stereotype(using System.user.prompt) and the selected stereotype can be applied to to any UML element like device or artifact.

Thanks,
Taghreed.

Re: Change UMl model [message #1748299 is a reply to message #1748284]

Mon, 21 November 2016 17:02

Eclipse User

Hi Taghreed,

Stereotype.all should return all available stereotypes. To apply a stereotype to a model element see http://download.eclipse.org/modeling/mdt/uml2/javadoc/3.0.0/org/eclipse/uml2/uml/Element.html#applyStereotype(org.eclipse.uml2.uml.Stereotype)

Cheers,
Dimitris

Re: Change UMl model [message #1748302 is a reply to message #1748299]

Mon, 21 November 2016 18:10

Eclipse User

Hi Dimitris,
operation Model addDevice(E :UML!Model){
var d : new Device;
var deviceName :String;
E.packagedElement.add(d);
d.name= System.user.prompt("Give Name to the Device " +deviceName );
var St:Collection =Stereotype.all;
var deviceStereotype: Any;
deviceStereotype= System.user.prompt("choose stereotype for the new device " +St );
"deviceStereotype".print()+deviceStereotype.println();
d.applyStereotype(deviceStereotype);
}
I got the following error:
Method 'applyStereotype' not found for: Device [name=vv, qualifiedName=model::vv, visibility=public, isLeaf=false, isAbstract=false, isFinalSpecialization=false, isActive=false, ]

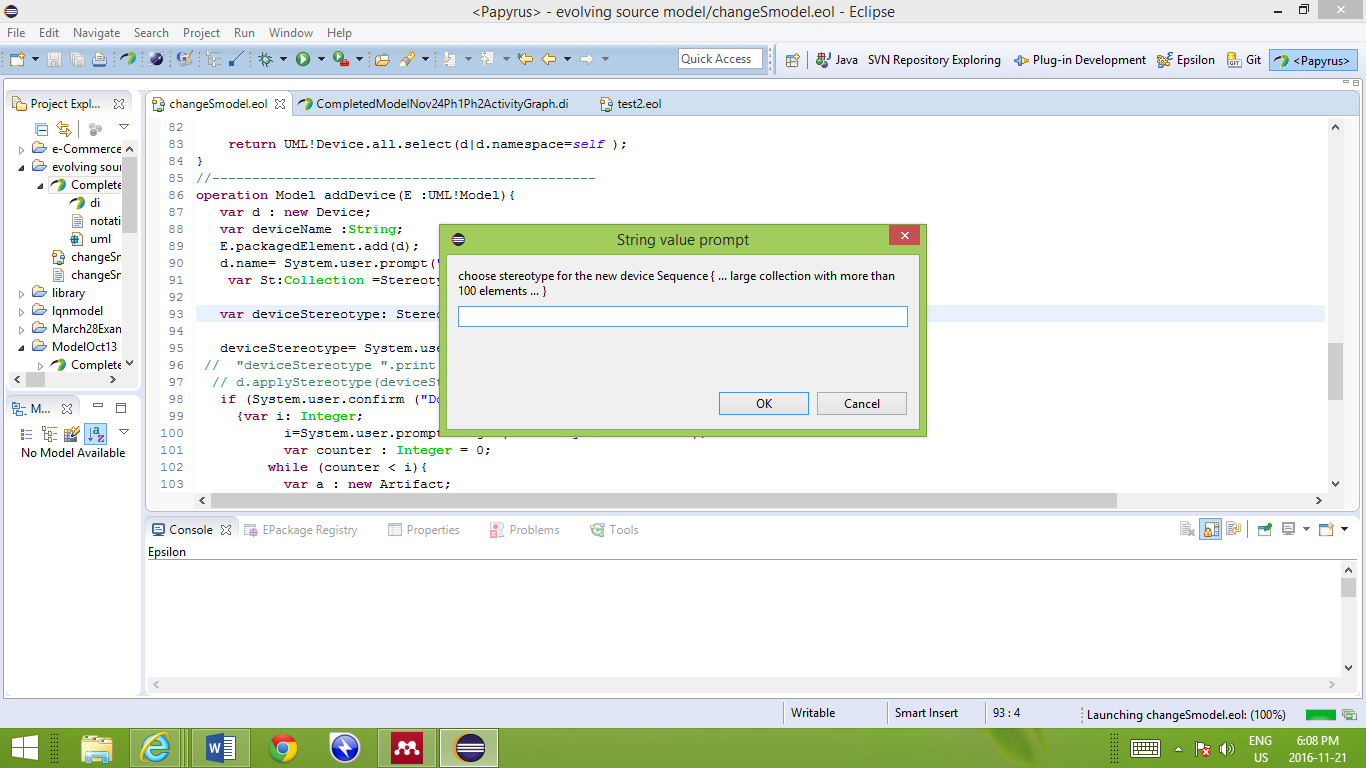

and also I wasn't able to see the collection in the user message ,it says too large collection has more than 100 elements.(see photo attached)
Can you please help me to view Stereotype.all collection and also tell me what is wrong in applyStereotype method.

Thanks,
Taghreed

Attachment: Collection.png
(Size: 165.99KB, Downloaded 345 times)
Attachment: Collection.png
(Size: 165.99KB, Downloaded 154 times)

[Updated on: Mon, 21 November 2016 18:25] by Moderator

Re: Change UMl model [message #1748376 is a reply to message #1748302]

Tue, 22 November 2016 10:10

Eclipse User

Hi Taghreed,

System.user.prompt returns a string. What you need is System.user.choose (see the book for parameters). If the UI provided by System.user.choose is not sufficient for your needs, you'd need to implement an appropriate interface in Java [1].

Cheers,
Dimitris

[1] https://www.eclipse.org/epsilon/doc/articles/call-java-from-epsilon/

Re: Change UMl model [message #1748384 is a reply to message #1748376]

Tue, 22 November 2016 11:14

Eclipse User

Thanks for your help it is working fine now
