Home » Modeling » Graphiti » Gradient troubles
Gradient troubles [message #1746091] Fri, 21 October 2016 14:14 Go to next message
Andreas Graf is currently offline Andreas GrafFriend
Messages: 203
Registered: July 2009
Senior Member
Dear all,

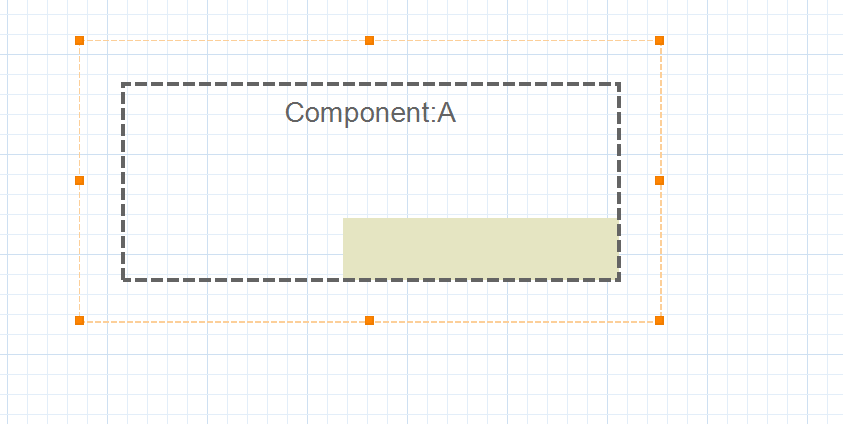

after migrating to the latest version of Graphiti, I am having some troubles. I have a rectangle (see image), with dotted lines, that has a style (yellow gradient). However, the gradient fill does not seem to start at the top left corner of the container, but is somehow related to the position of the rectangle in the diagram.

I I move the rectangle towards the upper left corner, the gradient fills more of the rectangle.

Any ideas?
Re: Gradient troubles [message #1746178 is a reply to message #1746091] Mon, 24 October 2016 14:38 Go to previous messageGo to next message
Michael Wenz is currently offline Michael WenzFriend
Messages: 1883
Registered: July 2009
Location: Walldorf, Germany
Senior Member
Andreas,

this sounds like a bug, however I was not able to reproduce it with our test tools. Could you redroduce this in a test diagram and file a bugzilla for it?

Thanks,
Michael
Re: Gradient troubles [message #1746194 is a reply to message #1746178] Mon, 24 October 2016 20:44 Go to previous messageGo to next message
Andreas Graf is currently offline Andreas GrafFriend
Messages: 203
Registered: July 2009
Senior Member
Hi Michael,

what would you need, just the diagram file?
Re: Gradient troubles [message #1746212 is a reply to message #1746194] Tue, 25 October 2016 12:38 Go to previous message
Michael Wenz is currently offline Michael WenzFriend
Messages: 1883
Registered: July 2009
Location: Walldorf, Germany
Senior Member
Yes, I guess the diagram file will be sufficient.

Thanks,
Michael
