Home » Modeling » Papyrus » Actions and Object Nodes
Actions and Object Nodes [message #1739710] Thu, 04 August 2016 08:33 Go to next message
Philippe de Rochambeau is currently offline Philippe de RochambeauFriend
Messages: 40
Registered: February 2013
Member
Hello,

The book entitled SysML Distilled contains a diagram showing an object node between two actions: a Measure Altitude Action generates via a stream an Altitude Object Node in kilometers, which is then consumed by an Opaque Action whose expression is currentOrbitRadius = currentAltitude + earth.radius.

I have a few questions:
- what kind of Papyrus SysML should I use for the first action: Create Object Action or Send Object Action?
- is there a way to display an object node in a Papyrus Activity Diagram? I couldn't find one. Instead, I created a km Primitive Type in a Block Diagram , which I used to type the first action's (Measure Altitude Action) output pin.

Many thanks.

Philippe



[Updated on: Thu, 04 August 2016 08:34]

Report message to a moderator

Re: Actions and Object Nodes [message #1739740 is a reply to message #1739710] Thu, 04 August 2016 13:16 Go to previous message
Philippe de Rochambeau is currently offline Philippe de RochambeauFriend
Messages: 40
Registered: February 2013
Member
Here's what I have found so far:
- the Call Behavior Action should be used for the first action
- you can't display object nodes in Papyrus

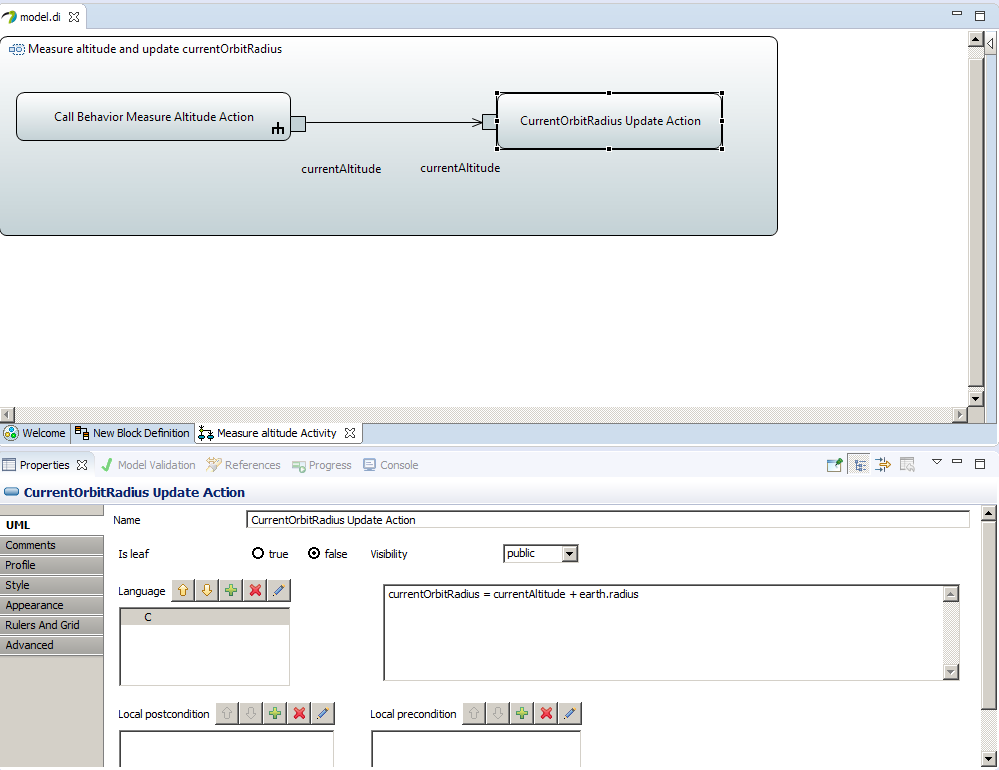

The uploaded image shows how I created the Measure Altitude Activity Diagram with Papyrus.
