It miss cases/icons into End event list : Cancel End event and multiple End event [message #1739202]

Thu, 28 July 2016 10:14

Olivier FALCK

Messages: 1
Registered: July 2016

Junior Member

Hello everyone,

I used BPMN2 modeler from 2 days ago and it miss two End event Icons :

Cancel end event
Multiple end event

When I drop an "End Event" icon on the grid, I can choose the event type:

Compensate
Error
Escalation
Message
Signal
Terminate

If I don't choose event type, the icon "None End Event" is displayed

Could you append miising icons and complete the list please ?

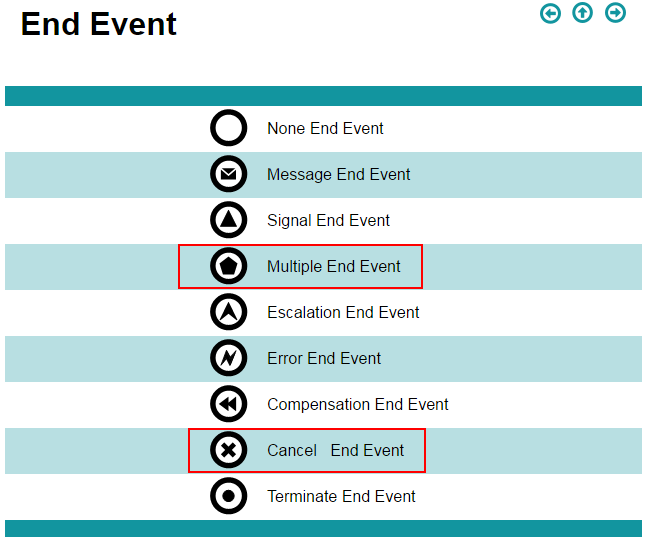

index.php/fa/26597/0/

Attachment: End_event_list_BPMN2.png
(Size: 28.00KB, Downloaded 382 times)

Report message to a moderator

Re: It miss cases/icons into End event list : Cancel End event and multiple End event [message #1740156 is a reply to message #1739202]

Tue, 09 August 2016 20:49

Robert Brodt

Messages: 811
Registered: August 2010
Location: Colorado Springs, CO

Senior Member

Hi Olivier,

The Cancel event type only applies if the event handler is contained within a Transaction activity, otherwise it does not make sense since there is no transaction to be canceled.
The Multiple Event type is not a specific type, per-se; it is simply the icon that is displayed if an event handler has defined more than one event type.

HTH,
Bob
