LayoutManager add unwanted Border Lines between nested Rectangles [message #1736745]

Fri, 01 July 2016 12:41

Niklas Klipphahn

Messages: 7
Registered: July 2016

Junior Member

Hey,

I've got a problem with LayoutManagers adding unwanted Border Lines between nested Rectangles.

Basically I defined a FigureDescriptor like this:

FigureDescriptor x
---Rectangle OuterRectangle
------LayoutManager Y
------Rectangle UpperRectangle
-------------LayoutManagerData Z1
------Rectangle CentralRectangle
-------------LayoutManagerData Z2
------Rectangle Lowerrectangle
-------------LayoutManagerData Z3

I've set Outline to false for UpperRectangle, CentralRectangle and LowerRectangle. Each of them is mapped as a Compartment.

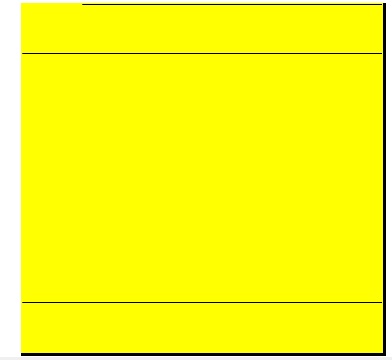

Outline is false for OuterRectangle as well. I've tried aligning the nested Rectangles with XY Layout and BorderLayout. But everytime I get Border lines between the nested Rectangles as you can see on the screenshot. index.php/fa/26321/0/

(btw. the outline at the bottom and left is wanted, and there's no border line at the upper left, because there's a label)

Is it possible to remove those border lines? (possibly via changing code)

Thanks in advance.

Attachment: border lines.jpg
(Size: 12.07KB, Downloaded 186 times)
