Connecting to elements of arrays [message #1735515]

Mon, 20 June 2016 14:16

Gregor Müller-Riederer

Messages: 1
Registered: June 2016

Junior Member

Hello,

I'm working on a project to create composite function block types from another file format and can't figure out how to connect arrays properly.

I have generated a function block type which has a bunch of inputs which are all defined as arrays with the size 2. Another function block provides scalar values for the first value of each of the arrays. The second values of the arrays should be connected to another function block. Is that possible? I did not find anything about a connection like this in the IEC61499.
Is it possible to connect the elements of the array to different outputs?

The 4DIAC IDE allows me to connect the scalar values to the array inputs but I cannot specify an index and cannnot add another connection to this input.

I tried to achieve this connection by adding an index in brackets to the destination of the connection in the .fbt which did not work. (Destination="move1.position_x[0]").

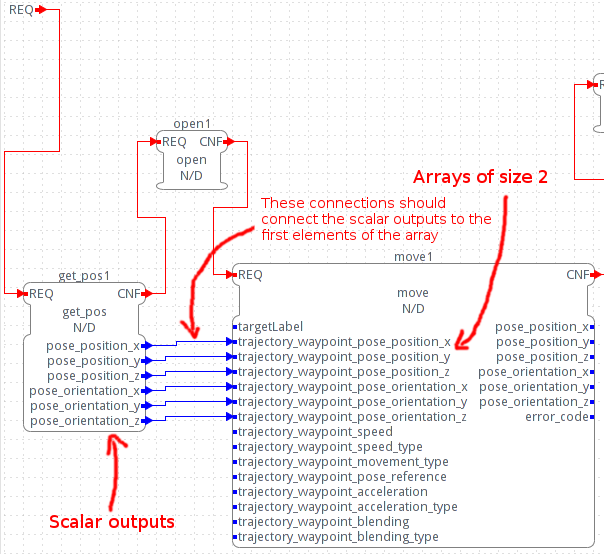

Could someone please take a look at the attached diagram and tell me if a connection like that is possible?

Thanks!

Best regards,
Gregor

index.php/fa/26219/0/

Attachment: 4DiacArrays_edit.png
(Size: 66.53KB, Downloaded 273 times)

Report message to a moderator

Re: Connecting to elements of arrays [message #1735534 is a reply to message #1735515]

Mon, 20 June 2016 21:29

Alois Zoitl

Messages: 523
Registered: January 2014

Senior Member

Hi,

according to my understand of IEC 61499 both ends need to be of same type and same array size. So IMHO 4diac-ide should check this and do not allow these connections. In order to be correct IEC 61499 you would need a FB which takes the scalars and translates them to arrays. Another options could be to harmonize the interface on both sides if possible.

Alois

Report message to a moderator
