[EMF Forms 1.7.2] Reference fields is not shown [message #1728167]

Thu, 31 March 2016 13:36

Michael Schmidt

Messages: 1
Registered: March 2016

Junior Member

Hi,

I having some troubles building viewmodels with EMF Forms 1.7.2 The preview displays the correct version of the viewmodel; however after launching the application, the fields where references should appear are not shown.

I already added all org.eclipse.emf.ecp.view.* plugins as dependencies in the viewmodel package. At the moment we use a plug-in based product. What did I miss?

Thanks for any suggestions
Michael

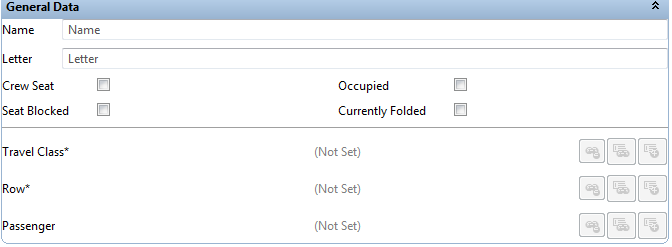

Attachment: view_should.png
(Size: 11.24KB, Downloaded 243 times)

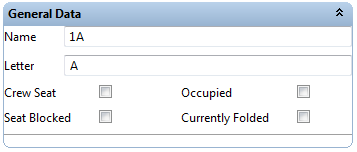

Attachment: view_is.png
(Size: 4.17KB, Downloaded 176 times)

Report message to a moderator

Re: [EMF Forms 1.7.2] Reference fields is not shown [message #1728900 is a reply to message #1728167]

Fri, 08 April 2016 11:41

Eugen Neufeld

Messages: 135
Registered: May 2015

Senior Member

Hi Michael,
can you add
- org.eclipse.emfforms.localization
- org.eclipse.emf.ecp.view.util.swt
- org.eclipse.emfforms.core.services.editsupport

Then the control should show up.

Cheers.
Eugen

--
Eugen Neufeld

Get professional Eclipse developer support:
http://eclipsesource.com/en/services/developer-support/

Report message to a moderator
