Scalable Polygon Line Style changing [message #1725767] Mon, 07 March 2016 13:49
Klementina Josifovska is currently offline Klementina JosifovskaFriend
Messages: 8
Registered: December 2015
Junior Member
index.php/fa/25206/0/Hi,
I want to create Instance Role and I have used Scalable Polygon as a Figure Descriptor for the Instance Role and at the moment the line is SOLID LINE for the whole figure.

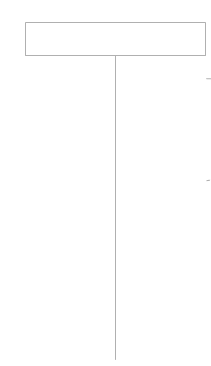

Is is possible, that the "LIFELINE" of the Instance Role (Please see the attachment) is DASHED LINE, while the upper part- Rectangle is SOLID LINE and how this can be done?

Thanks!
  • Attachment: gmfforum.PNG
    (Size: 1.85KB, Downloaded 219 times)
