Hello, when I look for intersections between an Ellipse and a Line the rendering seems incorrect :
here is my code :
Ellipse ellipse = new Ellipse(new Rectangle(new Point(-2.3564032448067262, 2.2999188362216954), new Point(2.3564032448067262, -2.3163831258337897)));
Line line = new Line(Point(-1000.0, 0.09999999999999999), Point(1000.0, 0.09999999999999999));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(2.3727936609778726, 0.09999999999999999)
// P2 : Point(-2.3727936609778726, 0.09999999999999999)
Line line = new Line(Point(-1000.0, -0.10000000000000002), Point(1000.0, -0.10000000000000002));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(2.3727936609778726, -0.10000000000000002)
// P2 : Point(-2.3727936609778726, -0.10000000000000002)
Line line = new Line(Point(-1000.0, -1.5), Point(1000.0, -1.5));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(1.812096977199157, -1.5)
// P2 : Point(-1.812096977199157, -1.5)
Line line = new Line(Point(-1000.0, -1.7), Point(1000.0, -1.7));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(1.616564239270406, -1.7)
// P2 : Point(-1.616564239270406, -1.7)

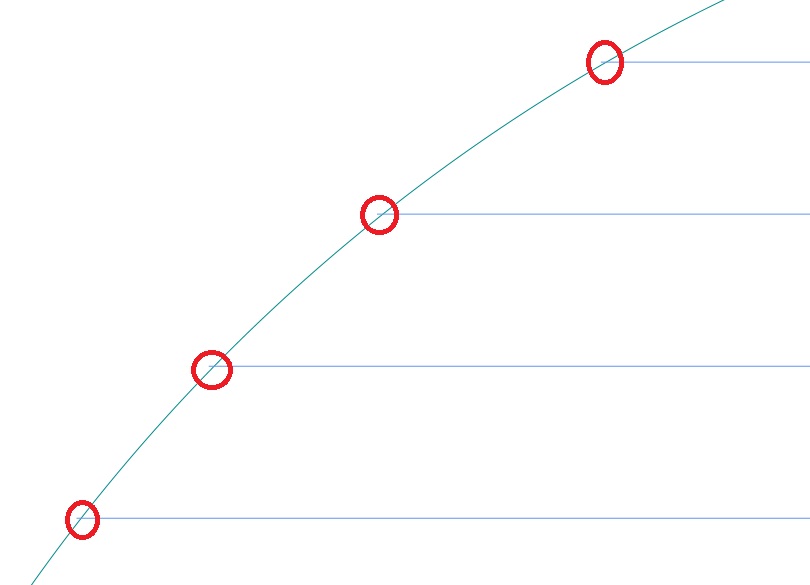

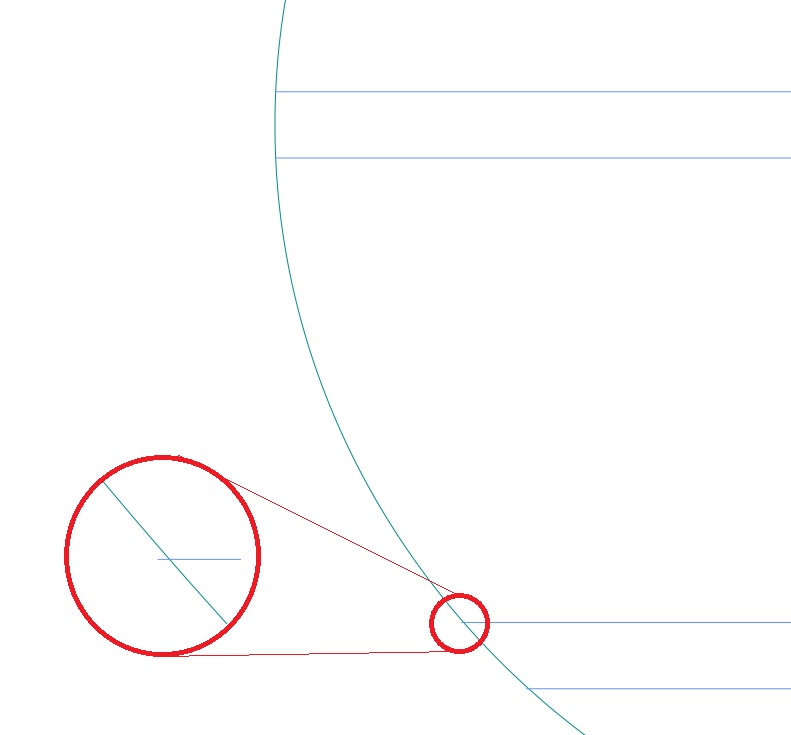

here is the corresponding rendering :
When my line has the same Y coordinate as the circle center Y coordinate, the intersection seems to be right, but as you can see on the screenshot when the curvature is more important on the circle the intersection seems to be wrong...
Here is another test case on the top circle area :
Ellipse ellipse = new Ellipse(new Rectangle(new Point(-2.3564032448067262, 2.2999188362216954), new Point(2.3564032448067262, -2.3163831258337897)));
Line line = new Line(Point(-1000.0, 2.0), Point(1000.0, 2.0));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(1.2043786907405434, 2.0)
// P2 : Point(-1.2043786907405434, 2.0)
Line line = new Line(Point(-1000.0, 1.8), Point(1000.0, 1.8));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(1.4988817347859782, 1.8)
// P2 : Point(-1.4988817347859782, 1.8)
Line line = new Line(Point(-1000.0, 1.6000000000000003), Point(1000.0, 1.6000000000000003));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(1.7201636374642788, 1.6000000000000003)
// P2 : Point(-1.7201636374642788, 1.6000000000000003)
Line line = new Line(Point(-1000.0, 1.4000000000000004), Point(1000.0, 1.4000000000000004));
Point[] points = ellipse.getIntersections(line);
// intersection points between line and ellipse :
// P1 : Point(1.8940637489397902, 1.4000000000000004)
// P2 : Point(-1.8940637489397902, 1.4000000000000004)
I don't know if I am doing something wrong....?
That's why I am giving you my code if you want to test
Attachment: in.jpg
(Size: 36.30KB, Downloaded 626 times)-
Attachment: in2.jpg
(Size: 27.20KB, Downloaded 361 times)
