QVTo Trace Editor doesn't show properties of elements [message #1717595]

Tue, 15 December 2015 07:50

Denis Nikiforov

Messages: 283
Registered: August 2013

Senior Member

Hi

I'm using QVTo 3.5.0.v20150603-1058.

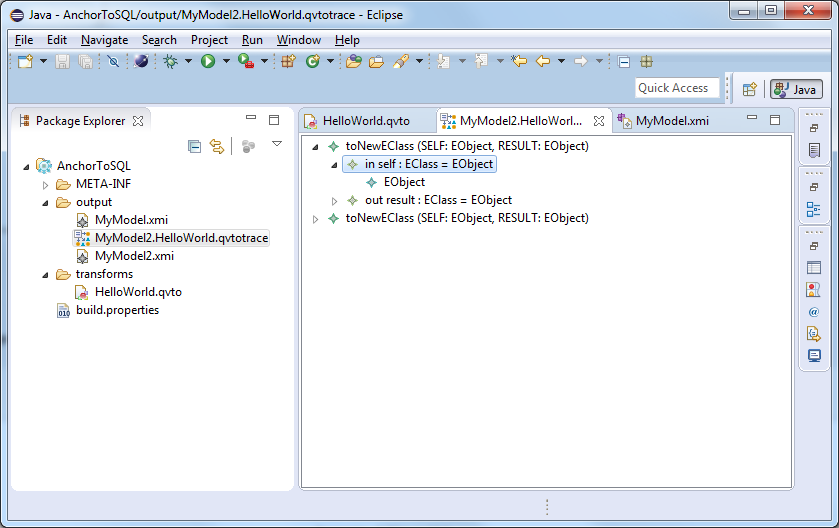

I can't see any properties of objects (see attached screenshot). How can I fix it?

Also I've attached the trace.

index.php/fa/24324/0/

Attachment: qvtotrace-bug.zip
(Size: 1.11KB, Downloaded 139 times)
Attachment: qvtotrace-bug.png
(Size: 67.07KB, Downloaded 480 times)

Report message to a moderator

Re: QVTo Trace Editor doesn't show properties of elements [message #1717605 is a reply to message #1717595]

Tue, 15 December 2015 09:06

Ed Willink

Messages: 7131
Registered: July 2009

Senior Member

HI

It's a standard EMF editor. Use "Show Properties View" to see the
Properties View.

Regards

Ed Willink

On 15/12/2015 07:50, Denis Nikiforov wrote:
> Hi
>
> I'm using QVTo 3.5.0.v20150603-1058.
>
> I can't see any properties of objects (see attached screenshot). How can I fix it?
>
> Also I've attached the trace.
>
>

Report message to a moderator

Re: QVTo Trace Editor doesn't show properties of elements [message #1717610 is a reply to message #1717605]

Tue, 15 December 2015 09:47

Denis Nikiforov

Messages: 283
Registered: August 2013

Senior Member

In Properties View I can see only properties of qvtotrace-file (path, size, last modified, ...).

I've got it! I saw element properties in debug mode:

https://wiki.eclipse.org/images/b/bd/Debug-trace-view.png

There is a real classes (Model, Package, ...) Instead of EObjects and real properties.

Is it impossible to see the same detailed information not only in debug mode but also in simple QVT Trace Editor?

Report message to a moderator

Re: QVTo Trace Editor doesn't show properties of elements [message #1717638 is a reply to message #1717610]

Tue, 15 December 2015 13:45

Ed Willink

Messages: 7131
Registered: July 2009

Senior Member

Hi

Correction: You can Open with the Sample Reflective Ecore Editor to get
the really standard EMF editor, with a Properties View.

The Operation QVT Trace Editor is a customized view in which all the
properties are represented in the visible text.

However neither editor allows you to trace from the EObject reference to
the EObject, which is where you could find more information.

https://bugs.eclipse.org/bugs/show_bug.cgi?id=484391 raised

Regards

Ed Willink

On 15/12/2015 09:47, Denis Nikiforov wrote:
> In Properties View I can see only properties of qvtotrace-file (path,
> size, last modified, ...).
>
> I've got it! I saw element properties in debug mode:
>
>
>
> There is a real classes (Model, Package, ...) Instead of EObjects and
> real properties.
>
> Is it impossible to see the same detailed information not only in
> debug mode but also in simple QVT Trace Editor?
