Node Outside the base package [message #1712392] Fri, 23 October 2015 10:53 Go to next message
Eclipse UserFriend
Hello everyone,

I am a beginner using Sirius. I've created a Modeling project, where the base package is called bip2.ujf.verimag.bip.packaging and I want to make a Node in a Diagram Representation which Domain Class is outside of this base package, but it is still in the same *.ecore file, namely the package of the node is bip2.ujv.verimag.bip.types and the class is AtomClass.

Is there a way to do this?
Re: Node Outside the base package [message #1712542 is a reply to message #1712392] Mon, 26 October 2015 06:22 Go to previous message
Eclipse UserFriend
Le 23/10/2015 21:24, Vladimir Ilievski a écrit :
> Hello everyone,
>
Hi Vladimir,

> I am a beginner using Sirius. I've created a Modeling project, where the
> base package is called bip2.ujf.verimag.bip.packaging and I want to make
> a Node in a Diagram Representation which Domain Class is outside of this
> base package, but it is still in the same *.ecore file, namely the
> package of the node is bip2.ujv.verimag.bip.types and the class is
> AtomClass.
> Is there a way to do this?

I don't know if this completely answers to your question but in
EcoreTools [1], there is the capability to display classes of an other

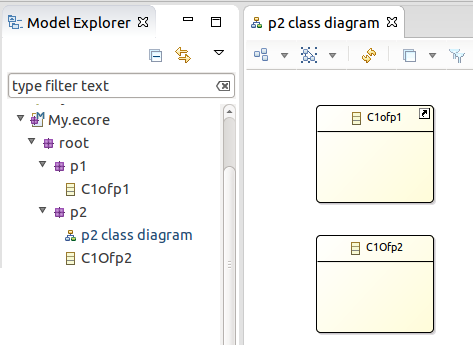

package. In the joined screenshot, the class C1ofp1 is displayed in the
diagram of package p2 (but C1ofp1 is a class of package 1). For that, it
uses a "not synchronized mapping" [2] and a "selection wizard" tool [3].

Best regards,

[1] https://www.eclipse.org/ecoretools/
[2]
http://git.eclipse.org/c/ecoretools/org.eclipse.ecoretools.git/tree/org.eclipse.emf.ecoretools.design/description/ecore.odesign#n149
[3]
http://git.eclipse.org/c/ecoretools/org.eclipse.ecoretools.git/tree/org.eclipse.emf.ecoretools.design/description/ecore.odesign#n262

--
Laurent Redor - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius
