Cannot apply any profile in Mars/Papyrus 1.1 [message #1707535]

Mon, 07 September 2015 06:28

Rolf Schumacher

Messages: 60
Registered: January 2014

Member

On Debian/KDE I recently updated to Mars/Papyrus 1.1.
Today I realized that I am no longer able to apply a profile to a model.
Tested with the two profiles I created myself.

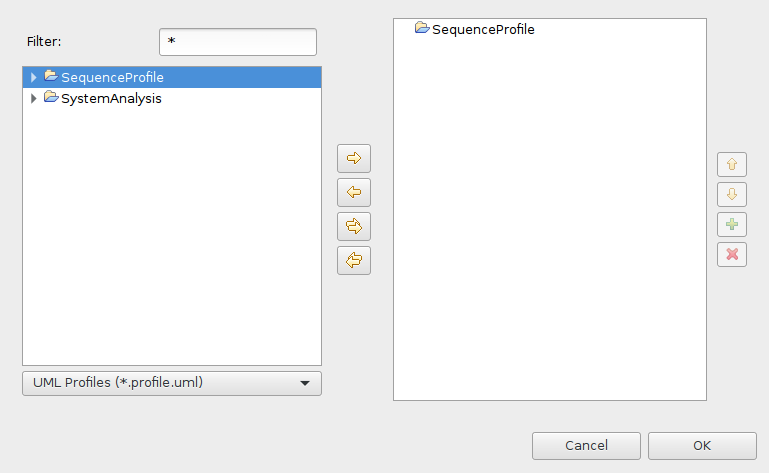

I select a model, pess "+" in the profile tab, move the profiles name from left to right (see picture) and click ok.

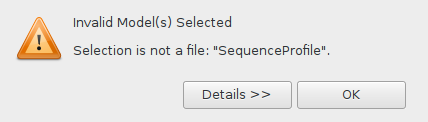

The error message is "Invalid Model(s) Selected, Selection is not a file: "<my profile name>" (see picture)

Any idea? Does it work on your site?

Attachment: 2015-09-07T08m15.png
(Size: 17.84KB, Downloaded 89 times)
Attachment: 2015-09-07T08m16.png
(Size: 9.21KB, Downloaded 111 times)

Report message to a moderator

Re: Cannot apply any profile in Mars/Papyrus 1.1 [message #1707539 is a reply to message #1707535]

Mon, 07 September 2015 08:04

Camille Letavernier

Messages: 926
Registered: February 2011

Senior Member

Hi Rolf,

This is surprising that the tool even lets you select the folder. You should select the *.uml file located in the folder rather than the folder itself (At least until Bug 409555 is fixed)

HTH,
Camille

Camille Letavernier

Report message to a moderator

Re: Cannot apply any profile in Mars/Papyrus 1.1 [message #1707594 is a reply to message #1707539]

Mon, 07 September 2015 17:59

Rolf Schumacher

Messages: 60
Registered: January 2014

Member

yes, thank you Cammille

I just saw the name of my profile and selected it, but it was not accepted, because - as you said - it was the name of the folder containing the profile.

With your hint I now open the folder and select the model.profile.uml file and than it works.

Report message to a moderator
