AbstractColorField [message #1704996]

Tue, 11 August 2015 06:12

Eclipse User

Can somebody give me a step by step 'tutorial' on how to implement a AbstractColorField. Like the one they used in this tutorial:

scout.bsiag.com/demoapp/web#org.eclipsescout.demo.widgets.client.ui.desktop.outlines.SimpleWidgetsOutline-Icons-%26-Font-Icons

Thanks

Re: AbstractColorField [message #1705004 is a reply to message #1704996]

Tue, 11 August 2015 07:40

Eclipse User

Just Add it like any other field.

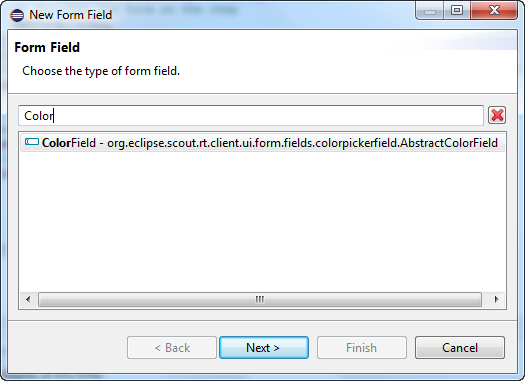

You can follow the Scout HelloWorld Tutorial, and instead of selecting "StringField" (Figure 8), you select "ColorField":
index.php/fa/22859/0/

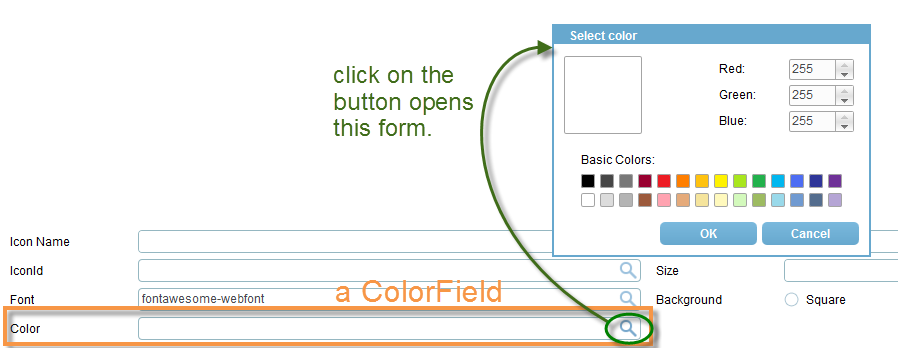

In the page you have linked, there is a ColorField (with the label "Color"). When you click on the magnifier icon of this field you can select a color that will be assigned as value of this field.

index.php/fa/22865/0/

I hope this helps. Otherwise do not hesitate to continue the discussion.

Attachment: ColorField.png
(Size: 27.64KB, Downloaded 372 times)
Attachment: ColorField_example.png
(Size: 33.02KB, Downloaded 327 times)

[Updated on: Wed, 12 August 2015 03:53] by Moderator

Re: AbstractColorField [message #1705035 is a reply to message #1705004]

Tue, 11 August 2015 10:42

Eclipse User

I can't choose the "ColorField" in that list.

[Updated on: Tue, 11 August 2015 16:19] by Moderator

Re: AbstractColorField [message #1705110 is a reply to message #1705035]

Wed, 12 August 2015 03:55

Eclipse User

What version of Scout are you using?

I have tested it with Mars (Scout 5.0.0). I guess it was introduced with Luna but I did not checked.

Re: AbstractColorField [message #1801916 is a reply to message #1705110]

Tue, 29 January 2019 09:04

Eclipse User

Hey guys,

im using Scout 8 and i was wondering if the field is still available.
So i tried to just test it like

    public class MyGroupBox extends AbstractGroupBox {
      @Override
      protected String getConfiguredLabel() {
        return TEXTS.get("Color");
      }

      public class MyColorField extends AbstractColorField {

      }
    }

And the result is a field showing the Text "not implemented yet".

Did i mess something up or is it "under construction"? Because i didnt see anything deprecated in the source.

Thank you in advance

Re: AbstractColorField [message #1801928 is a reply to message #1801916]

Tue, 29 January 2019 10:00

Eclipse User

Hi

It is not deprecated because currently we have no plans to remove it.

But you are right: It is not implemented in the HTML UI yet.

Kind regards
Mat

Re: AbstractColorField [message #1801975 is a reply to message #1801928]

Wed, 30 January 2019 03:13

Eclipse User

Hey Matthias,

thank you for making this clear. So i think the option would be a HTML Field like

 setValue(HTML.input().type("color").value("#ff0000").toHtml());

Or something like that.
Is there a way to get the value straight from that Colorpicker then?
Cause afaik the value of the Field is then the String <input type="color" value="#ff0000">.

Thank you in advance
