Papyrus 1.1 and customized requirements [message #1700901]

Wed, 08 July 2015 05:11

Tomas Sandkvist

Messages: 149
Registered: October 2013

Senior Member

In my effort to implement the SYSMOD profile, I have previously (i.e. since Papyrus 0. Cool

created a proper profile where I have created a number of specializations of the Requirement stereotype. In these I have also parameters for id and text because it was not possible to use the text and id parameters of the standard Requirement stereotype and get these data to show in tables and so forth.

Now, when trying out Papyrus 1.1, I can't get my specialized requirements to show their parameters, the fields are shown as null.

When experimenting I also found that the table (and there is no Requirements table no more, one will have to use the generic?) perfectly shows requirements that has two stereotypes, and that if I use the parameters of the Requirement stereotype and at the same time add my own stereotype, I manage to get things to work.

So, my question is, was I wrong from the start in my implementation of my DSML in that I created the id and text parameters in my specific stereotype?

At the time though, there was no other way to get it to work in Papyrus...

And if this was all wrong from the start, I guess I will have to manually move the contents of these parameters from "my" stereotype to the standard one?

Or is this simply a bug in Papyrus 1.1?

Regards,
Tomas Sandkvist

Report message to a moderator

Re: Papyrus 1.1 and customized requirements [message #1701139 is a reply to message #1700901]

Thu, 09 July 2015 13:50

Patrick Tessier

Messages: 238
Registered: July 2009
Location: Paris Saclay, France

Senior Member

Hi Tomas,
I try to understand.
You have create stereotype that inherits of SysML Requirement. In these stereotype you have created id and text property.

And now you cannot succed to see your properties of stereotype in tables?

Report message to a moderator

Re: Papyrus 1.1 and customized requirements [message #1701226 is a reply to message #1701139]

Fri, 10 July 2015 05:23

Tomas Sandkvist

Messages: 149
Registered: October 2013

Senior Member

Hi Patrick!

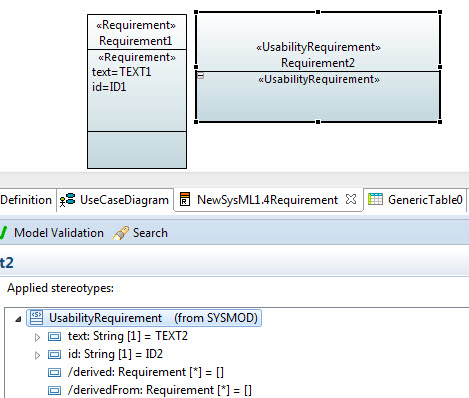

For a new model, they wont show at all:

index.php/fa/22463/0/

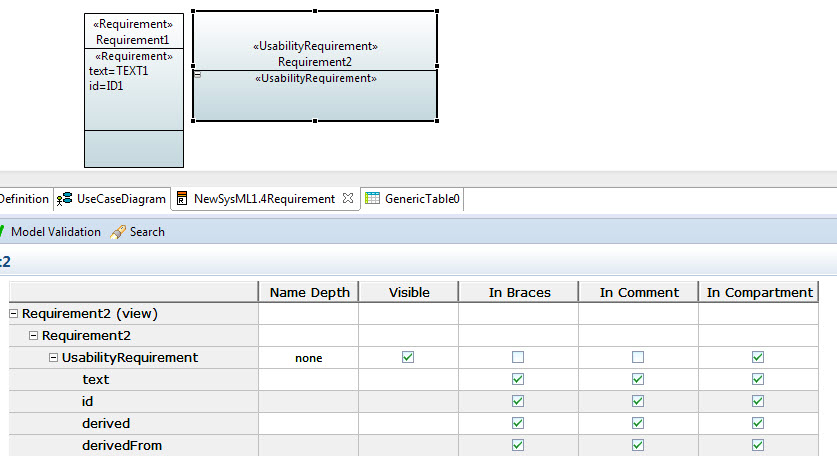

And here's the Appearance settings:

index.php/fa/22464/0/

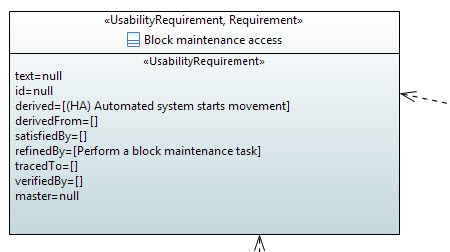

I was able to get the display of 'null' in these fields in the requirement diagram if I would add back the Requirement stereotype.

index.php/fa/22466/0/

A requirement table created with Papyrus 1.0.01 appears to look fine. The same issues with multiple stereotypes remains, as can be seen for item 12, which has both a Requirement and one of my own extensions applied.

And that was why I had to create the text and id fields, because I couldn't get the table to work with both the Requirement and by own stereotypes applied, and there was no other way (that I could realize) to fix this.

Regards,
Tomas

Attachment: 2015-07-10 07-06-32.jpg
(Size: 65.25KB, Downloaded 615 times)
Attachment: 2015-07-10 07-07-16.jpg
(Size: 87.97KB, Downloaded 596 times)
Attachment: 2015-07-10 07-22-13.jpg
(Size: 35.48KB, Downloaded 597 times)
