Home » Modeling » GMF (Graphical Modeling Framework) » node generated as link
node generated as link [message #1697486] Thu, 04 June 2015 10:26 Go to next message
55 66 is currently offline 55 66Friend
Messages: 7
Registered: May 2015
Junior Member
I'm working on a model editor but I have a problem when generating the gmftool and gmfmap.

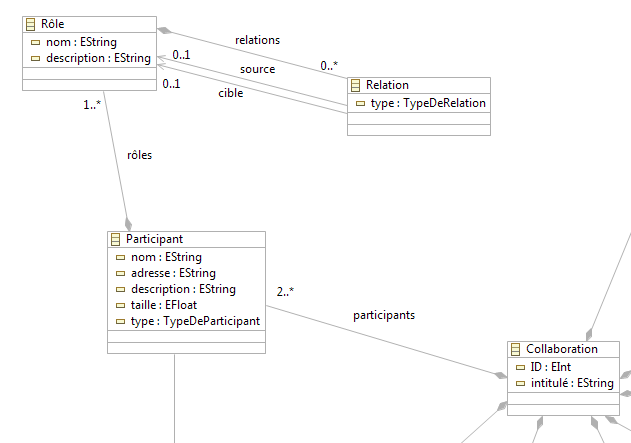

In my ecore diagram i created an eclass "collaboration" and it is the root, i want to make the "role" eclass contained in the "participant" Eclass but when i generate gmftool and gmfmap it is generated as a link not a node.
The "relation" class is a link between the "role" classes.
I will appreciate your help
  • Attachment: q.PNG
    (Size: 21.98KB, Downloaded 523 times)
Re: node generated as link [message #1703304 is a reply to message #1697486] Thu, 30 July 2015 12:39 Go to previous message
Anton Antonenko is currently offline Anton AntonenkoFriend
Messages: 4
Registered: July 2015
Junior Member
Although I'm not very confidend in my GMF skills, I'll try my very best to help.

I assume you chose the correct options wile generating the gmfmap. Meaning selecting your role as a link and not a node.
During the tooling step there is an, as far as I know, unresolved Bug that assigns the tools for the object incorrectly. bug 189410
This leads to a wrong behaviour in the final editor.

I hope thats it.
