Activity Diagram Icon with Plus Sign [message #1692808]

Sun, 19 April 2015 11:49

Philippe de Rochambeau

Messages: 40
Registered: February 2013

Member

Hello,

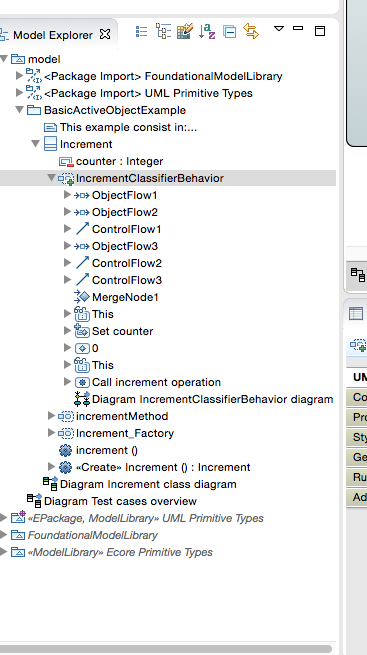

does anyone know what an Activity whose icon looks like an activity icon with an embedded plus sign stand for (please refer to attached screenshot)? How do you turn a regular activity into a plus-activity?

Many thanks.

Philippe

Attachment: Capture d’écran 2015-04-19 à 13.28.01.png
(Size: 87.22KB, Downloaded 123 times)

Report message to a moderator

Re: Activity Diagram Icon with Plus Sign [message #1692898 is a reply to message #1692808]

Mon, 20 April 2015 13:36

Charles Rivet

Messages: 219
Registered: May 2014
Location: Canada

Senior Member

Bonjour Philippe,

The "+" indicates that the activity is public. By default, i.e., when you initially create the activity, it would not be shown. What must have happened is that the visibility was somehow changed to something else and then changed back to public.

/Charles Rivet
