Routing problem with Lanes since version 1.1.2? [message #1692136]

Mon, 13 April 2015 19:30

Ralph Soika

Messages: 188
Registered: July 2009

Senior Member

Hi Bob,

I am not sure, but to me it looks like there is a strange problem with the routing since version 1.1.2 and 1.1.3
In general I am very happy with the new routing because it is much more useful as in older versions. Thanks for the improvements!

But I notice that something went wrong when lanes are added into a model.

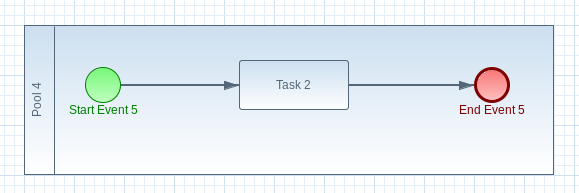

If a model is not using pools or just using pools without lanes everything works like expected and very smart.
index.php/fa/21522/0/

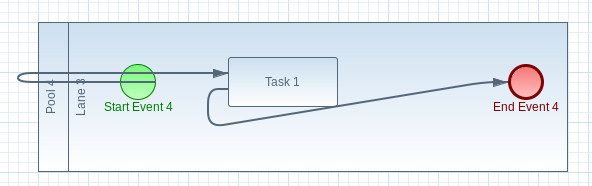

But when you add a lane into a pool and than add elements into the lane the routing runs crazy. See the attached screenshots.
index.php/fa/21523/0/

To me it looks like if the lane signals the router that it is a 'blocking' element where the router need to find a way around.
I also added a bug report concerning a strange behaviour with pools (https://bugs.eclipse.org/bugs/show_bug.cgi?id=464052). But as far as I have tested the routing problem this seems not to be related.

I can't give you more information about the problem because this routing mechanism seems to be some background magic....

===
Ralph

Attachment: screen_36.png
(Size: 8.17KB, Downloaded 380 times)
Attachment: screen_35.png
(Size: 11.10KB, Downloaded 381 times)
