KDM to UML converter [message #1640867] Sat, 28 February 2015 09:12 Go to next message
Salwa Alzahmi is currently offline Salwa AlzahmiFriend
Messages: 37
Registered: June 2013
Member
Hi ,

I was trying to use KDM to UML model converter feature with modisco. However, I noticed the generated UML model doesn't include the description of relationships (generalization , dependency , import, include etc) between the java elements. Well , actually the source code (java) elements are just represented as Artifacts . Hence i wonder if Modisco consider the implementation of the code model of KDM meta-model . ?
otherwise , please guide me if i am not using modisco in right way to get the correct result of KDM to UML conversion with all relationships .

I am using elcipse Kepler , with modisco version 0.11


Thanks
Salwa
Re: KDM to UML converter [message #1645309 is a reply to message #1640867] Mon, 02 March 2015 12:46 Go to previous message
Hugo Bruneliere is currently offline Hugo BruneliereFriend
Messages: 667
Registered: July 2009
Senior Member
Hello,

Indeed the KDM-to-UML transformation is not 100% complete (in the sense of covering the full KDM metamodel), but common kinds of relationships (e.g. generalizations, dependencies, etc.) are actually supported.

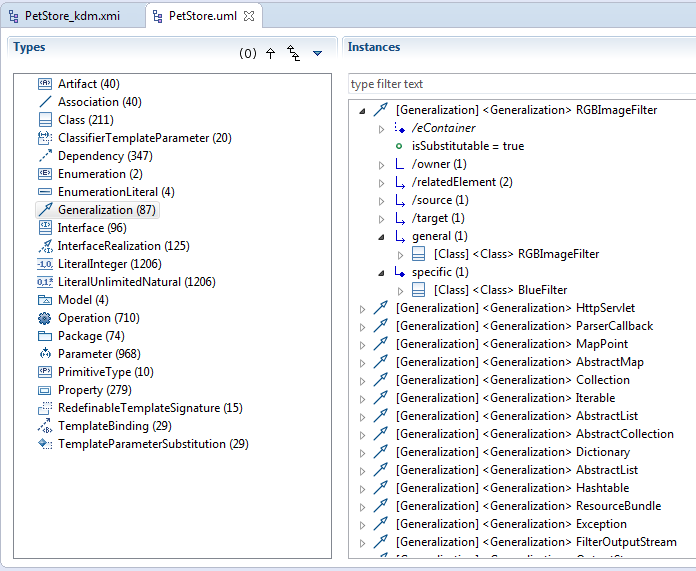

You can find an example UML model from the screenshot below.
index.php/fa/21035/0/

However, keep in mind that the purpose of the two metamodels is different, thus some information in KDM may not have direct equivalent in UML.

An alternative (direct) Java-to-UML transformation can also be found from the ARTIST project's OS Release, still based on the MoDisco Java Model Discoverer.


------------------------------------------
Hugo Bruneliere - R&D Engineer
AtlanMod research team (Inria, EMN & LINA)
Ecole des Mines de Nantes
Nantes - France
------------------------------------------
