Updating a diagram after saving its business model to database [message #900208] Sun, 05 August 2012 11:19 Go to next message
Surya Kathayat is currently offline Surya Kathayat
Messages: 44
Registered: July 2012
In my case, each business object (Task) associated with a node in a diagram have unique "ID" and "Name".

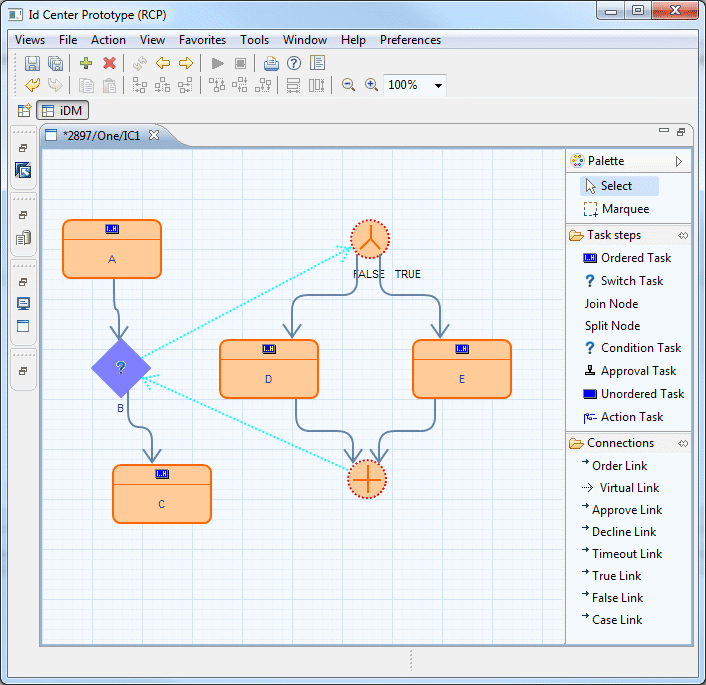

When a diagram is created "Name" of a node is given by the user. For example nodes A - E in the diagram shown below.


When the diagram is saved (using save toolbar button), business objects (Tasks) will be saved into a database. "ID" of all the saved nodes will be generated at database and will be returned by the "save" operation.

My question is now, How to update the "ID" of the curresponding business objects in the diagram?.

Any pointers will be highly appreciated.

I use the following code in "doSave" method of editor and got the following exceptions.

public void doSave(IProgressMonitor monitor) {
try {
   for (int i = 0; i < diag.getLink().getBusinessObjects().size(); i++) {
	EObject eobj =  diag.getLink().getBusinessObjects().get(i);
	if(eobj instanceof Task){
	   Task task = (Task) eobj;
	   if(task.getMcTaskId() == null){
	     task.setMcTaskId(/*ID received from database*/);
} catch (RuntimeException e) {

Following exception occurs!!!

java.lang.IllegalStateException: Cannot modify resource set without a write transaction
at org.eclipse.emf.transaction.impl.TransactionChangeRecorder.assertWriting(
at org.eclipse.emf.transaction.impl.TransactionChangeRecorder.appendNotification(
at org.eclipse.emf.transaction.impl.TransactionChangeRecorder.processObjectNotification(
at org.eclipse.emf.transaction.impl.TransactionChangeRecorder.notifyChanged(
at org.eclipse.emf.common.notify.impl.BasicNotifierImpl.eNotify(
at org.eclipse.ui.internal.SaveableHelper$
at org.eclipse.ui.internal.SaveableHelper$
at org.eclipse.jface.operation.ModalContext.runInCurrentThread(
at org.eclipse.jface.window.ApplicationWindow$
at org.eclipse.swt.custom.BusyIndicator.showWhile(
at org.eclipse.ui.internal.SaveableHelper.runProgressMonitorOperation(
at org.eclipse.ui.internal.SaveableHelper.runProgressMonitorOperation(
at org.eclipse.ui.internal.SaveableHelper.savePart(
at org.eclipse.ui.internal.EditorManager.savePart(
at org.eclipse.ui.internal.WorkbenchPage.savePart(
at org.eclipse.ui.internal.WorkbenchPage.saveEditor(
at org.eclipse.ui.internal.handlers.SaveHandler.execute(
at org.eclipse.ui.internal.handlers.HandlerProxy.execute(
at org.eclipse.core.commands.Command.executeWithChecks(
at org.eclipse.core.commands.ParameterizedCommand.executeWithChecks(
at org.eclipse.ui.internal.handlers.HandlerService.executeCommand(
at org.eclipse.ui.internal.handlers.SlaveHandlerService.executeCommand(
at org.eclipse.ui.menus.CommandContributionItem.handleWidgetSelection(
at org.eclipse.ui.menus.CommandContributionItem.access$19(
at org.eclipse.ui.menus.CommandContributionItem$5.handleEvent(
at org.eclipse.swt.widgets.EventTable.sendEvent(
at org.eclipse.swt.widgets.Widget.sendEvent(
at org.eclipse.swt.widgets.Display.runDeferredEvents(
at org.eclipse.swt.widgets.Display.readAndDispatch(
at org.eclipse.ui.internal.Workbench.runEventLoop(
at org.eclipse.ui.internal.Workbench.runUI(
at org.eclipse.ui.internal.Workbench.access$4(
at org.eclipse.ui.internal.Workbench$
at org.eclipse.core.databinding.observable.Realm.runWithDefault(
at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(
at org.eclipse.ui.PlatformUI.createAndRunWorkbench(
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(
at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
at java.lang.reflect.Method.invoke(Unknown Source)
at org.eclipse.equinox.launcher.Main.invokeFramework(
at org.eclipse.equinox.launcher.Main.basicRun(
at org.eclipse.equinox.launcher.Main.main(

Re: Updating a diagram after saving its business model to database [message #900257 is a reply to message #900208] Mon, 06 August 2012 04:38 Go to previous messageGo to next message
Surya Kathayat is currently offline Surya Kathayat
Messages: 44
Registered: July 2012
Solved by using a RecordingCommand.

Re: Updating a diagram after saving its business model to database [message #900774 is a reply to message #900208] Wed, 08 August 2012 08:52 Go to previous message
Michael Wenz is currently offline Michael Wenz
Messages: 1587
Registered: July 2009
Location: Walldorf, Germany
Senior Member
You will need to wrap any model modification code into a command running on
the command stack of the editor's TransactionalEditingDomain, because
Graphiti uses EMF Transactions under the hoods.
