modeling control system with Papyrus [message #1385041]

Tue, 03 June 2014 17:51

Eclipse User

Hello all,
I am new to UML/papyrus, I want to use papyrus to model control systems like the one attached. please I need guidance on now to use this tool.

Regards.

Jimmy

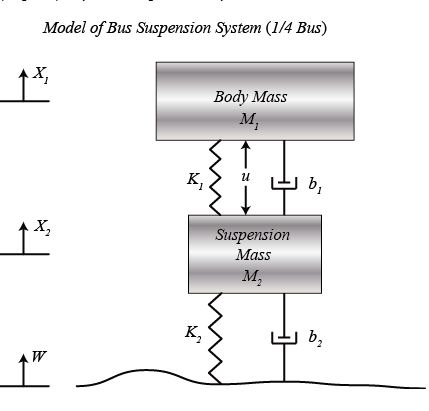

Attachment: car_suspension.JPG
(Size: 24.80KB, Downloaded 323 times)

Re: modeling control system with Papyrus [message #1385515 is a reply to message #1385041]

Sun, 08 June 2014 07:23

Eclipse User

It's best to ask on the eclipse.papyrus forum.

On 04/06/2014 1:06 AM, jimmy pascal wrote:
> Hello all,
> I am new to UML/papyrus, I want to use papyrus to model control systems like the one attached. please I need guidance on now to use this tool.
>
> Regards.
>
> Jimmy
