| Definition of Profiles with MARTE's NFPs fails [message #1168538] |
Sun, 03 November 2013 06:20  |
Eclipse User |
|
|
|
Hello,
I recently upgraded to the latest Papyrus version, namely Papyrus Backbone 0.10.1v201309181302, and since then I'm no longer able to define profiles containing MARTE's non-functional properties (NFPs) such as NFP_Duration, NFP_DataSize, etc.
Every time I try to define those kinds of profiles, Papyrus shows a dialog box with two red crosses for each NFP occurence that complain like this:
"
x The feature 'eType' of 'myProp:MARTE_Library_BasicNFP_Types_NFP_Duration' contains a dangling reference 'MARTE_Library_BasicNFP_Types_NFP_Duration->MARTE_Library_BasicNFP_Types_NFP_Real'
x The feature 'eClassifier' of 'MARTE_Library_BasicNFP_Types_NFP_Duration' contains a dangling reference 'MARTE_Library_BasicNFP_Types_NFP_Duration->MARTE_Library_BasicNFP_Types_NFP_Real'
"
This issue is quite severe because at today I'm unable to apply my profile refinements to my models (given that I'm not able to define my profile refinements...).

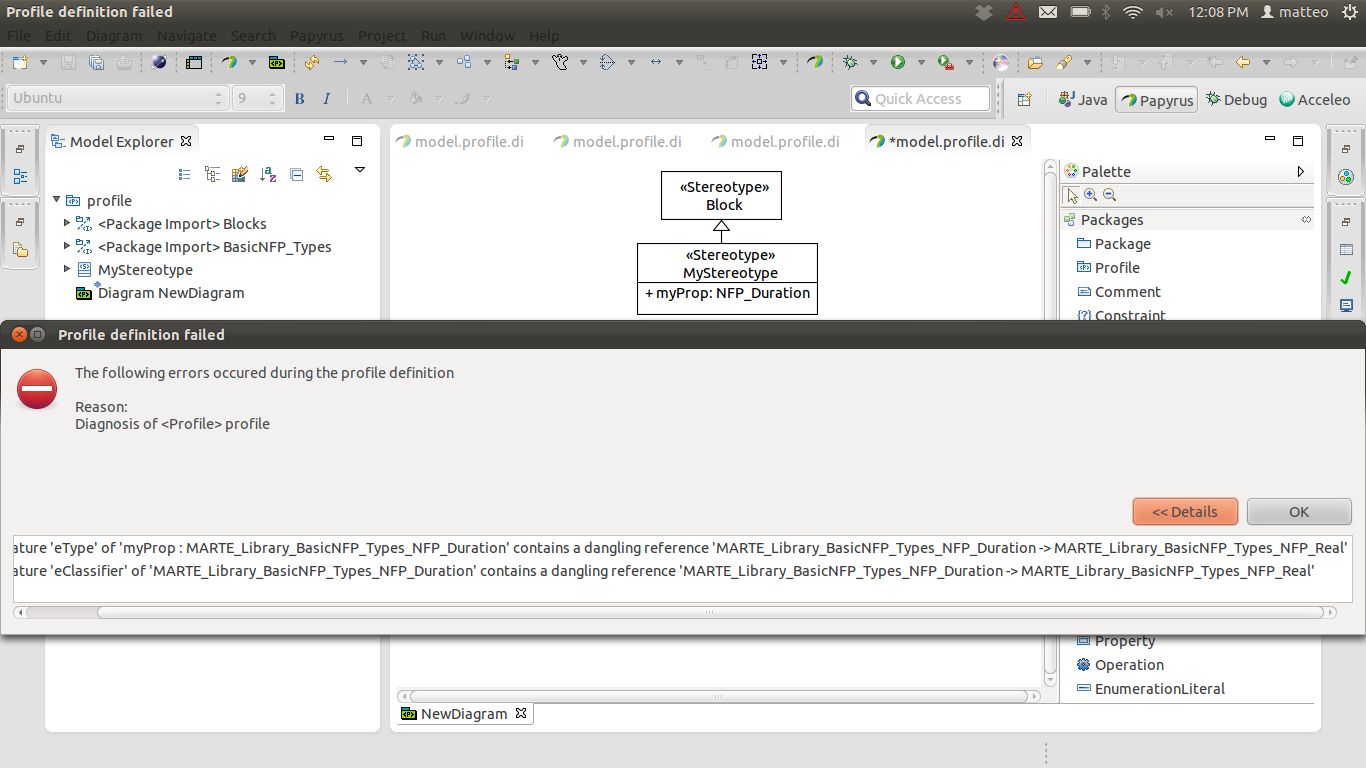

I attached a screenshot of the dialog box that occurs when I try to define a simple profile with a stereotype that has a NFP_Duration property. The profile imports the BasicNFP_Types library from MARTE (for NFP_Duration) and the SysML Blocks profile (for Block, which MyStereotype inherits from).
Suggestions?
Thank you in advance.
--
Matteo
|
|
|
|
|
|
