Save gef diagram or view as xml file [message #1111415]

Wed, 18 September 2013 03:24

Eclipse User

Hello,

Can any one please tell me how to save the gef diagram or view as xml file?

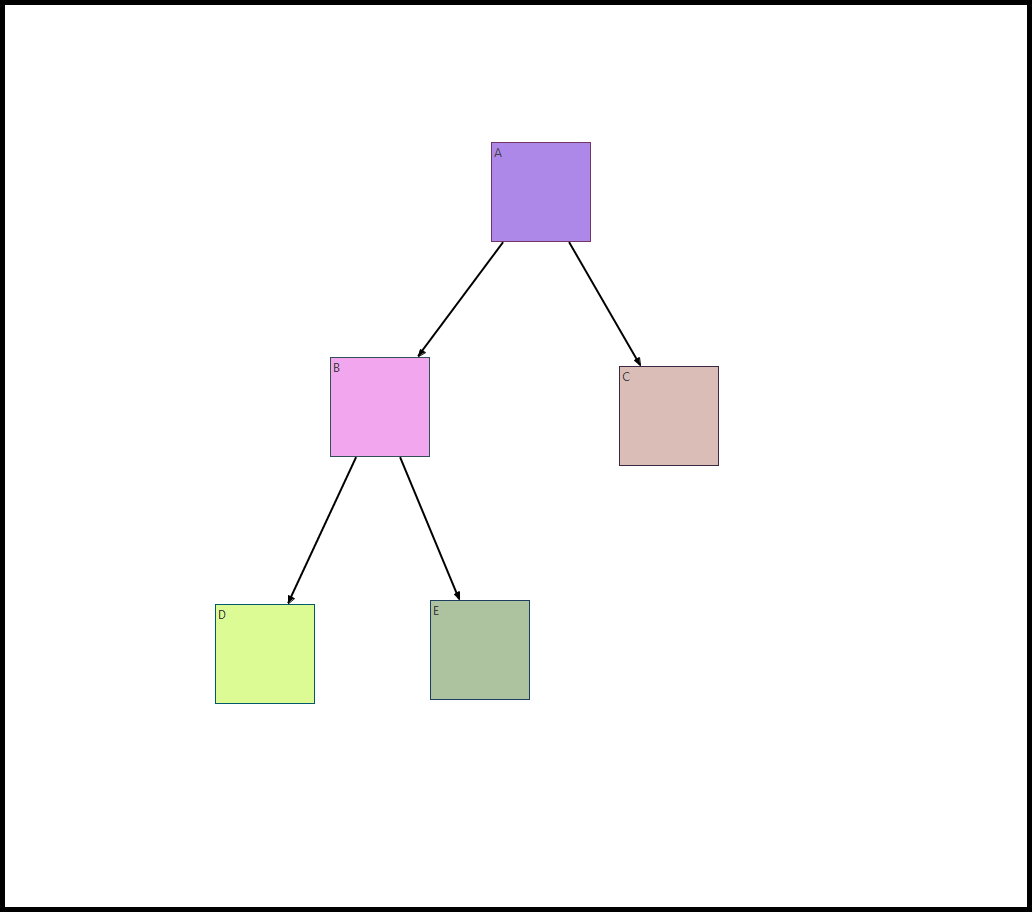

and i have attached gef diagram image file.

Thanks in advance,
vishwa

Attachment: gefdiagram.png
(Size: 11.86KB, Downloaded 356 times)

Re: Save gef diagram or view as xml file [message #1121158 is a reply to message #1111415]

Mon, 30 September 2013 06:30

Eclipse User

Hi, you have to save the model of the editor.

Re: Save gef diagram or view as xml file [message #1132487 is a reply to message #1121158]

Fri, 11 October 2013 03:19

Eclipse User

Hi Vishwa,

You don't need save your diagram into xml, it is enought to save your diagram model GraphicalViewer.setContent(... your model here...).
If the model of your editor is EMF model you can serialize your diagram into XMI format. EMF supports this out of box (take a look at XMIResource class).
But if you have your custom model (some java objects) you need to define custom serialization/deserialization.

Thanks,
Igor

Re: Save gef diagram or view as xml file [message #1220844 is a reply to message #1132487]

Sat, 14 December 2013 02:08

Eclipse User

Hi Vishwa,

I am using xstream for serialize my diagram model into XML format.

http://xstream.codehaus.org/

Xstream can serialze your model to XML and back again.
And you don't need to modify your model.
You save your model GraphicalViewer.setContent(new XStream().toXML(your model here)).

Best regards,
nakag
