Create EMF project using mdl file [message #1051774]

Mon, 29 April 2013 04:05

Eclipse User

Hello,
I would like to know how to make a transformation between mdl file and Ecore file.
I wrote somewhere that it is possible to create a EMF project by using .mdl file but I don't know how to start.
Thanks in advance for your advice.

[Updated on: Mon, 29 April 2013 04:06] by Moderator

Re: Create EMF project using mdl file [message #1051785 is a reply to message #1051774]

Mon, 29 April 2013 04:13

Eclipse User

This tutorial shows how

http://help.eclipse.org/juno/index.jsp?topic=/org.eclipse.emf.doc/tutorials/clibmod/clibmod.html

On 29/04/2013 10:05 AM, Félix SILINOU KAMDEM wrote:
> Hello,
> I would like to know how to make a transformation between mdl file and
> Ecore file.
> I wrote somewhere that it is possible to create a EMF project by using
> .mdl file but I don't know how to start.
> Thanks in advance for your advice.
>

Re: Create EMF project using mdl file [message #1051809 is a reply to message #1051785]

Mon, 29 April 2013 04:44

Eclipse User

thank you

Re: Create EMF project using mdl file [message #1051850 is a reply to message #1051809]

Mon, 29 April 2013 05:32

Eclipse User

By the way, do you know how to convert Ecore file into UML file.
I think that there is a command in the menu "Sample Ecore Editor" but I don't know which one.

Re: Create EMF project using mdl file [message #1051858 is a reply to message #1051850]

Mon, 29 April 2013 05:42

Eclipse User

Félix,

In Generator you can export the model to UML2 if you have UML2 installed.

On 29/04/2013 11:32 AM, Félix SILINOU KAMDEM wrote:
> By the way, do you know how to convert Ecore file into UML file. I
> think that there is a command in the menu "Sample Ecore Editor" but I
> don't know which one.

Re: Create EMF project using mdl file [message #1051931 is a reply to message #1051858]

Mon, 29 April 2013 07:42

Eclipse User

Oh!!! of course.
Thank.

Re: Create EMF project using mdl file [message #1052054 is a reply to message #1051931]

Mon, 29 April 2013 10:59

Eclipse User

Merks,

I followed that tutorial. It's working for the "library.mdl" file they gave but when I'm using my own mdl file, I have got an Error.

You will find attached two pictures: --> one is named EMF_error1.jpg is corresponding for the "gedatamodel.mdl"

--> The other is named EMF_error2.jpg for my own mdl file named "datamodel.mdl".

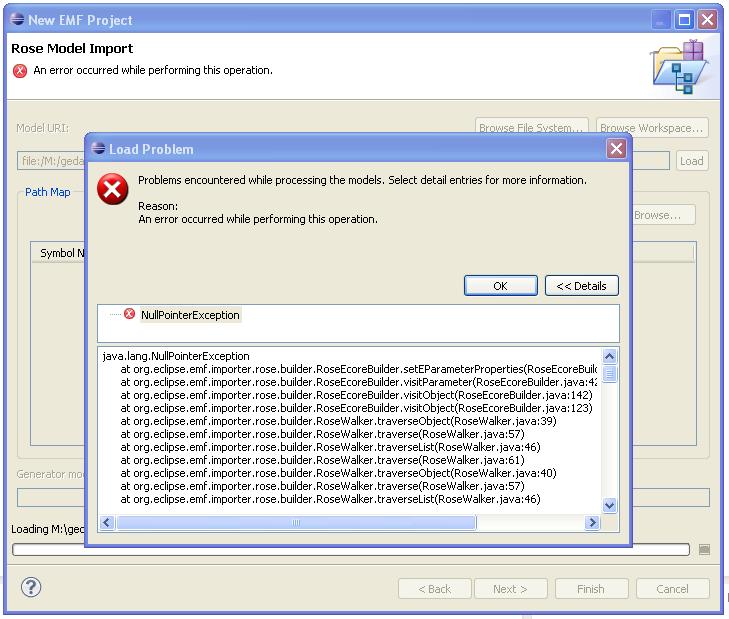

I have a NullPointerException in EMF_Error1.jpg, but that model ("gedatamodel.mdl") is also used with other tools to generate a java and C++ file.

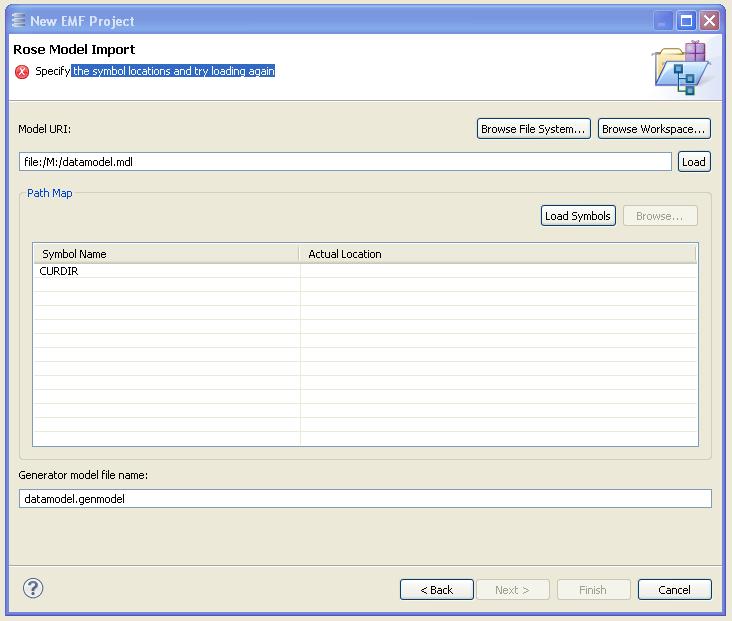

For the datamodel.mdl , they ask me to specify the symbol locations and try loading again. See EMF_ERROR2.jpg

Actually, those models are also used somewhere else without any warming or error. I cannot modify it and I must use it as is.

Attachment: EMF_error1.JPG
(Size: 92.61KB, Downloaded 252 times)
Attachment: EMF_error2.JPG
(Size: 55.80KB, Downloaded 257 times)

[Updated on: Mon, 29 April 2013 11:04] by Moderator

Re: Create EMF project using mdl file [message #1052150 is a reply to message #1052054]

Mon, 29 April 2013 13:57

Eclipse User

Félix,

I don't see any attachments and in any case this old Rose stuff isn't
something we'll support further so if you say you can't change the file
(why not?) and setting paths doesn't solve your problems (that's
generally the cause of problems) then it's just not going to work.

On 29/04/2013 4:59 PM, Félix SILINOU KAMDEM wrote:
> Merks,
>
> I followed that tutorial. It's working for the "library.mdl" file they
> gave but when I'm using my own mdl file, I have got an Error.
>
> You will find attached two pictures:
> one is named EMF_error1.jpg is corresponding for the "gedatamodel.mdl"
>
>
> The other is named EMF_error2.jpg for my own mdl file named
> "datamodel.mdl".
>
>
> I have a NullPointerException in EMF_Error1.jpg, but that model
> ("gedatamodel.mdl") is also used with other tools to generate a java
> and C++ file.
>
> For the datamodel.mdl , they ask me to specify the symbol locations
> and try loading again. See EMF_ERROR2.jpg
>
> Actually, those models are also used somewhere else without any
> warming or error. I cannot modify it and I must use it as is.

Re: Create EMF project using mdl file [message #1052715 is a reply to message #1052150]

Tue, 30 April 2013 08:50

Eclipse User

Merks,

Do you know another method which makes possible transformation between MDL Model to UML Model, please?

Re: Create EMF project using mdl file [message #1052818 is a reply to message #1052715]

Tue, 30 April 2013 11:23

Eclipse User

Félix,

No, Rose really is old fossilized technology...

On 30/04/2013 2:50 PM, Félix SILINOU KAMDEM wrote:
> Merks,
>
> Do you know another method which makes possible transformation between
> MDL Model to UML Model, please?
