Tue, 18 October 2011 10:00

Eclipse User

I embed word document in applet using swt. in that all optiuons are working fine other than print preview option. i create a swt button and assign functionality for print preview

olecs.exec(OLE.OLECMDID_PRINTPREVIEW, OLE.OLECMDEXECOPT_PROMPTUSER, null, null);

but it was not excuted and mean while it didnt gave any exception too.please help me out how to do print preview function in word ole

Re: Swt Print Preview [message #741061 is a reply to message #740431]

Wed, 19 October 2011 02:32

Eclipse User

try this

OleAutomation automation = new OleAutomation(clientSite);

        // looks up the ID for method Select.
        int[] methodIDs = automation.getIDsOfNames(new String[]{"PrintPreview"});
        int methodID = methodIDs[0];

        Variant result = automation.invoke(methodID);
        automation.dispose();

Re: Swt Print Preview [message #741179 is a reply to message #741061]

Wed, 19 October 2011 05:05

Eclipse User

Hi vijay,

Thanks for your help.I tried out. But its not working. the remaining command & all working except print preview. and it gives exception

Error in script part: unknown protocol: javascript

Any idea?

Advance Thanks.

Rajeev

Re: Swt Print Preview [message #741262 is a reply to message #741179]

Wed, 19 October 2011 06:55

Eclipse User

whats different in your code??

This is working for me..

import java.applet.Applet;

import org.eclipse.swt.SWT;
import org.eclipse.swt.events.SelectionEvent;
import org.eclipse.swt.events.SelectionListener;
import org.eclipse.swt.ole.win32.OleAutomation;
import org.eclipse.swt.ole.win32.Variant;
import org.eclipse.swt.widgets.Button;

public class Snippet157 extends Applet {

  org.eclipse.swt.widgets.Display display;

  org.eclipse.swt.widgets.Shell swtParent;

  java.awt.Canvas awtParent;

  public void init() {
    Thread thread = new Thread(new Runnable() {
      public void run() {
        setLayout(new java.awt.GridLayout(1, 1));
        awtParent = new java.awt.Canvas();
        add(awtParent);
        display = new org.eclipse.swt.widgets.Display();
        swtParent = org.eclipse.swt.awt.SWT_AWT.new_Shell(display,
            awtParent);
        swtParent.setLayout(new org.eclipse.swt.layout.FillLayout());
        org.eclipse.swt.ole.win32.OleFrame frame = new org.eclipse.swt.ole.win32.OleFrame(
            swtParent, org.eclipse.swt.SWT.NONE);
        final org.eclipse.swt.ole.win32.OleClientSite site;
        try {
          site = new org.eclipse.swt.ole.win32.OleClientSite(frame,
              org.eclipse.swt.SWT.NONE, "Word.Document");
          Button b = new Button(swtParent, SWT.PUSH);
          b.setText("Print");
          b.addSelectionListener(new SelectionListener() {

			@Override
			public void widgetSelected(SelectionEvent e) {
				OleAutomation automation = new OleAutomation(site);

		          // looks up the ID for method Select.
		          int[] methodIDs = automation.getIDsOfNames(new String[]{"PrintPreview"});
		          int methodID = methodIDs[0];

		          Variant result = automation.invoke(methodID);
		          System.out.println(result != null ? "Successful" : "Failed");
		          System.out.println(result);
		          automation.dispose();
			}

			@Override
			public void widgetDefaultSelected(SelectionEvent e) {
				// TODO Auto-generated method stub

			}
		});

        } catch (org.eclipse.swt.SWTException e) {
          String str = "Create OleClientSite Error" + e.toString();
          System.out.println(str);
          return;
        }
        setSize(500, 500);
        validate();
        site.doVerb(org.eclipse.swt.ole.win32.OLE.OLEIVERB_SHOW);

        while (swtParent != null && !swtParent.isDisposed()) {
          if (!display.readAndDispatch())
            display.sleep();
        }
      }
    });
    thread.start();
  }

  public void stop() {
    if (display != null && !display.isDisposed()) {
      display.syncExec(new Runnable() {
        public void run() {
          if (swtParent != null && !swtParent.isDisposed())
            swtParent.dispose();
          swtParent = null;
          display.dispose();
          display = null;
        }
      });
      remove(awtParent);
      awtParent = null;
    }
  }
}

Re: Swt Print Preview [message #742395 is a reply to message #741262]

Thu, 20 October 2011 08:59

Eclipse User

Hi vijay,

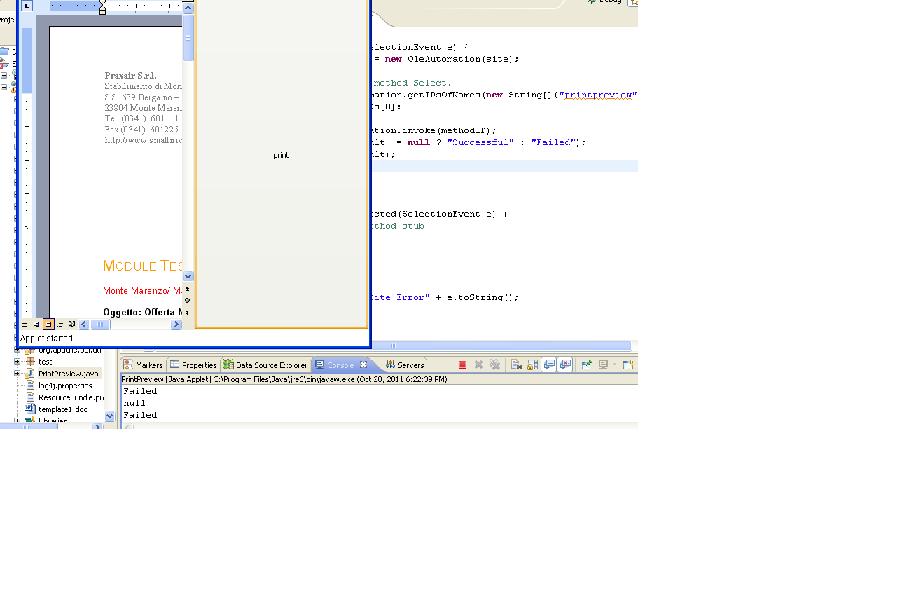

i just copy your code and tested but it will give the result as null. whether i need to import any dependency jar other than jface & swt. i just include the screen shot of error msg.

Thanks.

Attachment: error.JPG
(Size: 44.58KB, Downloaded 298 times)

Re: Swt Print Preview [message #742421 is a reply to message #741262]

Thu, 20 October 2011 09:27

Eclipse User

Hi vijay,

Thanks for your help.your code is working fine in MSWord 2007. but the same code not working for MSWord2003. i dont know why its giving null exception.

Anyways once again Thanks for your grat help.

Re: Swt Print Preview [message #742448 is a reply to message #742421]

Thu, 20 October 2011 09:57

Eclipse User

Try this snippet and find out the exact function
http://www.java2s.com/Code/Java/SWT-JFace-Eclipse/OLEandActiveXexamplesnippet.htm
and then use that function...

Re: Swt Print Preview [message #743033 is a reply to message #742448]

Fri, 21 October 2011 00:06

Eclipse User

By the way ,to avoid all this version problems,u should open your PDF,word etc files in a browser..and from there you could print or print preview them easily.(unless u want word specific handling)

offcoarse there are many preconditions for this to work,but this approach avoids all the version specific handling and then again you already have a precondition of word should be installed on the system.. Smile

[Updated on: Fri, 21 October 2011 01:13] by Moderator
