Evaluate operations defined via OCLinEcore in the interactive console yields OCLinvalid [message #733983]

Thu, 06 October 2011 04:18

Eclipse User

Hi,

I
- downloaded a fresh indigo

- replayed the tutorial help.eclipse.org/indigo/index.jsp?topic=%2Forg.eclipse.ocl.doc%2Fhelp%2FTutorials.html until "Helper Features and Operations" (execute isAvailable() in the OCL interactive console).

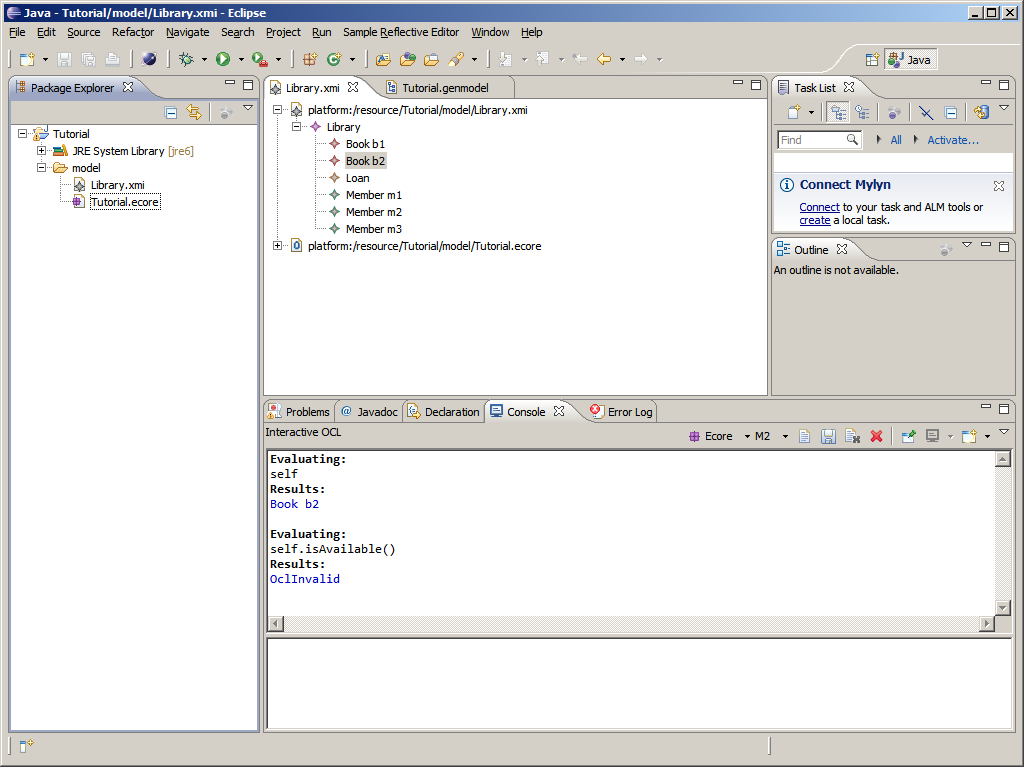

- got the result OCLInvalid as indicated in the screenshot below.

The stacktrace in the errorlog is:

java.lang.NullPointerException
at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.getJavaMethodFor(EcoreEvaluationEnvironment.java:225)
at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.getJavaMethodFor(EcoreEvaluationEnvironment.java:1)
at org.eclipse.ocl.AbstractEvaluationEnvironment.callOperation(AbstractEvaluationEnvironment.java:177)
at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.callOperation(EcoreEvaluationEnvironment.java:164)
at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.callOperation(EcoreEvaluationEnvironment.java:1)
at org.eclipse.ocl.EvaluationVisitorImpl.visitOperationCallExp(EvaluationVisitorImpl.java:208)
at org.eclipse.ocl.ecore.impl.OperationCallExpImpl.accept(OperationCallExpImpl.java:390)
at org.eclipse.ocl.AbstractEvaluationVisitor.visitExpression(AbstractEvaluationVisitor.java:248)
at org.eclipse.ocl.OCL.evaluate(OCL.java:456)

Link to Bugzilla: bugs.eclipse.org/bugs/show_bug.cgi?id=360072

Attachment: Untitled.png
(Size: 62.33KB, Downloaded 308 times)

[Updated on: Thu, 06 October 2011 04:19] by Moderator

Re: Evaluate operations defined via OCLinEcore in the interactive console yields OCLinvalid [message #734593 is a reply to message #733983]

Sat, 08 October 2011 15:48

Eclipse User

Hi

See

https://bugs.eclipse.org/bugs/show_bug.cgi?id=360072

for discussion of problem of using Indigo Pivot/Xtext delegates in the non-Xtext console.

Regards

Ed Willink

On 06/10/2011 09:18, mardo wrote:
> Hi,
>
> I
> - downloaded a fresh indigo
>
> - replayed the tutorial help.eclipse.org/indigo/index.jsp?topic=%2Forg.eclipse.ocl.doc%2Fhelp%2FTutorials.html until "Helper Features and Operations"
>
> - got the result OCLInvalid as indicated in the screenshot below.
>
>
> The stacktrace in the errorlog is:
>
> java.lang.NullPointerException
> at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.getJavaMethodFor(EcoreEvaluationEnvironment.java:225)
> at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.getJavaMethodFor(EcoreEvaluationEnvironment.java:1)
> at org.eclipse.ocl.AbstractEvaluationEnvironment.callOperation(AbstractEvaluationEnvironment.java:177)
> at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.callOperation(EcoreEvaluationEnvironment.java:164)
> at org.eclipse.ocl.ecore.EcoreEvaluationEnvironment.callOperation(EcoreEvaluationEnvironment.java:1)
> at org.eclipse.ocl.EvaluationVisitorImpl.visitOperationCallExp(EvaluationVisitorImpl.java:208)
> at org.eclipse.ocl.ecore.impl.OperationCallExpImpl.accept(OperationCallExpImpl.java:390)
> at org.eclipse.ocl.AbstractEvaluationVisitor.visitExpression(AbstractEvaluationVisitor.java:248)
> at org.eclipse.ocl.OCL.evaluate(OCL.java:456)
>
