Float to text conversion [message #1862657]

Tue, 19 December 2023 12:45

André Soçva

Messages: 83
Registered: November 2023

Member

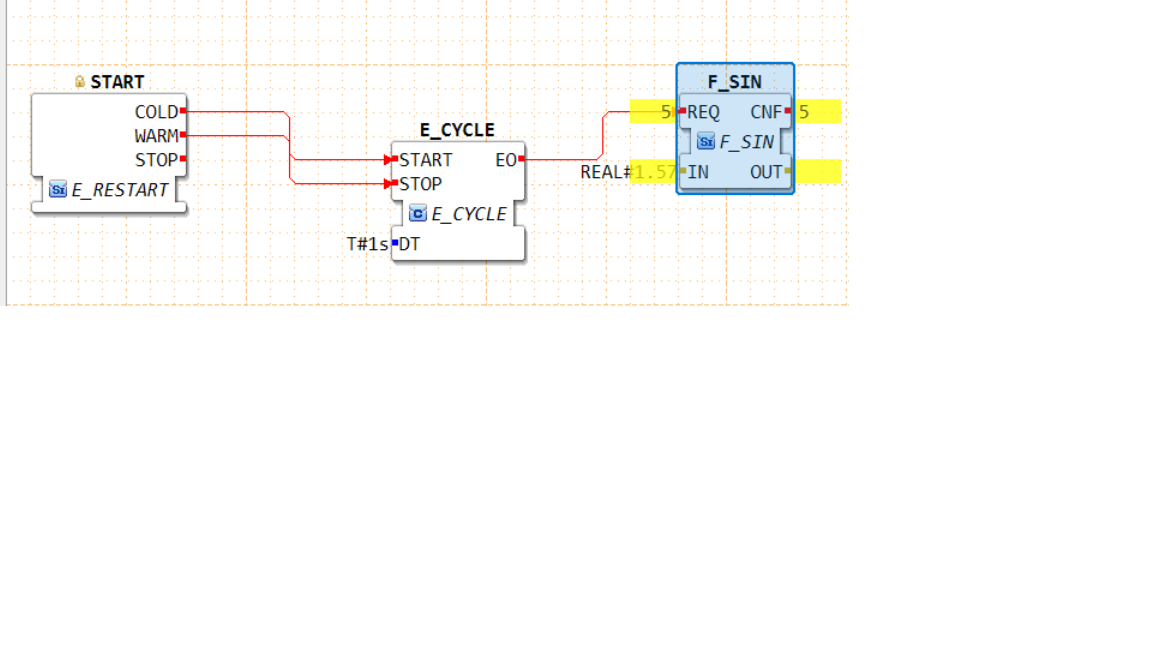

Hello, I'm having problems reading REAL values by the RT1060 microprocessor. I managed to debug and found the values calculated correctly by the block I used, which was a sine block. You can see the correct input and output data in the image. I defined the value 1.57 at the input and the result of the sine of this value is 1. My question is where the conversion of this value to text occurs and how it is sent via TCP/IP communication. Can you tell me where this conversion takes place? Thanks.

Attachment: Sem título.png
(Size: 118.32KB, Downloaded 25 times)

Report message to a moderator

Re: Float to text conversion [message #1862658 is a reply to message #1862657]

Tue, 19 December 2023 12:57

Martin Melik Merkumians

Messages: 117
Registered: March 2016

Senior Member

Hi,

several questions:
What versions of 4diac-IDE and FORTE are you using?

what do you mean with "conversion of this value to text occurs" ? Where are you checking a textual representation of the value? Or to phrase it differently, what is connected to your TCP/IP connection?

Report message to a moderator

Re: Float to text conversion [message #1862659 is a reply to message #1862658]

Tue, 19 December 2023 13:06

André Soçva

Messages: 83
Registered: November 2023

Member

Hello Martin, i'm using 4diac 2.0 and the forte 2.0.
The second question: is in the code, where the values are read and convert to string to send in the TCP.
The third question: when i put the watch in 4diac, the value of the F_SIN is empty. He dont send the value to 4diac.

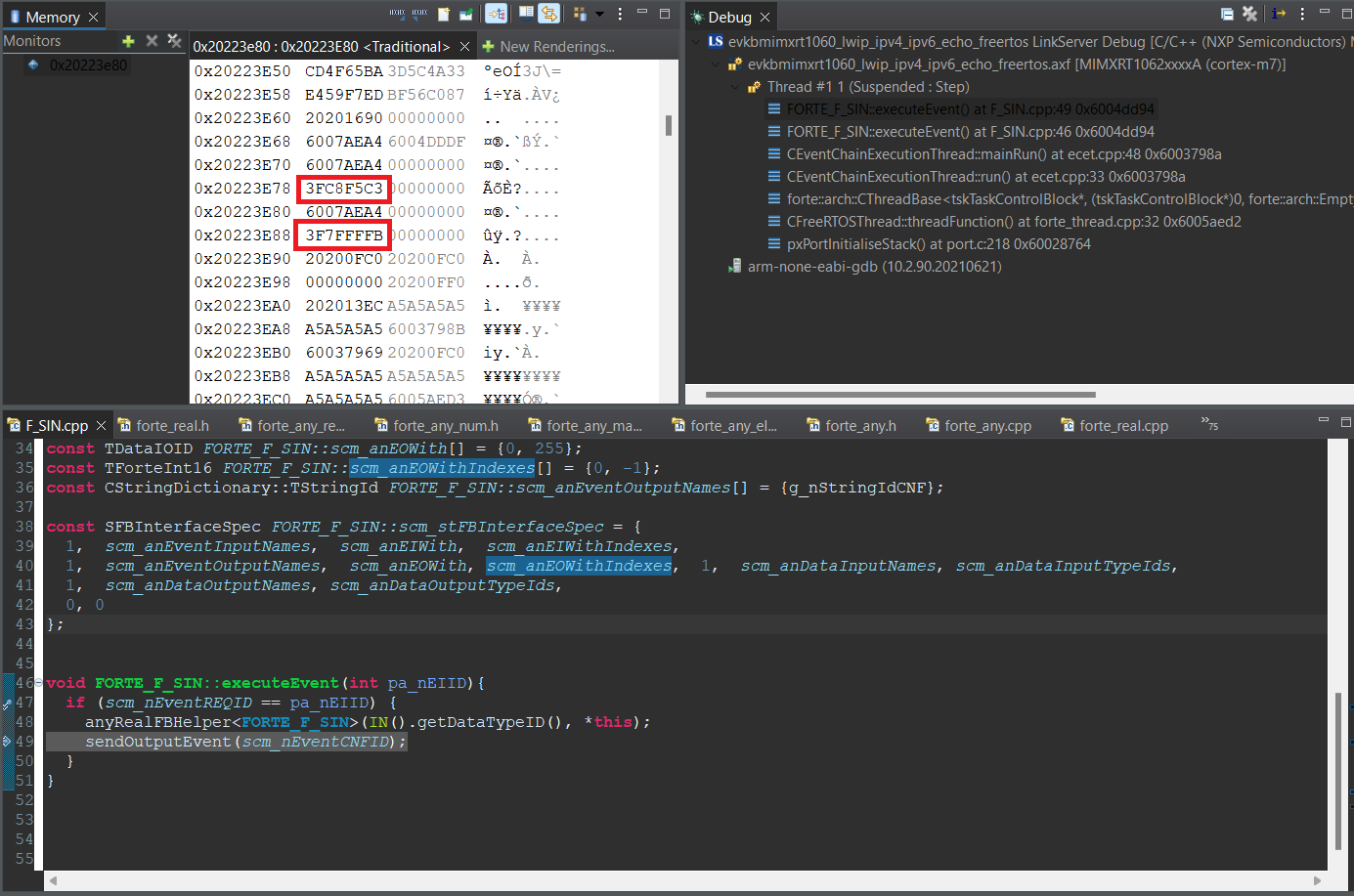

Attachment: Sem título.png
(Size: 52.15KB, Downloaded 16 times)

[Updated on: Tue, 19 December 2023 13:11]

Report message to a moderator

Re: Float to text conversion [message #1862664 is a reply to message #1862659]

Tue, 19 December 2023 18:46

André Soçva

Messages: 83
Registered: November 2023

Member

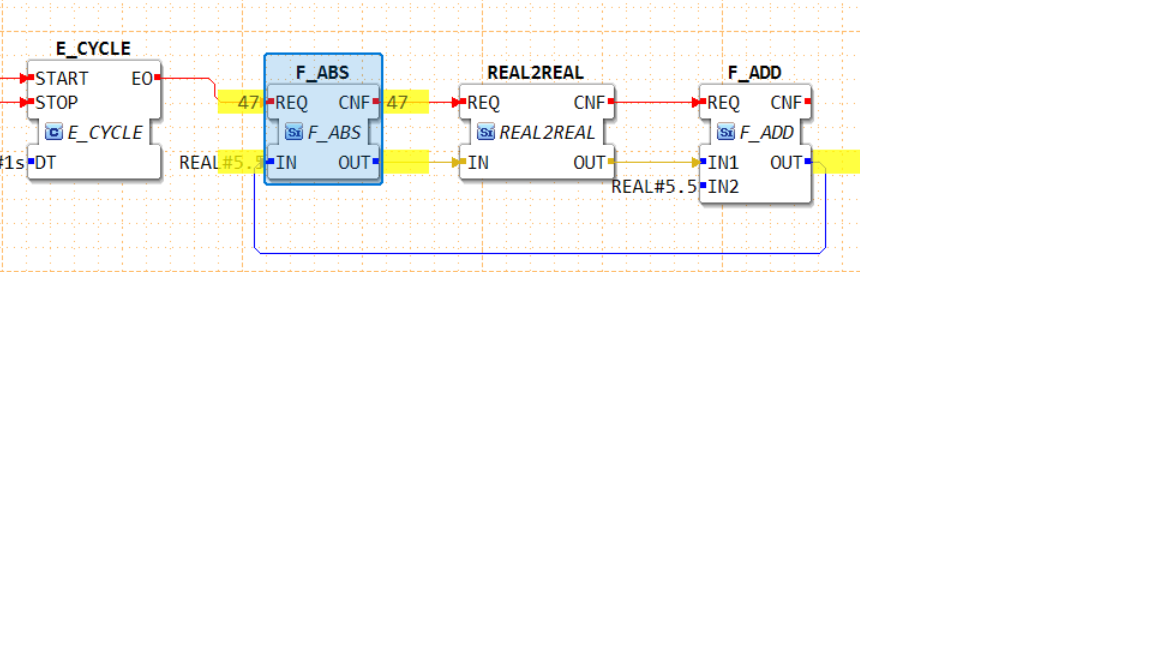

Someone can help me to read REAL values in 4DIAC? I'm usign a RT1060 of NXP. The logic works, when i add two values. But i cant see the values.

Attachment: Sem título.png
(Size: 57.35KB, Downloaded 15 times)

Report message to a moderator

Re: Float to text conversion [message #1862696 is a reply to message #1862664]

Thu, 21 December 2023 12:52

Martin Melik Merkumians

Messages: 117
Registered: March 2016

Senior Member

"is in the code, where the values are read and convert to string to send in the TCP." that does not really answer my question, as you can send the data via TCP e.g via Client/Server blocks, but also monitoring is using TCP

Based on your third answer I assume you are using monitoring to watch the values in the IDE. If that is what you are looking for, then the toString in CIEC_REAL method is what you are looking for.

However, the versions you use are rather old and outdated (I know its the official current release), in the newer versions, toString has been modified and is known to work and has been patched for several reasons.

Perhaps you give the new versions a try first

Report message to a moderator

Re: Float to text conversion [message #1862697 is a reply to message #1862664]

Thu, 21 December 2023 12:52

André Soçva

Messages: 83
Registered: November 2023

Member

Hi, i need help.

Report message to a moderator

Re: Float to text conversion [message #1862706 is a reply to message #1862697]

Thu, 21 December 2023 16:56

Alois Zoitl

Messages: 1585
Registered: January 2014

Senior Member

looking at your screenshots I assume that you are talking about the tcp communication used for Montioring. The strings to be sent here are converted in the to string method of the respective data types. so in your case you need to look into the toSTring method of CIEC_REAL,.
