Home » Archived » Sapphire » show/hide outline elements during runtime
show/hide outline elements during runtime [message #1733979] Thu, 02 June 2016 11:12 Go to next message
Eclipse UserFriend
Hi Konstantin,

can outline-menu-elements be hidden and shown during runtime? The outline-elements to be shown/hidden have no representation in the edited xml-file.

kind regards, reinhart
Re: show/hide outline elements during runtime [message #1733990 is a reply to message #1733979] Thu, 02 June 2016 12:44 Go to previous message
Eclipse UserFriend
You can control visibility of most UI parts, including the outline nodes, by using the "visible when" facility, which takes a Sapphire EL expression. You can find documentation on Sapphire EL in Sapphire Developer Guide.

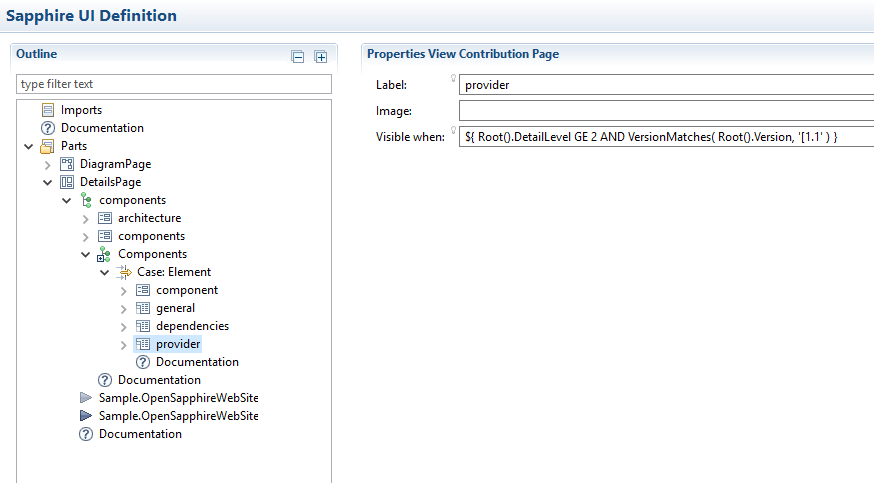

Here is an example from the Architecture Sketch Editor in Sapphire Samples. If you look through samples, you will find other examples of Sapphire EL usage for the visible when and other purposes.

index.php/fa/26053/0/
  • Attachment: Capture.PNG
    (Size: 24.99KB, Downloaded 764 times)
