How to Click on a link under a CTabFolder? [message #1430711]

Wed, 24 September 2014 14:04

Eclipse User

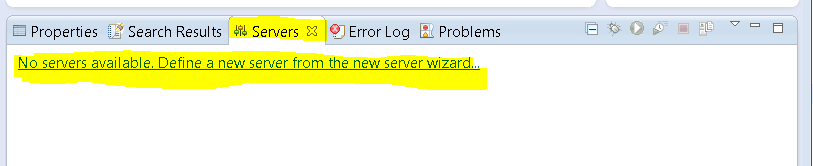

I want to click on the link under a ctabfolder (that is what my spy view says). Then a new dialog window should be open.
OR
How do i right click on the empty space or link under the ctabfolder to get context menu?
I tried every possible way but i think the first issue is it doesn't even recognize the tabfolder.

index.php/fa/19251/0/

Here is my code:

tree = View.getTree("Servers");
link.click();

ERROR
-----------
org.eclipse.swtbot.swt.finder.widgets.TimeoutException: Timeout after: 45000 ms.: The widget TreeItem with text {} was not enabled.
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntil(SWTBotFactory.java:398)
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntil(SWTBotFactory.java:372)
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntil(SWTBotFactory.java:360)
at org.eclipse.swtbot.swt.finder.widgets.AbstractSWTBot.waitForEnabled(AbstractSWTBot.java:635)

how exactly should I write this of kind code in SWTbot?
The online doc does not help me in anyway.
Any help would be appreciated.
Thanks.

Attachment: link.PNG
(Size: 11.14KB, Downloaded 1324 times)

Re: How to Click on a link under a CTabFolder? [message #1433720 is a reply to message #1430711]

Mon, 29 September 2014 03:07

Eclipse User

I don't see a tree under this view...

I'd try
SWTBotView view = bot.viewByTitle("Servers");
view.show();
view.setFocus();
view.bot.link("No server [blah-blah]").click();

--
Mickael Istria
My job: http://www.jboss.org/tools
My blog: http://mickaelistria.wordpress.com
My Tweets: http://twitter.com/mickaelistria

Re: How to Click on a link under a CTabFolder? [message #1434238 is a reply to message #1433720]

Mon, 29 September 2014 17:33

Eclipse User

Thanks Mickael. The code worked till the focus is set on servers.But fails to click the link.It complains that the widget was not found.
Here is the code I have :

SWTBotView view = bot.viewByTitle("Servers");
view.show();
view.setFocus();
view.bot().link("No servers available.Define a new server from the new server wizard...").click();

org.eclipse.swtbot.swt.finder.exceptions.WidgetNotFoundException: Could not find widget.
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntilWidgetAppears(SWTBotFactory.java:348)
at com.ibm.datatools.automation.swtbot.finders.Bot.waitUntilWidgetAppears(Bot.java:1)
at org.eclipse.swtbot.swt.finder.SWTBotFactory.widget(SWTBotFactory.java:308)
at com.ibm.datatools.automation.swtbot.finders.Bot.widget(Bot.java:1)
at org.eclipse.swtbot.swt.finder.SWTBot.link(SWTBot.java:3664)
at com.ibm.datatools.automation.swtbot.finders.Bot.link(Bot.java:1012)
at org.eclipse.swtbot.swt.finder.SWTBot.link(SWTBot.java:3652)
at com.ibm.datatools.automation.swtbot.finders.Bot.link(Bot.java:1007)
at com.ibm.datatools.swtbot.tests.ims.transactionproject.TransactionTasks.createTransactionServer(TransactionTasks.java:330)
at com.ibm.datatools.swtbot.test.ims.common.testcases.TranProj.executeTest(TranProj.java:75)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:76)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:607)
at org.junit.runners.model.FrameworkMethod$1.runReflectiveCall(FrameworkMethod.java:45)
at org.junit.internal.runners.model.ReflectiveCallable.run(ReflectiveCallable.java:15)
at org.junit.runners.model.FrameworkMethod.invokeExplosively(FrameworkMethod.java:42)
at org.junit.internal.runners.statements.InvokeMethod.evaluate(InvokeMethod.java:20)
at org.junit.runners.ParentRunner.runLeaf(ParentRunner.java:263)
at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:68)
at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:47)
at org.junit.runners.ParentRunner$3.run(ParentRunner.java:231)
at org.junit.runners.ParentRunner$1.schedule(ParentRunner.java:60)
at org.junit.runners.ParentRunner.runChildren(ParentRunner.java:229)
at org.junit.runners.ParentRunner.access$000(ParentRunner.java:50)
at org.junit.runners.ParentRunner$2.evaluate(ParentRunner.java:222)
at org.junit.internal.runners.statements.RunBefores.evaluate(RunBefores.java:28)
at org.junit.runners.ParentRunner.run(ParentRunner.java:300)
at org.eclipse.jdt.internal.junit4.runner.JUnit4TestReference.run(JUnit4TestReference.java:50)
at org.eclipse.jdt.internal.junit.runner.TestExecution.run(TestExecution.java:38)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:467)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:683)
at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.run(RemoteTestRunner.java:390)
at org.eclipse.swtbot.eclipse.core.RemotePluginTestRunner.main(RemotePluginTestRunner.java:64)
at org.eclipse.swtbot.eclipse.core.UITestApplication.runTests(UITestApplication.java:117)
at org.eclipse.ui.internal.testing.WorkbenchTestable$1.run(WorkbenchTestable.java:71)
at java.lang.Thread.run(Thread.java:781)
Caused by: org.eclipse.swtbot.swt.finder.widgets.TimeoutException: Timeout after: 45000 ms.: Could not find widget matching: (of type 'Link' and with mnemonic '<a>No servers available.Define a new server from the new server wizard...')
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntil(SWTBotFactory.java:398)
at com.ibm.datatools.automation.swtbot.finders.Bot.waitUntil(Bot.java:1)
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntil(SWTBotFactory.java:372)
at com.ibm.datatools.automation.swtbot.finders.Bot.waitUntil(Bot.java:1)
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntil(SWTBotFactory.java:360)
at com.ibm.datatools.automation.swtbot.finders.Bot.waitUntil(Bot.java:1)
at org.eclipse.swtbot.swt.finder.SWTBotFactory.waitUntilWidgetAppears(SWTBotFactory.java:346)
... 36 more

Re: How to Click on a link under a CTabFolder? [message #1434652 is a reply to message #1434238]

Tue, 30 September 2014 07:59

Eclipse User

On 09/29/2014 11:33 PM, Minnie P wrote:
> view.bot().link("No servers available.Define a new server from the new
> server wizard...").click();

Aren't you missing a space between the first dot and "Define" ?
--
Mickael Istria
My job: http://www.jboss.org/tools
My blog: http://mickaelistria.wordpress.com
My Tweets: http://twitter.com/mickaelistria

Re: How to Click on a link under a CTabFolder? [message #1434962 is a reply to message #1434652]

Tue, 30 September 2014 17:39

Eclipse User

Just the space didnt work but apparently it had some hidden characters which i could see only from a spy view.
This worked.
view.bot().link("<a>No servers available. Define a new server from the new server wizard...</a>").click();

Thanks Mickael again for the help.

[Updated on: Tue, 30 September 2014 18:18] by Moderator
