How to select a TREE item in a TABLE? [message #1421074]

Wed, 10 September 2014 22:48

Minnie P

Messages: 15
Registered: January 2013

Junior Member

Hi,
I have been trying to select this tree item in the the given table and then click on the button on the right.But it complaints saying that my widget was not found.

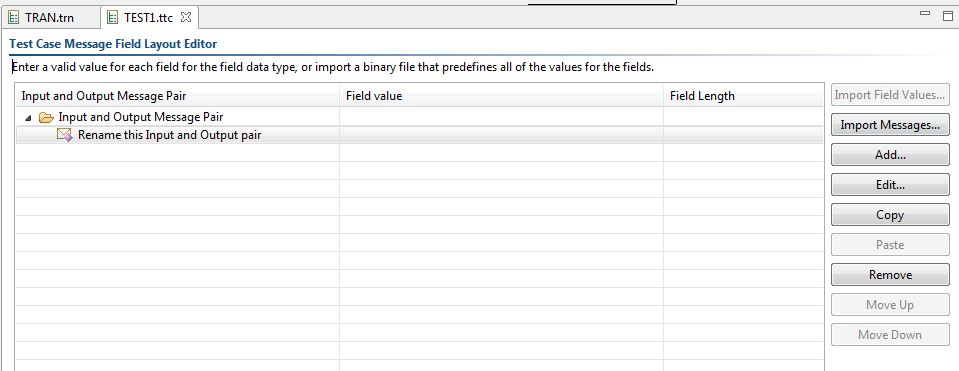

I have attached a screenshot of the editor page.
Please help me on how to code this.

I'm trying to select "Rename this Input and Output Pair" and then click "Import Messages..." button.

index.php/fa/19104/0/

Attachment: TREE TABLE.JPG
(Size: 57.39KB, Downloaded 857 times)

Thanks,
Minnie

Report message to a moderator

Re: How to select a TREE item in a TABLE? [message #1421343 is a reply to message #1421074]

Thu, 11 September 2014 08:36

Benjamin Ratiarisolo

Messages: 16
Registered: January 2010
Location: Paris, France

Junior Member

Hi,

Giving a little bit more of precise contextual information about your issue would help other understanding your problem and provide answers to your question.

For instance:

What did you try?
Provide a concise code snippet illustrating where the WidgetNotFound exception is thrown
When is the WidgetNotFound exception thrown? When selecting the tree item or when retrieving the button?

Cheers,

--
Benjamin Ratiarisolo
IBM ODM Decision Server Rules - Software Developer
IBM Software - France Lab

Report message to a moderator

Re: How to select a TREE item in a TABLE? [message #1421394 is a reply to message #1421074]

Thu, 11 September 2014 10:07

pawan garia

Messages: 39
Registered: February 2013

Member

Hi
You can try this Code, Something like this inthat you have to Select the Tree and then Expand the Tree.

SWTBotTable table=bot.table(TableIndex);
int rowcount=table.rowCount();
for (int i=0;i<rowcount;i++ )
{
if(table.cell(i,"Input and output Message Pair").equalsIgnoreCase("Rename this Input and Output Pair"))
{
table.click(i, columnName);

break;
}
}

Report message to a moderator

Re: How to select a TREE item in a TABLE? [message #1421672 is a reply to message #1421394]

Thu, 11 September 2014 18:18

Minnie P

Messages: 15
Registered: January 2013

Junior Member

Thanks pawan for the code.I will try it out.

@Benjamin here is the code I have used.I get a widget not found right when its trying to get the name of the editor.How do I try to get the focus onto the editor name TEST1.ttc or the tree "Input and Output Message Pair"?

tree = View.getTree(testcaseEditor);
bot.tree().getTreeItem("Input and Output Message Pair").getNode("Rename this Input and Output pair").select();
bot.button("Import Messages...").click();

Thanks,
Minnie

[Updated on: Wed, 01 October 2014 19:02]

Report message to a moderator
