Figure with a compartment [message #180490]

Wed, 02 April 2008 10:47

Eclipse User

Originally posted by: aritz.galdos.iese.fraunhofer.de

Hello everybody!!

I am creating a figure with G

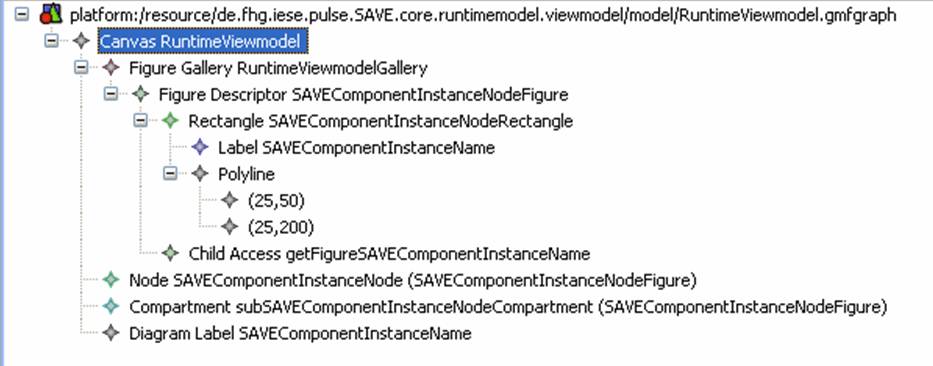

Attachment: gmfgraphFile.jpg
(Size: 44.87KB, Downloaded 155 times)

Re: Figure with a compartment [message #180513 is a reply to message #180490]

Wed, 02 April 2008 11:10

Eclipse User

Hello Aritz,

Try:
1. Adding new RectanlgeFigure for the compartment between Label and Polyline
in SAVEComponentInstanceNodeRectangle.
2. Creating Child accessor in SAVEComponentInstanceNodeFigure referenceing
this Rectangle
3. Modifying "Accessor" property of subSAVEComponentInstanceNodeCompartment
to point to the accessor created on step 2.

-----------------
Alex Shatalin

Re: Figure with a compartment [message #180725 is a reply to message #180513]

Thu, 03 April 2008 07:59

Eclipse User

Originally posted by: aritz.galdos.iese.fraunhofer.de

Thank you very much Alex!!!

We get it!!!!

Aritz

"Alex Shatalin" <vano@borland.com> wrote in message
news:3c3172e6204348ca62fb982111cb@news.eclipse.org...
> Hello Aritz,
>
> Try:
> 1. Adding new RectanlgeFigure for the compartment between Label and
> Polyline in SAVEComponentInstanceNodeRectangle.
> 2. Creating Child accessor in SAVEComponentInstanceNodeFigure referenceing
> this Rectangle
> 3. Modifying "Accessor" property of
> subSAVEComponentInstanceNodeCompartment to point to the accessor created
> on step 2.
>
> -----------------
> Alex Shatalin
>
>
