BIRT 2.0.0 - Web viewer shows blank page? [message #123686]

Fri, 03 February 2006 09:25

Eclipse User

Hello,

Today I installed:

BIRT 2.0.0.under
Eclipse 3.1.1

First I want to say thanks to the devlopers, great product!
I followed the installation including the iText, Axis, etc.

I can develop a BIRT report within Eclipse, I also can use the HTML preview
and the PDF preview out of Eclipse IDE
But the Web Viewer preview opens but only shows blank page without chart.

Do I miss something?

Thanks for any help!

Re: BIRT 2.0.0 - Web viewer shows blank page? [message #123698 is a reply to message #123686]

Fri, 03 February 2006 09:54

Eclipse User

Originally posted by: vladperl.semanticprogrammer.org

Probably you are uisng Firefox. ReportViewer in frameset mode doesn't work
in Firefox.

Re: BIRT 2.0.0 - Web viewer shows blank page? [message #123721 is a reply to message #123698]

Fri, 03 February 2006 09:59

Eclipse User

Hello Vladimir,

no, sorry, I don't use FireFox!

I think I need to isntall the Web-Viewer apllication (Web-Viewer example)
example form the birt-runtime-2_0_0.zip first?

I tried to follow the installation under:
http://www.eclipse.org/birt/phoenix/deploy/viewerSetup.php

But I don't have a directory called:
birt-viewer/plugins/org.eclipse.birt.report.engine.pdf/lib to install the
iText

And I miss further:
/birt.viewer/plugins/org.eclipse.birt.report.viewer/birt/aja x/lib to
Install the prototype.js

So I dont have the directories:

/birt.viewer/plugins/org.eclipse.birt.report.viewer
/birt-viewer/plugins/org.eclipse.birt.report.engine.pdf

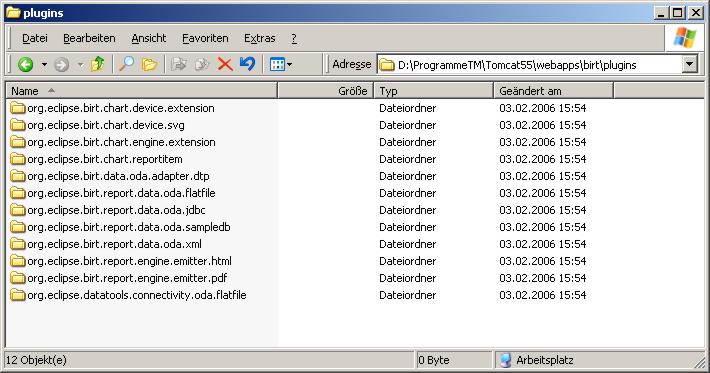

I just have the folders shown in the attachment!

What should I do next? Thanks for further help!

Attachment: birt200.jpg
(Size: 61.67KB, Downloaded 112 times)

Re: BIRT 2.0.0 - Web viewer shows blank page? [message #123788 is a reply to message #123721]

Fri, 03 February 2006 10:35

Eclipse User

Hello,

Now I installed the Web-Viewer successfully but the same result :-(

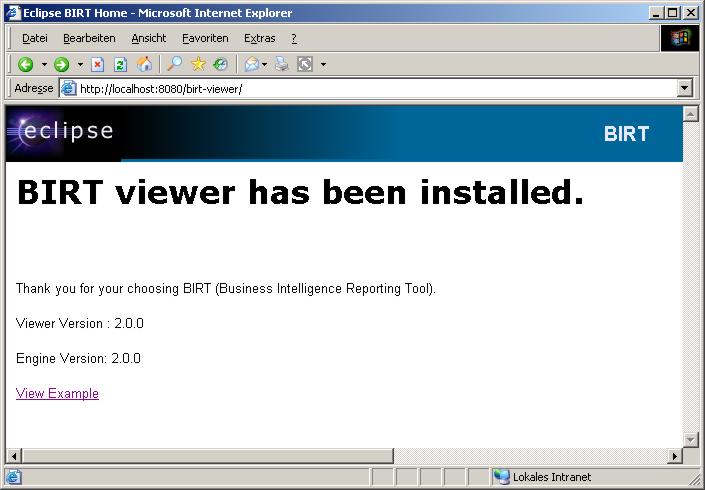

I can access the 1st page oft the BIRT application (see attachment 1.jpg)

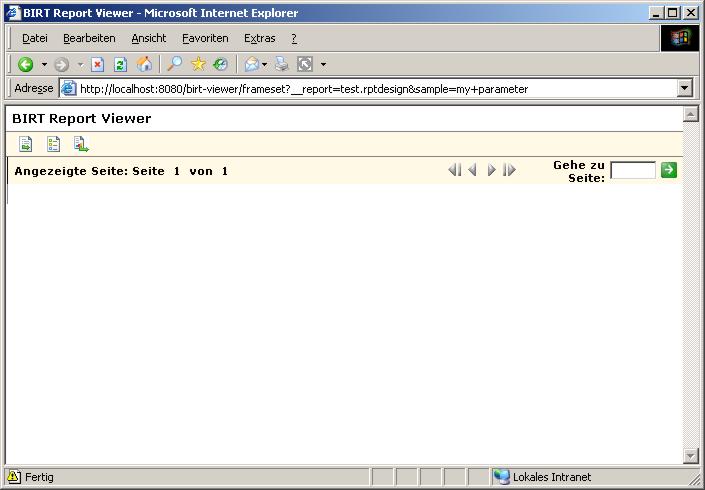

after clicking 'View Example' I get the same blank page (see attachment
2.jpg) as in Eclipse IDE.

What do I miss?

Attachment: 1.jpg
(Size: 48.57KB, Downloaded 112 times)
Attachment: 2.jpg
(Size: 39.32KB, Downloaded 127 times)

Re: BIRT 2.0.0 - Web viewer shows blank page? [message #123815 is a reply to message #123788]

Fri, 03 February 2006 10:53

Eclipse User

There was a typo on the deploy page on where to put the iText jar.
I just changed it.
Verify that under your Webapps/birt directory you have an ajax directory.
under the ajax directory
there should be a lib directory. In the lib directory you should have the
prototype.js file there.
Can you do a screen capture of the WEB-INF/lib directory as well?

Jason

"Mr. Burns" <Mr._Burns@web.de> wrote in message
news:drvt8i$foq$1@utils.eclipse.org...
> Hello,
>
> Now I installed the Web-Viewer successfully but the same result :-(
>
> I can access the 1st page oft the BIRT application (see attachment 1.jpg)
>
> after clicking 'View Example' I get the same blank page (see attachment
> 2.jpg) as in Eclipse IDE.
>
> What do I miss?
>
>
>
>

Re: BIRT 2.0.0 - Web viewer shows blank page? [message #124568 is a reply to message #123815]

Mon, 06 February 2006 02:44

Eclipse User

Hello Jason,

now it works!
If the prototyp.js resides in the .../ajax/lib directory!

Thanks!

Re: BIRT 2.0.0 - Web viewer shows blank page? [message #124593 is a reply to message #124568]

Mon, 06 February 2006 02:56

Eclipse User

Originally posted by: jan.tanis.coas.com

LOL, as stated on the website!

Mr. Burns wrote:
> Hello Jason,
>
> now it works!
> If the prototyp.js resides in the .../ajax/lib directory!
>
> Thanks!
>
>
