Home » Modeling » GMF (Graphical Modeling Framework) » how to get active palette tool name?

how to get active palette tool name? [message #99378]

Wed, 31 January 2007 02:50

Eclipse User

how to get active palette tool name, Such as the name of paletteTool:
"EMPBatchActivity" ?

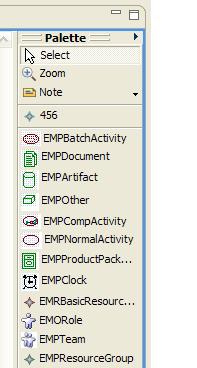

Attachment: paletteTool.JPG
(Size: 15.86KB, Downloaded 102 times)

Re: how to get active palette tool name? [message #99578 is a reply to message #99378]

Wed, 31 January 2007 09:44

Eclipse User

The popup bar on the diagram background is populated with the items from
the palette. Take a look at the code in DiagramPopupBarEditPolicy to
figure out how to get the active palette tool.

I think once you have the PaletteToolEntry you want you can just do
getLabel() on it to get the name.

Regards,
Cherie

bobywolf wrote:
> how to get active palette tool name, Such as the name of paletteTool:
> "EMPBatchActivity" ?
>
>
>

Previous Topic:	Generate GMF diagram for an EMF model
Next Topic:	@Override directive: Eclipse bug or reference error ?
