Edge creation tool not working [message #1750777]

Wed, 28 December 2016 15:54

sonny selhorst

Messages: 60
Registered: May 2015

Member

Hello,

I am doing my master dissertation on developing a tool for modeling Entity-Relationship Diagrams for the University of Ghent with no prior knowledge of modeling, in order to test the usability of Sirius.

It is a rather simple modeling tool that allows you to create 'entities', give them 'attributes' and define 'relationships' between these entities.

I have created an Element Based Edge for the relationships, they work when I define them within the example model. But it's not possible to use the palette to create a relationship.

I included my metamodel, the example model + editing palette and odesign file + properties of my edge creation tool.

index.php/fa/27965/0/

Please consider that I have no prior modeling knowledge, as that is the purpose of my dissertation, so if you can point me to any valuable resources, it will be much appreciated.

I am looking forward to your response.

Thank you.

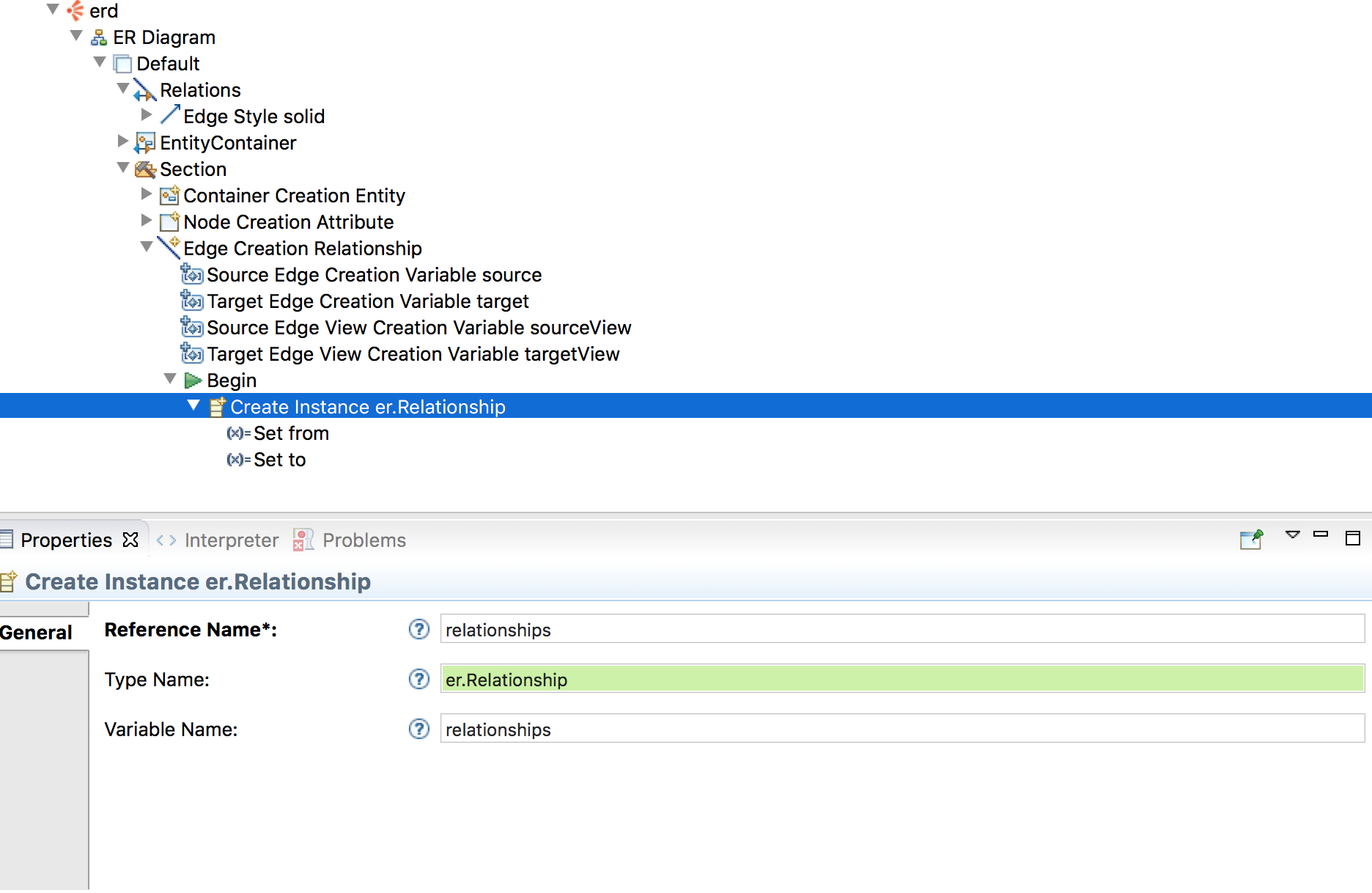

Attachment: er.odesign.png
(Size: 247.68KB, Downloaded 803 times)

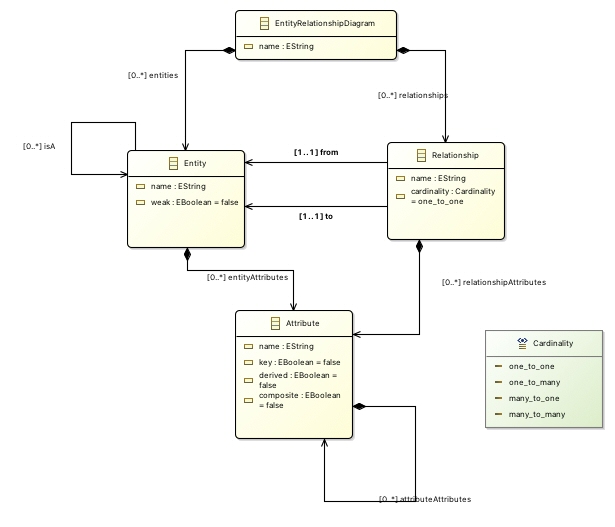

Attachment: er.metamodel.jpg
(Size: 73.25KB, Downloaded 873 times)

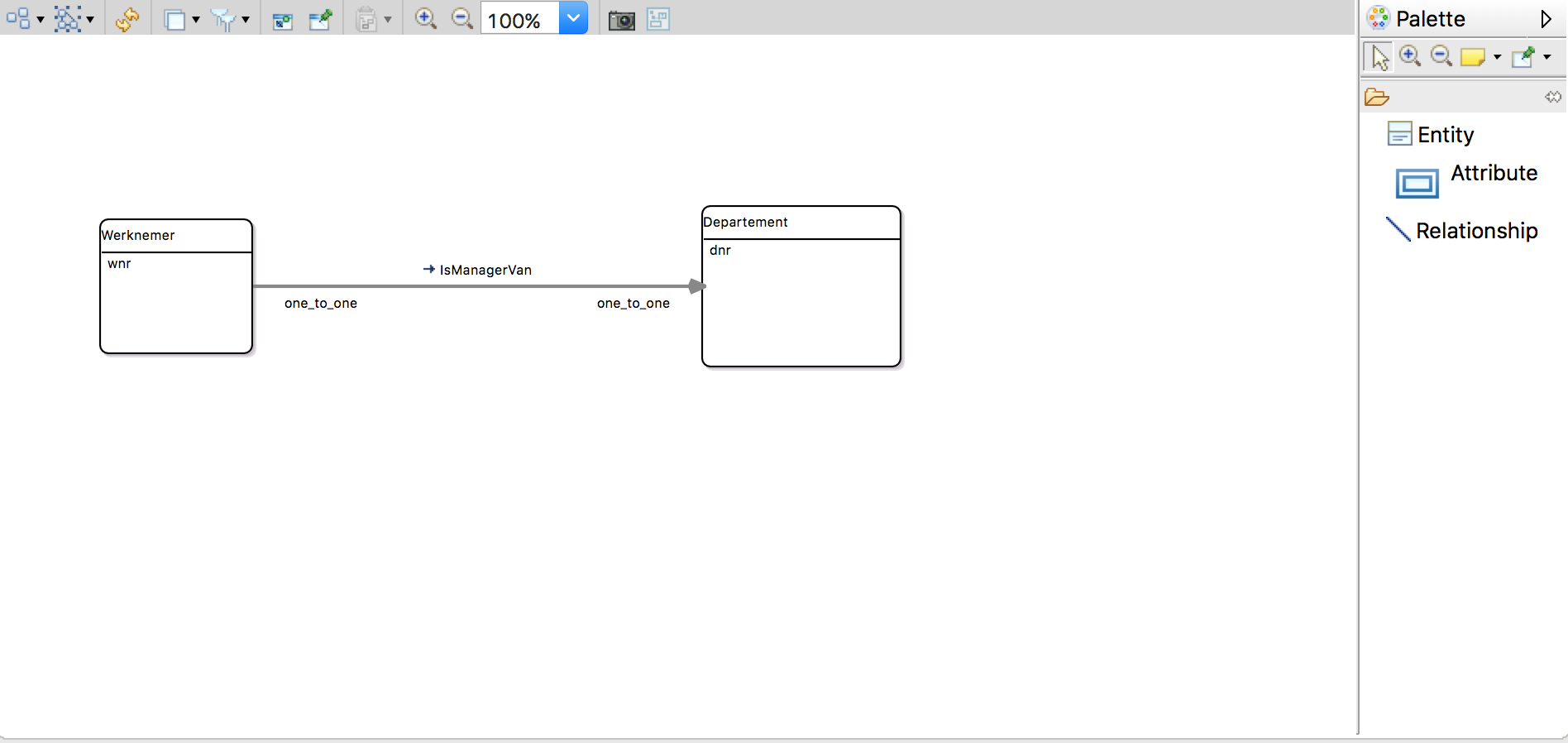

Attachment: er.example.model.png
(Size: 109.91KB, Downloaded 723 times)

Report message to a moderator

Re: Edge creation tool not working [message #1750780 is a reply to message #1750777]

Wed, 28 December 2016 16:21

Pierre-Charles David

Messages: 705
Registered: July 2009

Senior Member

Hi,

From the screenshot it looks like the tool definition is *almost* right, except for one point: as mentioned in the documentation, the operations executed by your tool will start in the context of the semantic element of the source of the new edge. That's where your "Create Instance" operation will be executed, and it will probably be either an Entity or an Attribute. Sirius will try to attach the newly created element in that element, using the "Reference Name" you configured, "relationships". Neither Entity nor Attribute defines such a relationship, so the new instance can not be attached.

The solution is probably just to wrap your "Create Instance" operation inside a "Change Context" which navigates to the enclosing "EntityRelationShip" element first, as this is the one defining the "relationships" containment reference and this is where the new instance must be attached.

Regards,
Pierre-Charles David

Pierre-Charles David - Obeo

Need training or professional services for Sirius?
http://www.obeodesigner.com/sirius

Report message to a moderator

Re: Edge creation tool not working [message #1750878 is a reply to message #1750780]

Fri, 30 December 2016 17:44

sonny selhorst

Messages: 60
Registered: May 2015

Member

Hey,

It worked when I added a "Change Context" with [source.eContainer()/] as Browse Expression.

Thank you very much, and may 2017 be the best year for you!

Kind regards,

Sonny

Report message to a moderator
