Help – Part 1
Contributing a little help
Summary
The Eclipse Platform’s help system defines two extension points (
"toc"
and "contexts"
) that allow individual plug-ins to
contribute online help and context-sensitive help for their components.
In this article we will investigate the "toc"
extension point and how
you can use it to contribute documentation for your plug-in.
By Greg Adams, OTI and Dorian Birsan, IBM
Updated August 9, 2002
Editor's note: This article describes the help system for Eclipse release 2.1,
which differs in minor ways from the previous Eclipse release. If you are working
with Eclipse release 1.0, you should consult the
original version of this article.
Introduction
The Eclipse Platform’s help system allows you to contribute your plug-in’s
online help using the org.eclipse.help.toc extension point. You can either
contribute the online help as part of your code plug-in or provide it
separately in its own documentation plug-in. This separation is beneficial
in those situations where the code and documentation teams are different
groups or where you want to reduce the coupling/dependency between the
documentation and code. The Platform’s help facilities provide you with
the raw building blocks to structure and contribute your help without
dictating the structure or granularity of documentation. The Platform
does however provide and control the integrated help viewers thus ensuring
seamless integration of your documentation.
The org.eclipse.help.toc contribution specifies one or more associated
XML files that contain the structure of your help and its integration with
help contributed by other plug-ins. In the remainder of this article we
will create a documentation plug-in, so by the time your're done you can
browse your own documentation using the Eclipse Help System.
Making the plug-in and content
A content author supplies one or more HTML files containing the actual
documentation. There are no restrictions imposed by the Platform on the
granularity of the HTML files or on their content. We will start by assuming
that you already have some HTML files that you want to integrate into the
Eclipse Platform. Let’s assume your content is arranged into the following
directory tree.
html/
overview.html
concepts/
concept1.html
concept1_1.html
concept1_2.html
tasks/
task1.html
task2.html
task3_1.html
task3_2.html
ref/
ref1.html
ref2.html
Create a plug-in directory called org.eclipse.helparticle and place
the above html/
sub-tree into it. Now create an initial
plugin.xml file with the following content:
<?xml version="1.0"?>
<plugin
name = "Online Help Sample"
id = "org.eclipse.helparticle"
version = "1.0"
provider-name = "Eclipse.org>
</plugin>
To help you get started here is a zip file containing the above initial plug-in structure . This
plug-in manifest file doesn't actually integrate anything yet but soon
we will add our contributions to it.
Topics & HTML Content
Now that we have our sample content files we are ready to create our
toc file. A toc file defines the key entry points into the
HTML content files by defining labeled topics mapped to the individual
HTML files. A toc file acts like a table of contents for a set of HTML content.
Teams migrating onto the Eclipse Platform can quickly reuse existing HTML
documentation by defining entry points into their existing documentation
via the toc file. A plug-in can have one or more toc files. Toc files are
sometimes referred to as navigation files since they describe how to navigate
the HTML content. We have three main content areas, concepts, tasks and reference.
Our obvious choices are one big toc file, or a toc file for each main content
area. Keep in mind this decision is ours to make, and is not a decision
the Platform dictates to us. If we were “really” writing our documentation
we would have a larger number of files so, with that in mind we will try
and keep things manageable by creating a toc file for each of the three
content areas as follows:
toc_Tasks.xml
<toc label="Tasks">
<topic label="Plain Stuff">
<topic label="Task1"
href="html/tasks/task1.html"/>
<topic label="Task2"
href="html/tasks/task2.html"/>
</topic>
<topic label="Fun Stuff" >
<topic label="Task3_1"
href="html/tasks/task3_1.html"/>
<topic label="Task3_2"
href="html/tasks/task3_2.html"/>
</topic>
</toc>
toc_Concepts.xml
<toc label="Concepts">
<topic label="Concept1" href="html/concepts/concept1.html">
<topic label="Concept1_1"
href="html/concepts/concept1_1.html"/>
<topic label="Concept1_2"
href="html/concepts/concept1_2.html"/>
</topic>
</toc>
toc_Ref.xml
<toc label="Refs">
<topic label="Ref1" href="html/ref/ref1.html"/>
<topic label="Ref2" href="html/ref/ref2.html"/>
</toc>
Topics are contributed as part of the <toc>
container element.
A <topic>
can be a simple link to content (e.g. Task1)
or a hierarchical grouping of sub-topics (e.g. Fun Stuff), or both (e.g.
Concept1). When used as a link, the argument to href is assumed to be
relative to the current plug-in. Later we will modify the plugin.xml to
add the actual contributions consisting of these files. Notice that the
hierarchical structure of topics is not the same as the file system structure:
all the "Concepts" topics files in one directory, but the table of contents
nests them differently.
Creating a book
Now that we have our raw content and toc files it’s time to create
our book. A book is just table of contents. In fact, we could make a book
out of each of the three toc files above, but we will treat them as sections
of a larger book instead. So, we will create another toc file that defines
the main sections of the book and will link the three toc files above to
create a larger table of contents (our book).
book.xml
<toc label="Online Help Sample" topic="html/book.html">
<topic label="Overview"
href="html/overview.html"/>
<topic label="Concepts">
<link toc="toc_Concepts.xml"/>
</topic>
<topic label="Tasks">
<link toc="toc_Tasks.xml"/>
</topic>
<topic label="Reference">
<link
toc="toc_Ref.xml"/>
</topic>
</toc>
The Eclipse Platform can display any number of books/tables of contents.
Each table of contents contains a collection of topics. Sometimes a higher-level
component or product team is responsible for weaving together the documentation
and topics supplied by a number of its component teams. For our purposes
we’ll assume that our plug-in should supply both the topics and the book
that integrates the topics. Towards the end of the article we will look
at how to make your documentation plug-in live happily in both a component
world and a product world.
The following figure shows the book called "Online Help Sample" in
the list of all available books.
Finishing our plug-in
The one remaining piece of work is to update our plugin.xml to actually
contribute the toc files that we created. Start with updating the plugin.xml
to contribute our book. The important thing here is to define this table
of contents as a primary <toc>
.
<extension point="org.eclipse.help.toc">
<toc file="book.xml" primary="true"
/>
</extension>
Next we contribute the section toc files, and the important thing
here is that primary is not set, so its default value (false) gets picked
up:
<extension point="org.eclipse.help.toc">
<toc file="toc_Concepts.xml"
/>
<toc file="toc_Tasks.xml" />
<toc file="toc_Ref.xml" />
</extension>
That’s it, you’re done. Now take your plug-in (click here for a zip file of the final plug-in) and drop it
into the Platform’s plugins directory, start Eclipse and choose

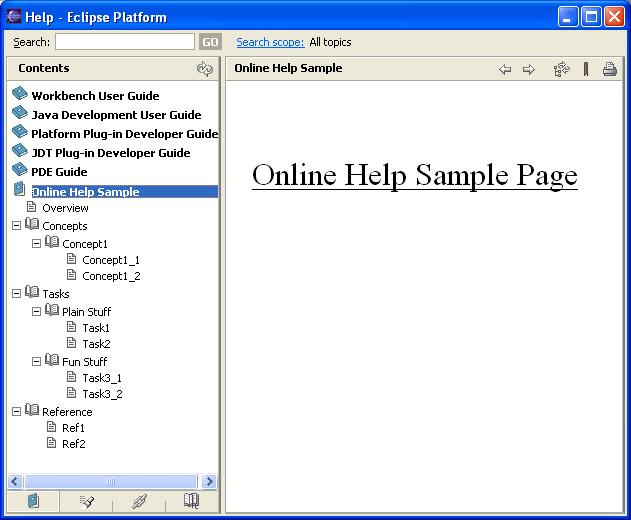

Help -> Help Contents. Once you select the Online Help Sample and expand
the topics you will see the following.
Before we continue a brief recap is in order:
- We started by creating our plug-in and document
files.
- Next we created toc files to describe the structure/navigation
of our content.
- We then created the toc file for the book and linked
the other toc files as sections of the book.
- Finally we contributed all the files in the
plugin.xml in the org.eclipse.help.toc extension point.
Integration of Tables of Contents
In our example we defined four tables of contents, of which
one was viewed as the book, the other three as sections of the book. Since
the book is aware of what sections to link we call this a top-down integration.
It is possible to do it the other way around, i.e. bottom-up integration,
where the sections specify which book (or section) to link to. A table of
contents indicates its willingness to allow others to link to by providing
anchors (<anchor id=..."/>) at the desired linking points.
Most often a plug-in defines a primary table of contents to which other plug-ins
integrate their own table of contents. Tables of contents that are not primary
or are not (directly or indirectly) integrated into other primary tables of
contents are discarded from the final help navigation.
Linking is specified by using the fully qualified reference to a table of
contents, such as
- top-down: <link toc="../the_other_plugin_id/path/to/toc.xml"
/> or
- bottom-up: <toc link_to="../the_other_plugin_id/path/to/toc.xml#anchor_id"/>
Since the participating tables of contents are sometimes located in other
plug-ins, and these plug-ins may not be installed, it is possible that some
tables of contents remain unintegrated.
What if we expect our plug-in will sometimes be installed by itself, and
in other cases it will be installed as part of a larger component or product.
When deploying a free floating plug-in we want to ensure that our book is
visible. When topics from a plug-in are integrated into a larger web it
probably doesn’t make sense for their standalone book to show up anymore.
To support this nonintegrated or loosely integrated documentation, a plug-in
can define a table of contents as a book by setting its primary
attribute to true (inside plugin.xml) and having a link_to attribute
pointing to the desired anchor in the larger web. This has the effect of the
table of contents appearing as a book when the plug-in defining the anchor
is not installed, and appearing as a section of the target book when the plug-in
defining the anchor is installed.
Localization
Plugin manifest files externalize their strings by replacing the string
with a key (e.g. %pluginName) and creating an entry in the plugin.properties
file of the form:
pluginName = “Online Help Sample
Plugin”
Strings from the contribution XML files and the topic HTML files are not
externalized. The toc XML files and the HTML documentation must be translated
and packaged in the appropriate NL directory structure or in an NL fragment,
making sure files do not change their names. The NL directory structure
inside a plug-in is
myplugin/
nl/
langCode/
countryCode/
Here is how the plug-in with Japanese documentation is packaged (note: the files are not translated,
just packaged in the appropriate location).
Server and zip files
The Platform utilizes its own help server to provide the
actual web pages from within the document web. A help server
allows the Platform to handle the wide variety of web browsers in a browser
independent way while also providing plug-in aware support. The Platform's
help server allows the documentation to also be packaged in zip files
thus avoiding problems that may result when a large number of files are
present. In our example, we put the HTML files in subdirectories of the plug-in directory.
Alternatively, we could have placed them in a .zip file, called doc.zip, in the plug-in directory,
maintaining the directory structure underneath. In general, the recommended way is to actually zip all the documentation.
Here is how the plug-in is packaged.
Conclusions
We have seen how we can use the tables of contents to declare books
the user can see. We then used the linking mechanism to integrate our topics.
The Platform’s mechanisms can be used to integrate new documentation, or
to quickly wire in existing HTML based documentation without rewriting
it. The mechanisms allow you to create multiple different views/books onto
your documentation web. In our plug-in we only created a single book but
additional books could easily be created. Lastly, we observed that the Platform
provides the building blocks for documentation integration, provides minimal packaging guidelines,
and lets the documentation authors have full control over structuring their HTML files.
