|Class diagram - intanceSpecification - Superclass [message #886811]
||Fri, 15 June 2012 17:09
| Daniel Kaminski de Souza
Registered: June 2012
Location: Curitiba PR Brazil
I'm using papyrus 0.9.0.v201206061005 inside eclipse juno 4.2.0 I20120531-1500|

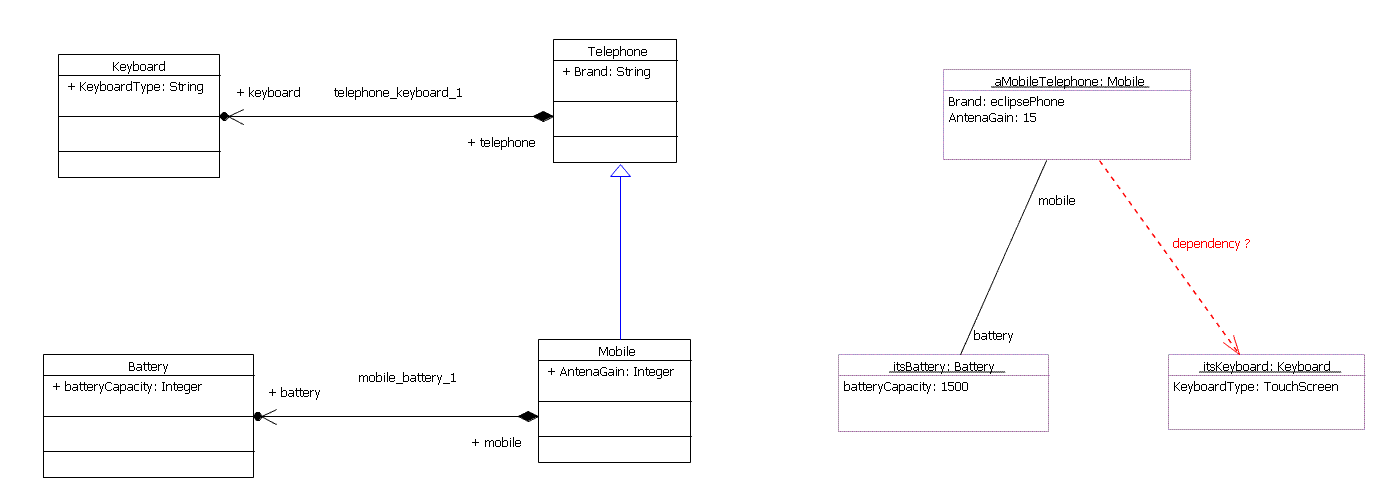

I created the following Class Diagram:
It has on the left chain, A superclass named Telephone with composite Keyboard.
And mobile class with composite class Battery.
The mobile class is a Telephone, that's why the blue generalization is drawn.
The right side I left for the definition of the instances.
I want now to define one instance of the class Mobile.
To do so, I have also to define its composite instances.
Specifying the Battery composite instance was straight forward, connected by an instance specification link to its parent instance aMobileTelephone.
For the Keyboard instance, I wasn't able to connect it using an instance specification link to its parent instance aMobileTelephone.
Instead, just to represent my intention, I've drawn a dependency link in red.
[Updated on: Wed, 01 August 2012 12:10]
