Rotated axis labels in Windows [message #855041] Tue, 24 April 2012 09:28 Go to next message
Eclipse UserFriend
Hi there,

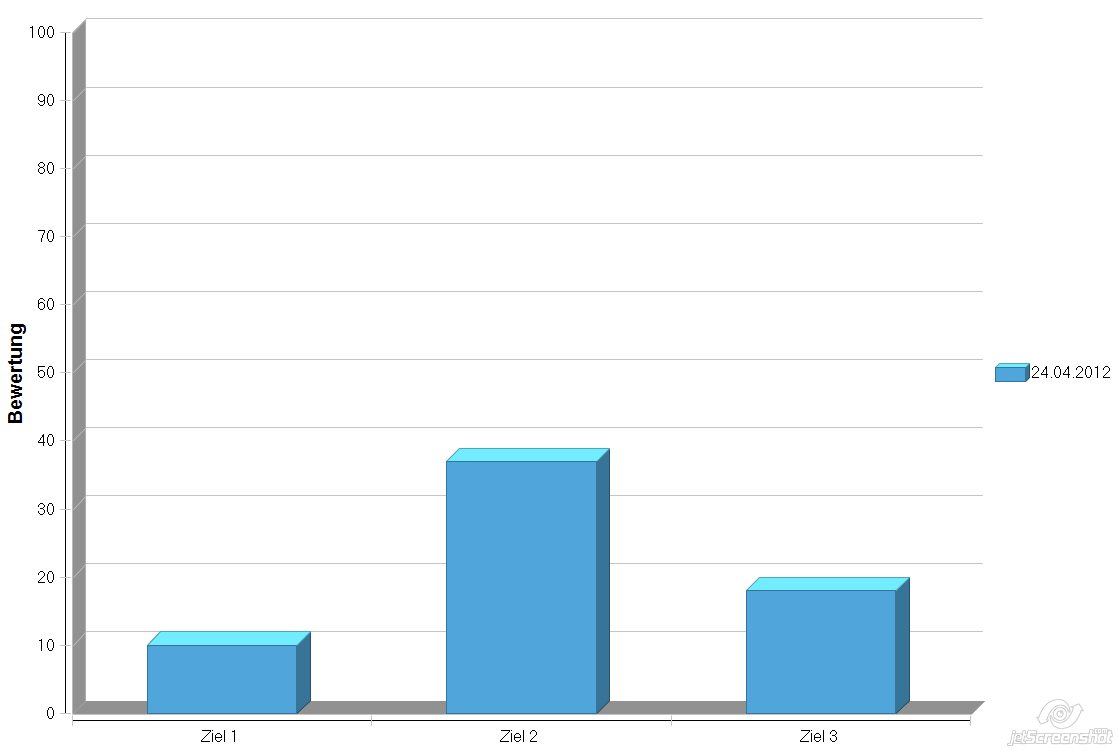

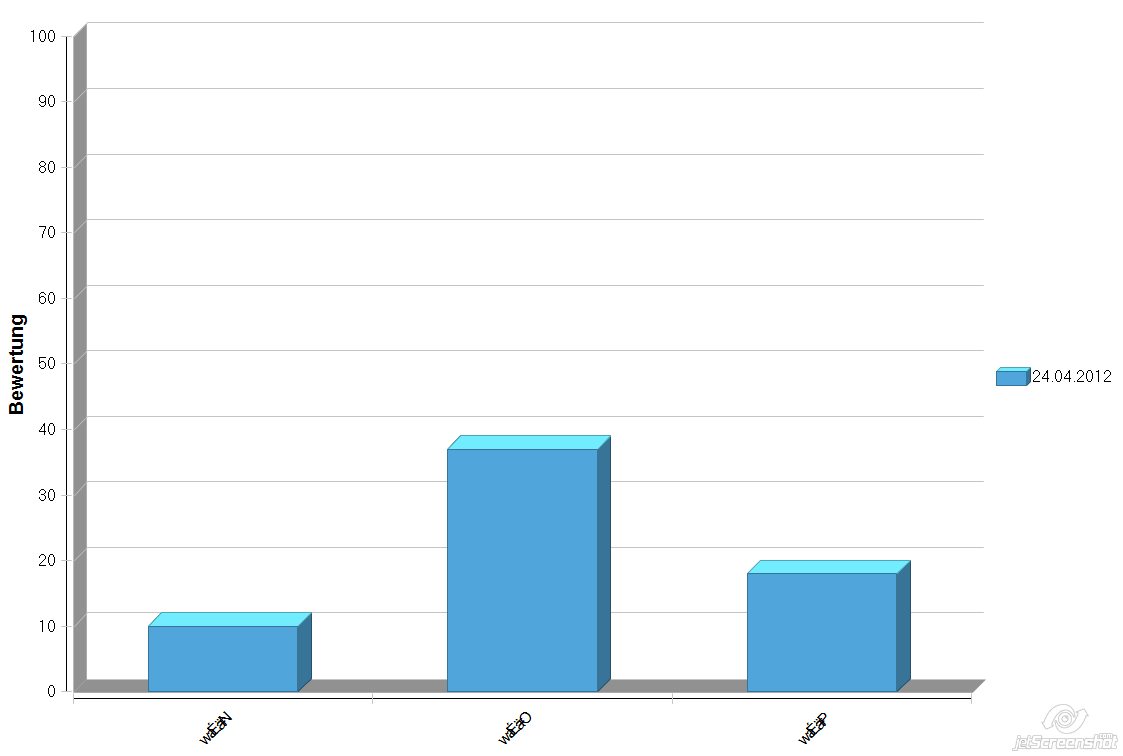

I came accross a strange problem. I'm developing an RCP application, which draws a bar chart using the BIRT chartengine. But when I try to rotate the xAxis Labels by 45 degree it displays just garbage under Windows. I've attached two screenshots. Both screenshot use the same data and same birt version.
I just added
xAxis.getLabel().getCaption().getFont().setRotation(45);

to rotate the label.

The same code works fine under linux and macosx. Anyone got any suggestions what I'm doing wrong?

Regards
Jens

index.php/fa/8063/0/
index.php/fa/8064/0/
Re: Rotated axis labels in Windows [message #855187 is a reply to message #855041] Tue, 24 April 2012 11:37 Go to previous messageGo to next message
Eclipse UserFriend
Is this the same issue?
https://bugs.eclipse.org/bugs/show_bug.cgi?id=273975

BTW what output format are you using for the chart?

Jason

On 4/24/2012 9:28 AM, Jens öcke wrote:
> Hi there,
>
> I came accross a strange problem. I'm developing an RCP application, which draws a bar chart using the BIRT chartengine. But when I try to rotate the xAxis Labels by 45 degree it displays just garbage under Windows. I've attached two screenshots. Both screenshot use the same data and same birt version.
> I just added
> xAxis.getLabel().getCaption().getFont().setRotation(45);
> to rotate the label.
>
> The same code works fine under linux and macosx. Anyone got any suggestions what I'm doing wrong?
>
> Regards
> Jens
>
>
>
Re: Rotated axis labels in Windows [message #855970 is a reply to message #855187] Wed, 25 April 2012 04:49 Go to previous messageGo to next message
Eclipse UserFriend
I don't think it is the same issue.

I'm rendering direkt to a swt canvas.

Jens
Re: Rotated axis labels in Windows [message #856392 is a reply to message #855970] Wed, 25 April 2012 12:09 Go to previous messageGo to next message
Eclipse UserFriend
Do you have a sample app that I could run that shows the issue?

Jason

On 4/25/2012 4:49 AM, Jens öcke wrote:
> I don't think it is the same issue.
>
> I'm rendering direkt to a swt canvas.
>
> Jens
Re: Rotated axis labels in Windows [message #856607 is a reply to message #856392] Wed, 25 April 2012 16:42 Go to previous messageGo to next message
Eclipse UserFriend
Hi,

I've attached a simple App. It opens a simple Shell and displays a chart. Running on MacOS the bottom Labels are shown. Running on Windows (tested as standalone app, not run from inside eclipse) the bottom labels are just garbage.

Jens

Jason Weathersby wrote on Wed, 25 April 2012 12:09
Do you have a sample app that I could run that shows the issue?

Jason

On 4/25/2012 4:49 AM, Jens öcke wrote:
> I don't think it is the same issue.
>
> I'm rendering direkt to a swt canvas.
>
> Jens
  • Attachment: TestSrc.zip
    (Size: 61.97KB, Downloaded 275 times)
Re: Rotated axis labels in Windows [message #857637 is a reply to message #856607] Thu, 26 April 2012 14:27 Go to previous messageGo to next message
Eclipse UserFriend
Can you try adding the font name like:
xAxis.getLabel().getCaption().getFont().setName("Arial");

Jason

On 4/25/2012 4:43 PM, Jens Köcke wrote:
> Hi,
>
> I've attached a simple App. It opens a simple Shell and displays a chart. Running on MacOS the bottom Labels are shown. Running on Windows (tested as standalone app, not run from inside eclipse) the bottom labels are just garbage.
>
> Jens
>
> Jason Weathersby wrote on Wed, 25 April 2012 12:09
>> Do you have a sample app that I could run that shows the issue?
>>
>> Jason
>>
>> On 4/25/2012 4:49 AM, Jens öcke wrote:
>>> I don't think it is the same issue.
>>>
>>> I'm rendering direkt to a swt canvas.
>>>
>>> Jens
>
>
Re: Rotated axis labels in Windows [message #857688 is a reply to message #857637] Thu, 26 April 2012 15:24 Go to previous messageGo to next message
Eclipse UserFriend
Hi,

Jason Weathersby wrote on Thu, 26 April 2012 14:27
Can you try adding the font name like:
xAxis.getLabel().getCaption().getFont().setName("Arial");


Thanks! It worked. Is it expected behavior? Did I miss something in the docs?

Regards,
Jens
Re: Rotated axis labels in Windows [message #857692 is a reply to message #857688] Thu, 26 April 2012 15:29 Go to previous messageGo to next message
Eclipse UserFriend
No I think this may be a bug with fonts. It would be good if you could
put a bugzilla entry in and put the resolution as well.

Jason

On 4/26/2012 3:24 PM, Jens Köcke wrote:
> Hi,
>
> Jason Weathersby wrote on Thu, 26 April 2012 14:27
>> Can you try adding the font name like:
>> xAxis.getLabel().getCaption().getFont().setName("Arial");
>
>
> Thanks! It worked. Is it expected behavior? Did I miss something in the
> docs?
>
> Regards,
> Jens
>
>
Re: Rotated axis labels in Windows [message #857710 is a reply to message #857692] Thu, 26 April 2012 15:50 Go to previous message
Eclipse UserFriend
Hi Jason,

Jason Weathersby wrote on Thu, 26 April 2012 15:29
No I think this may be a bug with fonts. It would be good if you could
put a bugzilla entry in and put the resolution as well.


I filed the Bug 377825 - Rotated Axis labels get garbled on windows.

Unfortunately I can't post a link. Wink

Jens
